Texas Instruments 5 PWM Controller, 100 kHz 14V 16-Pin, MDIP

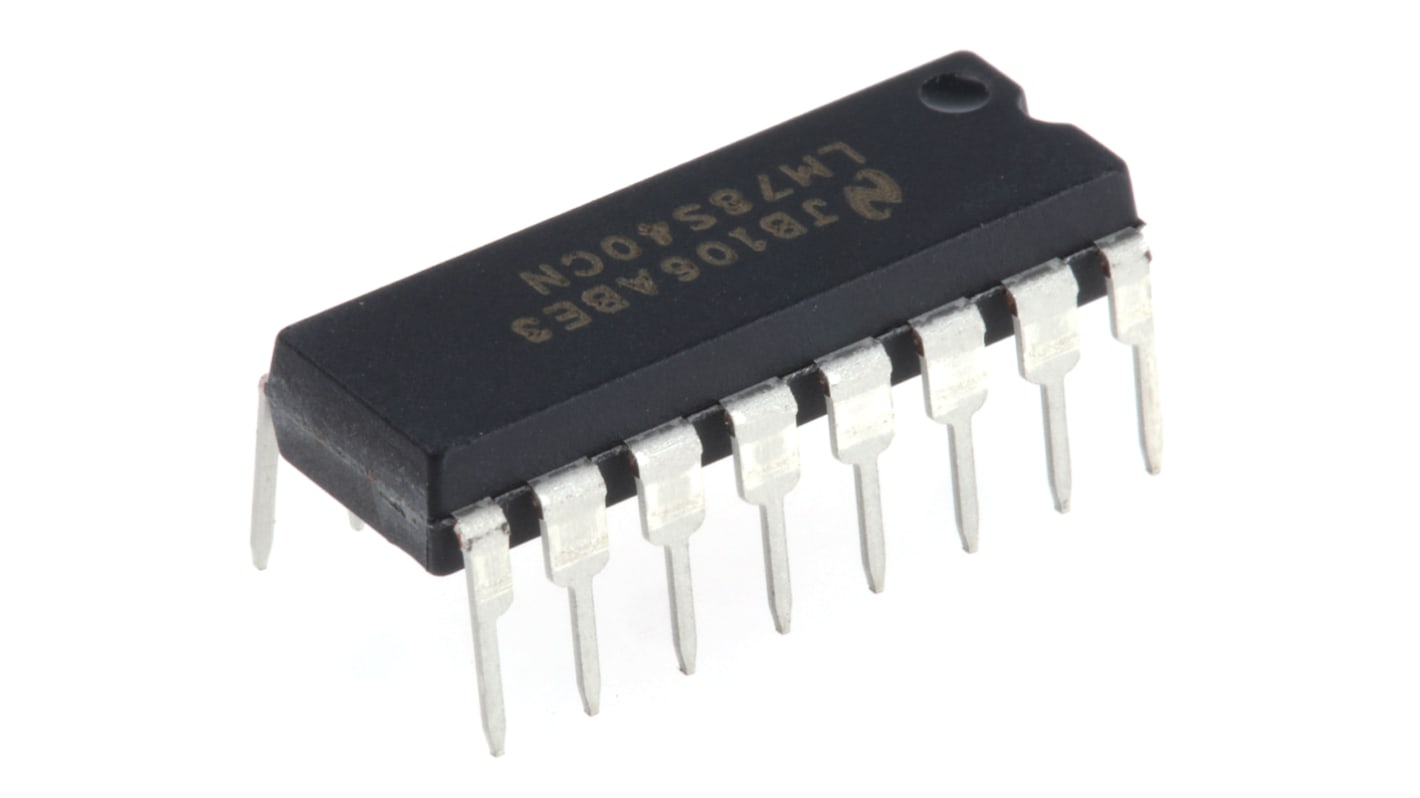

This image is representative of the product range

View all PWM
Bulk discount available

Subtotal (1 tube of 25 units)*

SGD59.70

(exc. GST)

SGD65.075

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 175 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tube*
25 - 50SGD2.388SGD59.70
75 - 100SGD2.298SGD57.45
125 +SGD2.155SGD53.88

*price indicative

RS Stock No.:
100-0725
Mfr. Part No.:
LM78S40CN/NOPB
Manufacturer:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Switching Frequency

100kHz

Product Type

PWM Controller

Start-up Supply Current

1.8mA

Supply Current

1.8mA

Output Current

1.2A

Zero Power Detection

No

Mount Type

Through Hole

Package Type

MDIP

Minimum Supply Voltage

2.7V

Topology

Buck

Maximum Supply Voltage

14V

Pin Count

16

Maximum Duty Cycle

88%

Minimum Operating Temperature

0°C

PWM Controller Type

Voltage Mode

Maximum Operating Temperature

70°C

Length

19.05mm

Series

LM

Height

3.3mm

Standards/Approvals

No

Automotive Standard

No

Step-Down DC/DC Converters (Integrated Switch) over 35V Input Max., Texas Instruments


DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments


The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
