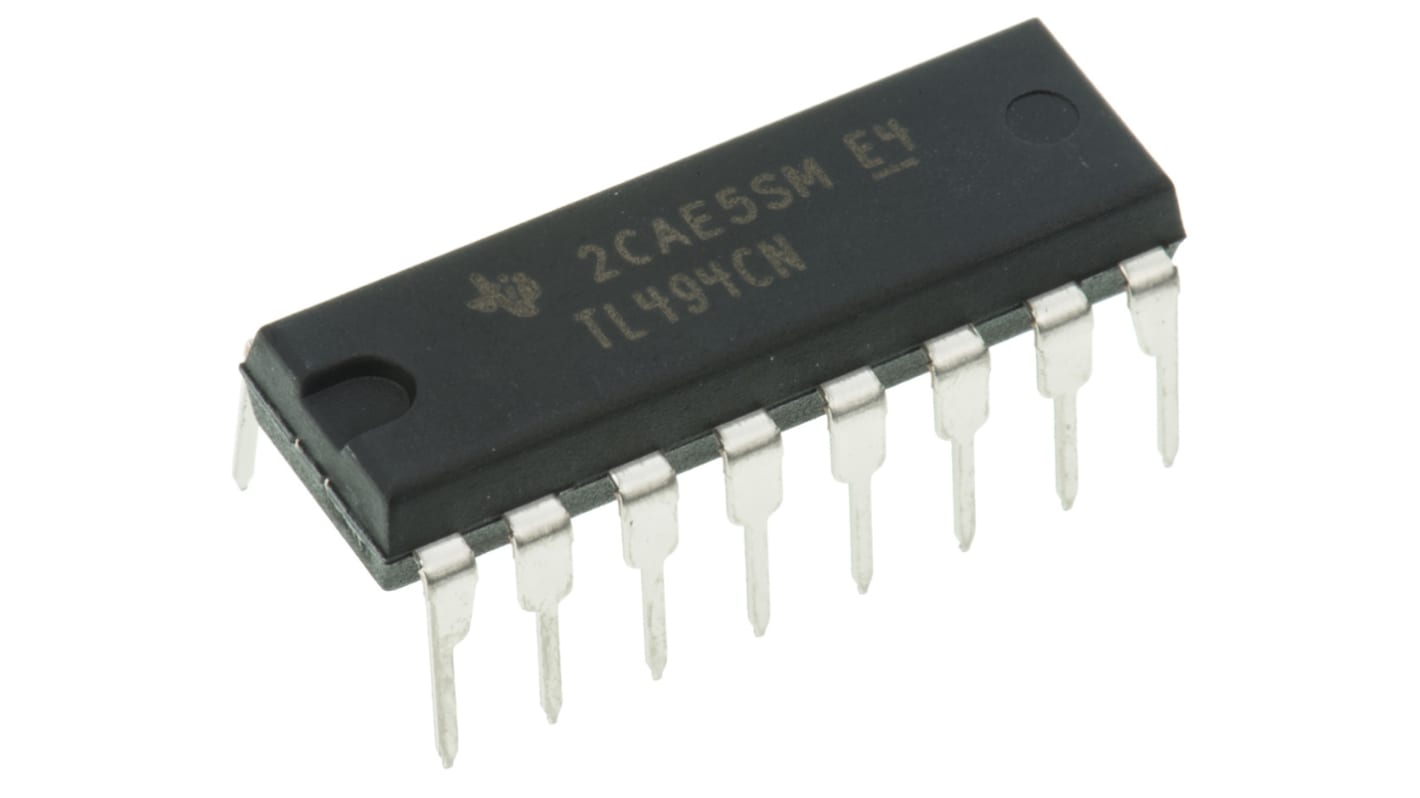

Texas Instruments TL494CN 5 PWM Controller, 300 kHz 40 V 16-Pin, PDIP
- RS Stock No.:
- 528-123
- Mfr. Part No.:
- TL494CN
- Manufacturer:
- Texas Instruments
Bulk discount available
Subtotal (1 tube of 25 units)*
SGD12.20
(exc. GST)
SGD13.30
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- Plus 425 unit(s) shipping from 02 March 2026
- Plus 2,825 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 25 | SGD0.488 | SGD12.20 |
| 50 - 100 | SGD0.476 | SGD11.90 |
| 125 - 225 | SGD0.465 | SGD11.63 |
| 250 - 1225 | SGD0.454 | SGD11.35 |
| 1250 + | SGD0.442 | SGD11.05 |
*price indicative
- RS Stock No.:
- 528-123
- Mfr. Part No.:
- TL494CN
- Manufacturer:
- Texas Instruments
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | PWM Controller | |
| Maximum Switching Frequency | 300kHz | |
| Supply Current | 7.5mA | |
| Output Voltage | 40 V | |
| Output Current | 200mA | |
| Zero Power Detection | No | |
| Number of Outputs | 5 | |
| Mount Type | Through Hole | |
| Minimum Supply Voltage | 7V | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 40V | |
| Topology | Flyback | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| PWM Controller Type | Switching Regulator | |
| Series | TL49 | |
| Length | 19.3mm | |
| Height | 4.57mm | |
| Standards/Approvals | No | |
| Width | 6.35 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type PWM Controller | ||
Maximum Switching Frequency 300kHz | ||
Supply Current 7.5mA | ||
Output Voltage 40 V | ||
Output Current 200mA | ||
Zero Power Detection No | ||
Number of Outputs 5 | ||
Mount Type Through Hole | ||
Minimum Supply Voltage 7V | ||
Package Type PDIP | ||
Pin Count 16 | ||
Maximum Supply Voltage 40V | ||
Topology Flyback | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
PWM Controller Type Switching Regulator | ||
Series TL49 | ||
Length 19.3mm | ||
Height 4.57mm | ||
Standards/Approvals No | ||
Width 6.35 mm | ||
Automotive Standard No | ||
PWM Controllers 300kHz to 400kHz, Texas Instruments
From Texas Instruments, a range of Pulse Width Modulation controllers and associated devices to suit a variety of applications and specifications.
