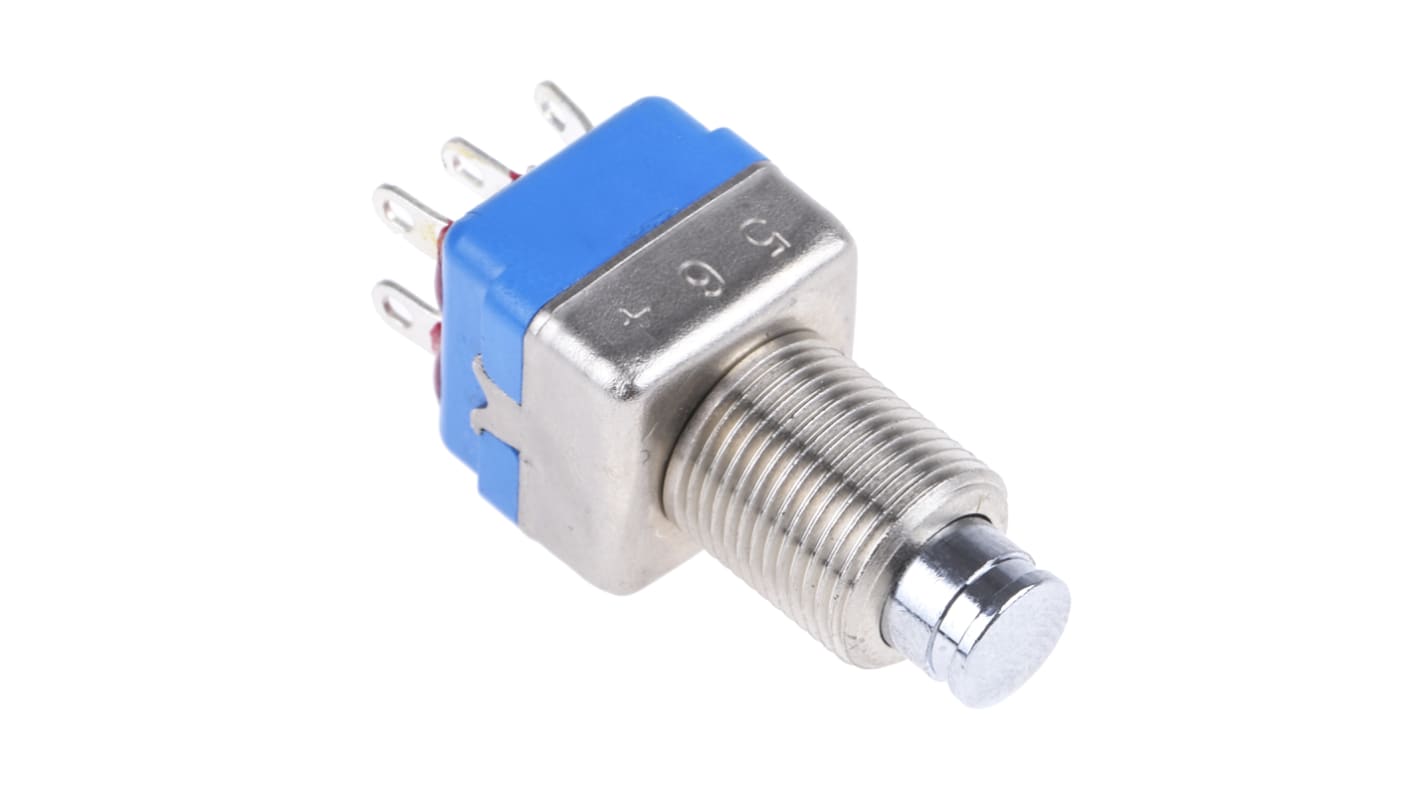

APEM 10400 Series Push Button Switch, Momentary, Panel Mount, 10.2 mm Cutout, DPDT, 24 V dc

View all Push Button Switches
Bulk discount available

Subtotal (1 unit)*

SGD34.68

(exc. GST)

SGD37.80

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 398 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 49SGD34.68
50 - 99SGD33.95
100 - 249SGD32.94
250 - 499SGD32.13
500 +SGD31.42

*price indicative

RS Stock No.:
236-9553
Mfr. Part No.:
104450003
Manufacturer:
APEM
Find similar products by selecting one or more attributes.
Select all

Brand

APEM

Switch Operation

Momentary

Product Type

Push Button Switch

Actuator Colour

Silver

Illuminated

No

Series

10400

Panel Cutout Size

10.2 mm

Mount Type

Panel Mount

Contact Configuration

DPDT

Terminal Type

Solder

Contact DC Voltage

24V dc

Minimum Operating Temperature

-40°C

Switch Configuration

On-Mom

Maximum Operating Temperature

85°C

Switch Contact Current

3 A

Standards/Approvals

RoHS

COO (Country of Origin):
FR

10400 Series Push-buttons, 10mm


From Apem, this momentary push-button switch is available as Single Pole Double Throw (see stock no: 236-9547) or Double Pole Double Throw (see stock no: 236-9553).

With solder lug terminals sealed into the switch by epoxy resin, this compact panel mount switch is designed with convenient installation in mind. The 10400 series momentary switch has a small metal actuator can be covered with interchangeable coloured plastic caps, available separately.

• Terminations sealed with epoxy resin

• 10mmø panel cut out

• 13mmø button caps available separately

• Contact Rating-A: 2; 3 A

• Contact Rating-V: 220 Vac; 24 Vdc

• Contact Resistance: 0.01 Ohm

• Dielectric Strength: 2000 V

• Operating Temperature Range: -40 → +85 C

• Solder Lug Terminals
