Select all	Attribute	Value
	Brand	3M
	Product Type	PCB Socket
	Number of Contacts	36
	Number of Rows	1
	Sub Type	Board Mount
	Pitch	2.54mm
	Current	12A
	Housing Material	Glass Filled Polyester
	Termination Type	Solder
	Mount Type	Through Hole
	Orientation	Straight
	Voltage	1.5 kV
	Series	929
	Row Pitch	2.54mm
	Minimum Operating Temperature	-40°C
	Contact Plating	Nickel
	Contact Material	Copper
	Maximum Operating Temperature	105°C
	Contact Gender	Female
	Standards/Approvals	No

	Select all
	Brand 3M
	Product Type PCB Socket
	Number of Contacts 36
	Number of Rows 1
	Sub Type Board Mount
	Pitch 2.54mm
	Current 12A
	Housing Material Glass Filled Polyester
	Termination Type Solder
	Mount Type Through Hole
	Orientation Straight
	Voltage 1.5 kV
	Series 929
	Row Pitch 2.54mm
	Minimum Operating Temperature -40°C
	Contact Plating Nickel
	Contact Material Copper
	Maximum Operating Temperature 105°C
	Contact Gender Female
	Standards/Approvals No

Non Compliant

The 929 Series of 3M™ Pin Stripe Headers and sockets will provide high reliability and durability. All models are stackable

and will include solder stand-offs to facilitate production wave soldering.

All headers have an insulation material of Glass Filled Polyester (PBT) or High Temperature PCT and come with a

current rating of 2.5A, The Sockets will come with a current rating of 1A

Copper Alloy Contact

Black in Colour

Headers: 36 Way

Sockets: 2 Way to 36 Way

Flammability: UL 94V-0

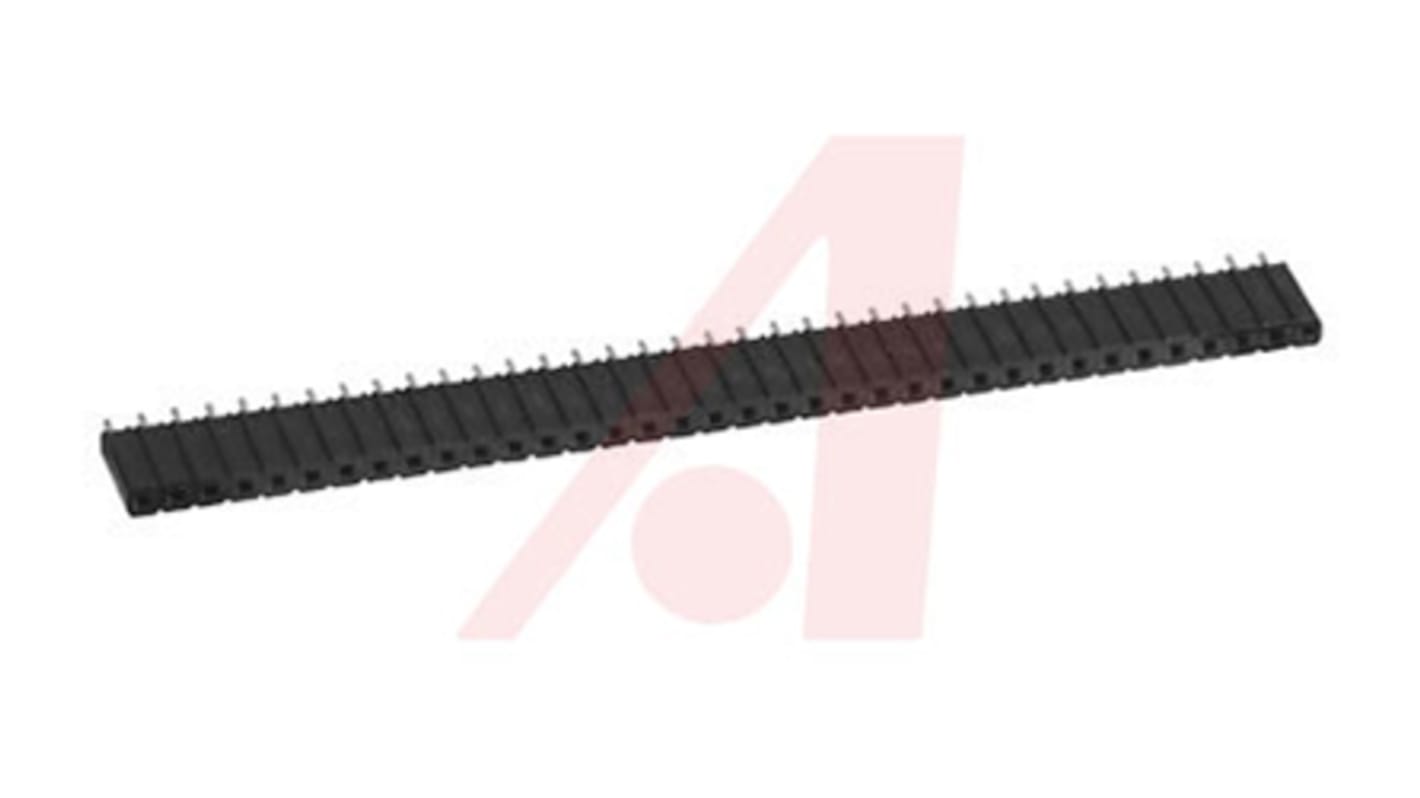

3M 929 Series Straight Through Hole PCB Socket, 36-Contact, 1 Row, 2.54 mm Pitch Solder
