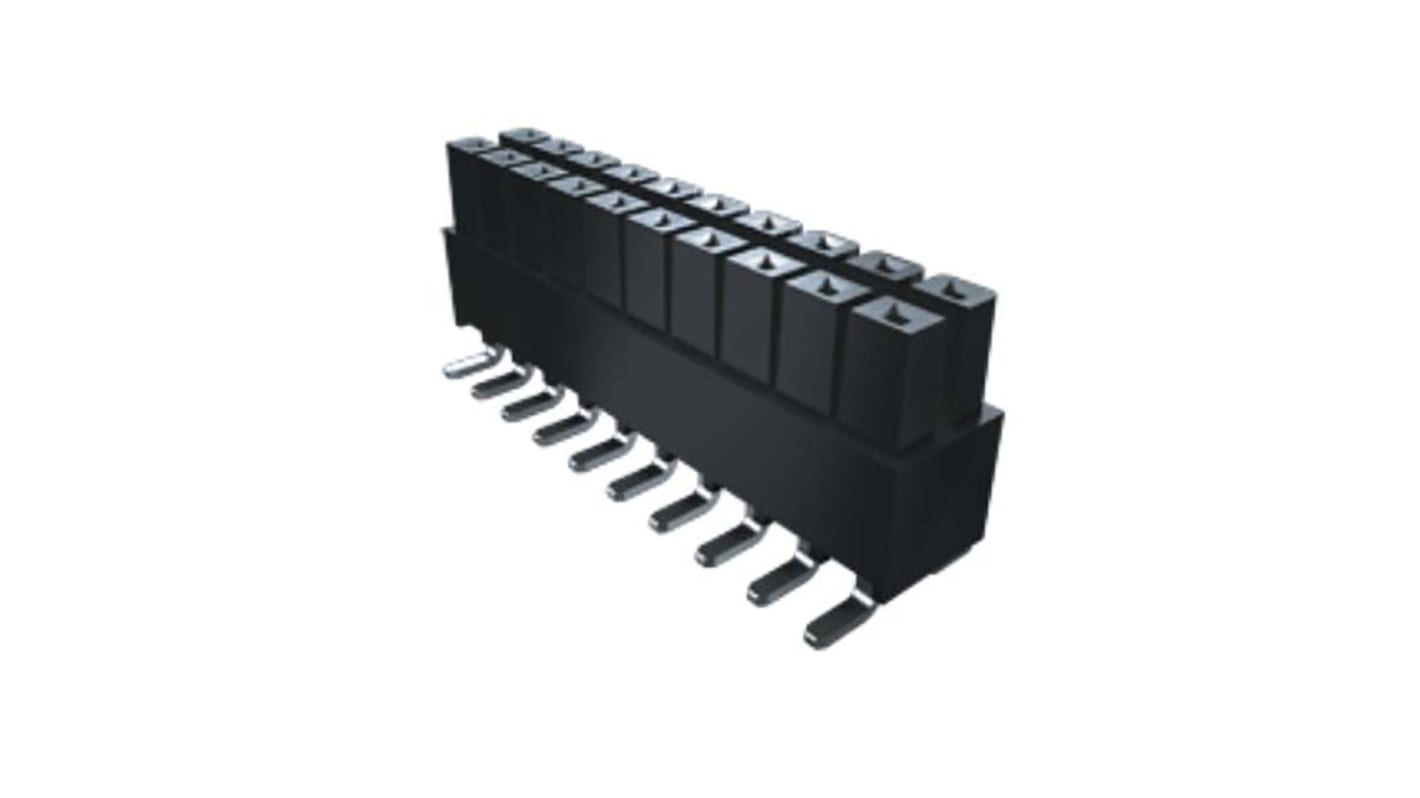

Samtec IPS1 Series Right Angle Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder

RS Stock No.:: 208-8770
Mfr. Part No.:: IPS1-120-01-L-D
Manufacturer:: Samtec

Samtec IPS1 Series Right Angle Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder

Bulk discount available

Subtotal (1 unit)*

SGD7.43

(exc. GST)

SGD8.10

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

Temporarily out of stock

Shipping from 18 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	SGD7.43
10 - 49	SGD7.20
50 - 99	SGD6.97
100 - 249	SGD6.82
250 +	SGD6.67

*price indicative

RS Stock No.:: 208-8770
Mfr. Part No.:: IPS1-120-01-L-D
Manufacturer:: Samtec

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Samtec
	Product Type	PCB Socket
	Number of Contacts	40
	Number of Rows	2
	Sub Type	Socket
	Pitch	2.54mm
	Current	4.8A
	Termination Type	Solder
	Mount Type	Through Hole
	Orientation	Right Angle
	Connector System	Board-to-Board
	Series	IPS1
	Row Pitch	2.54mm
	Contact Plating	Gold
	Standards/Approvals	No

	Select all
	Brand Samtec
	Product Type PCB Socket
	Number of Contacts 40
	Number of Rows 2
	Sub Type Socket
	Pitch 2.54mm
	Current 4.8A
	Termination Type Solder
	Mount Type Through Hole
	Orientation Right Angle
	Connector System Board-to-Board
	Series IPS1
	Row Pitch 2.54mm
	Contact Plating Gold
	Standards/Approvals No

Datasheet - IPS1-120-01-L-D

The Samtec PCB Socket has 100" (2.54 mm) pitch size.

100" (2.54 mm) pitch

Current rating to 4.8A @ 95°C

Double row

Individually shrouded contacts

Optional locking clip

Samtec IPS1 Series Right Angle Through Hole PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Solder
