Units	Per unit	Per Pack**
1000 - 4000	SGD1.20	SGD1,200.00
5000 +	SGD1.08	SGD1,080.00

Select all	Attribute	Value
	Brand	Samtec
	Series	TSW
	Pitch	2.54mm
	Number of Contacts	16
	Number of Rows	2
	Body Orientation	Straight
	Shrouded/Unshrouded	Unshrouded
	Connector System	Board to Board
	Mounting Type	Through Hole
	Termination Method	Solder
	Contact Plating	Gold
	Contact Material	Phosphor Bronze
	Current Rating	4.3A
	Tail Pin Length	2.79mm
	Mating Pin Length	13.21mm
	Voltage Rating	400.0 V , 500.0 V ac, 550.0 V ac

	Select all
	Brand Samtec
	Series TSW
	Pitch 2.54mm
	Number of Contacts 16
	Number of Rows 2
	Body Orientation Straight
	Shrouded/Unshrouded Unshrouded
	Connector System Board to Board
	Mounting Type Through Hole
	Termination Method Solder
	Contact Plating Gold
	Contact Material Phosphor Bronze
	Current Rating 4.3A
	Tail Pin Length 2.79mm
	Mating Pin Length 13.21mm
	Voltage Rating 400.0 V , 500.0 V ac, 550.0 V ac

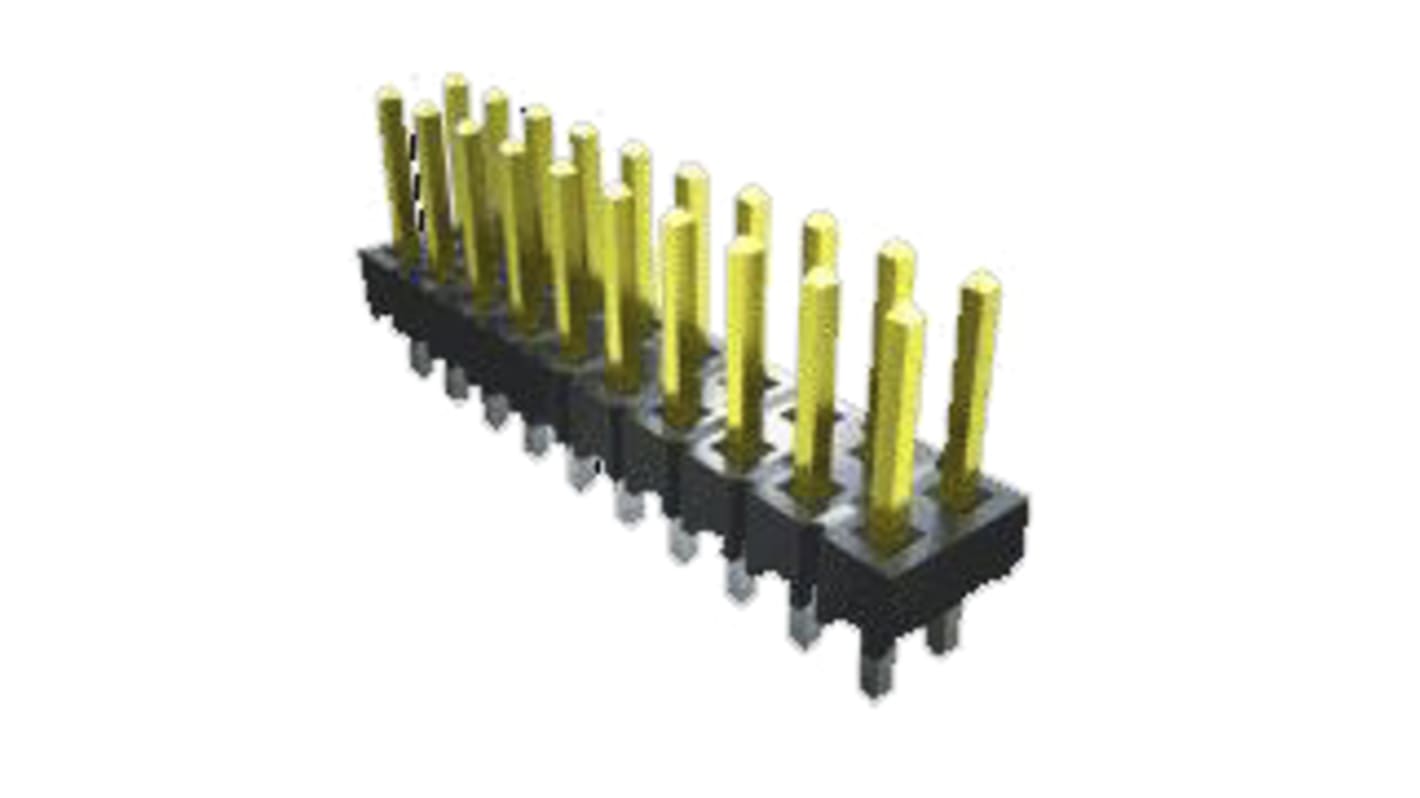

Samtec TSW Series Straight Through Hole Pin Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

FREE delivery for orders over SGD150.00 (ex GST)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
