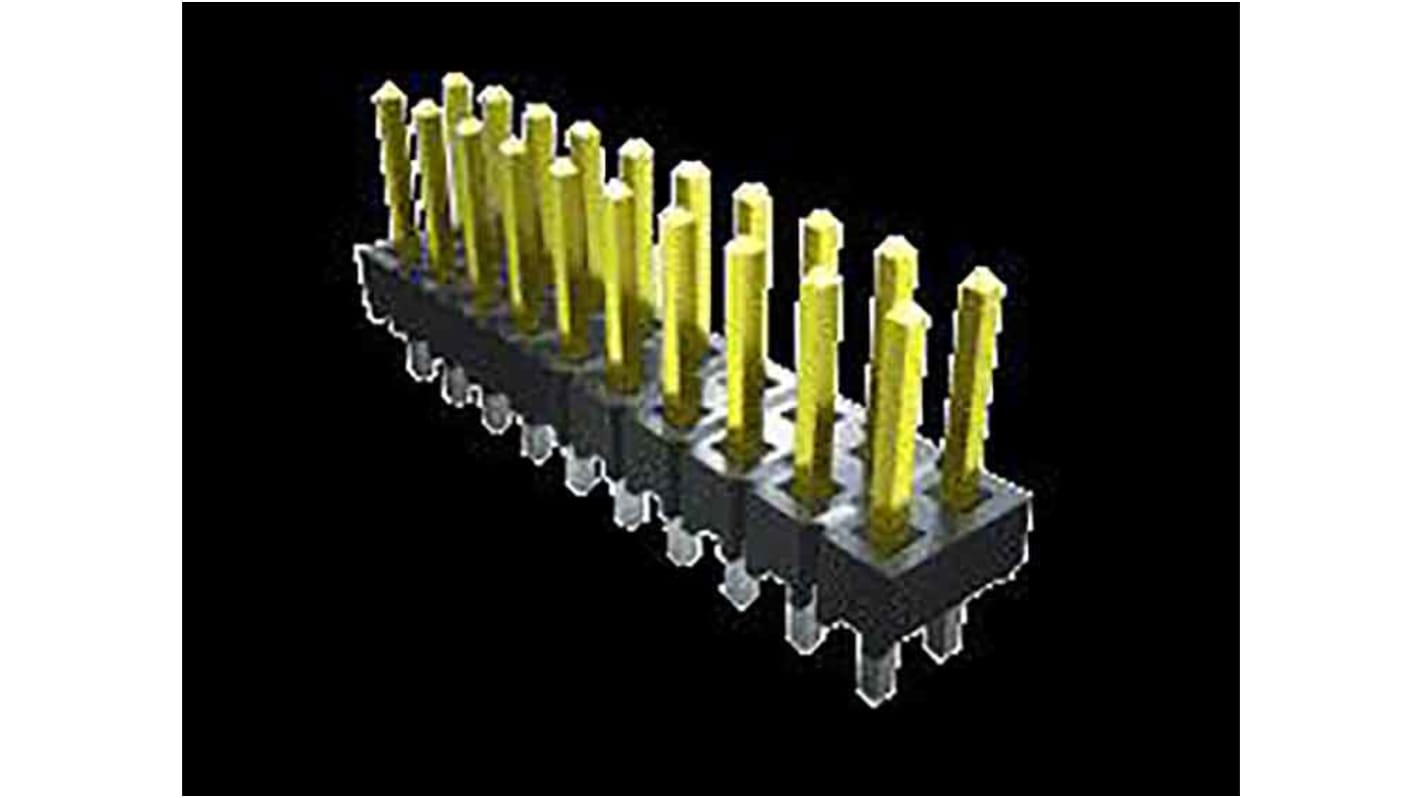

    Samtec TSW Series Straight Through Hole Pin Header, 18 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded

    View all PCB Headers
    Bulk discount available

    Subtotal (1 pack of 5 units)**

    SGD7.55

    (exc. GST)

    SGD8.25

    (inc. GST)

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 01/06/2025, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Pack**
    5 - 20SGD1.51SGD7.55
    25 - 45SGD1.386SGD6.93
    50 - 95SGD1.238SGD6.19
    100 - 245SGD1.118SGD5.59
    250 +SGD1.02SGD5.10

    **price indicative

    Packaging Options:
    RS Stock No.:
    180-1951
    Mfr. Part No.:
    TSW-109-07-T-D
    Manufacturer:
    Samtec
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Samtec

    Series

    TSW

    Pitch

    2.54mm

    Number of Contacts

    18

    Number of Rows

    2

    Body Orientation

    Straight

    Shrouded/Unshrouded

    Unshrouded

    Connector System

    Board to Board

    Mounting Type

    Through Hole

    Termination Method

    Solder

    Contact Material

    Phosphor Bronze

    Contact Plating

    Tin

    Current Rating

    4.3A

    Tail Pin Length

    2.54mm

    Mating Pin Length

    5.84mm

    Voltage Rating

    400.0 V , 500.0 V ac, 550.0 V ac
