Units	Per unit	Per Tray**
102 - 408	SGD1.433	SGD146.166
510 +	SGD1.29	SGD131.58

Select all	Attribute	Value
	Brand	Molex
	Series	Nano-Fit
	Pitch	2.5mm
	Number of Contacts	6
	Number of Rows	1
	Body Orientation	Right Angle
	Shrouded/Unshrouded	Shrouded
	Mounting Type	Through Hole
	Connector System	Wire to Board
	Termination Method	Through Hole
	Contact Material	Brass
	Contact Plating	Tin
	Current Rating	8A
	Series Number	105313
	Tail Pin Length	3.2mm
	Voltage Rating	250.0 V

	Select all
	Brand Molex
	Series Nano-Fit
	Pitch 2.5mm
	Number of Contacts 6
	Number of Rows 1
	Body Orientation Right Angle
	Shrouded/Unshrouded Shrouded
	Mounting Type Through Hole
	Connector System Wire to Board
	Termination Method Through Hole
	Contact Material Brass
	Contact Plating Tin
	Current Rating 8A
	Series Number 105313
	Tail Pin Length 3.2mm
	Voltage Rating 250.0 V

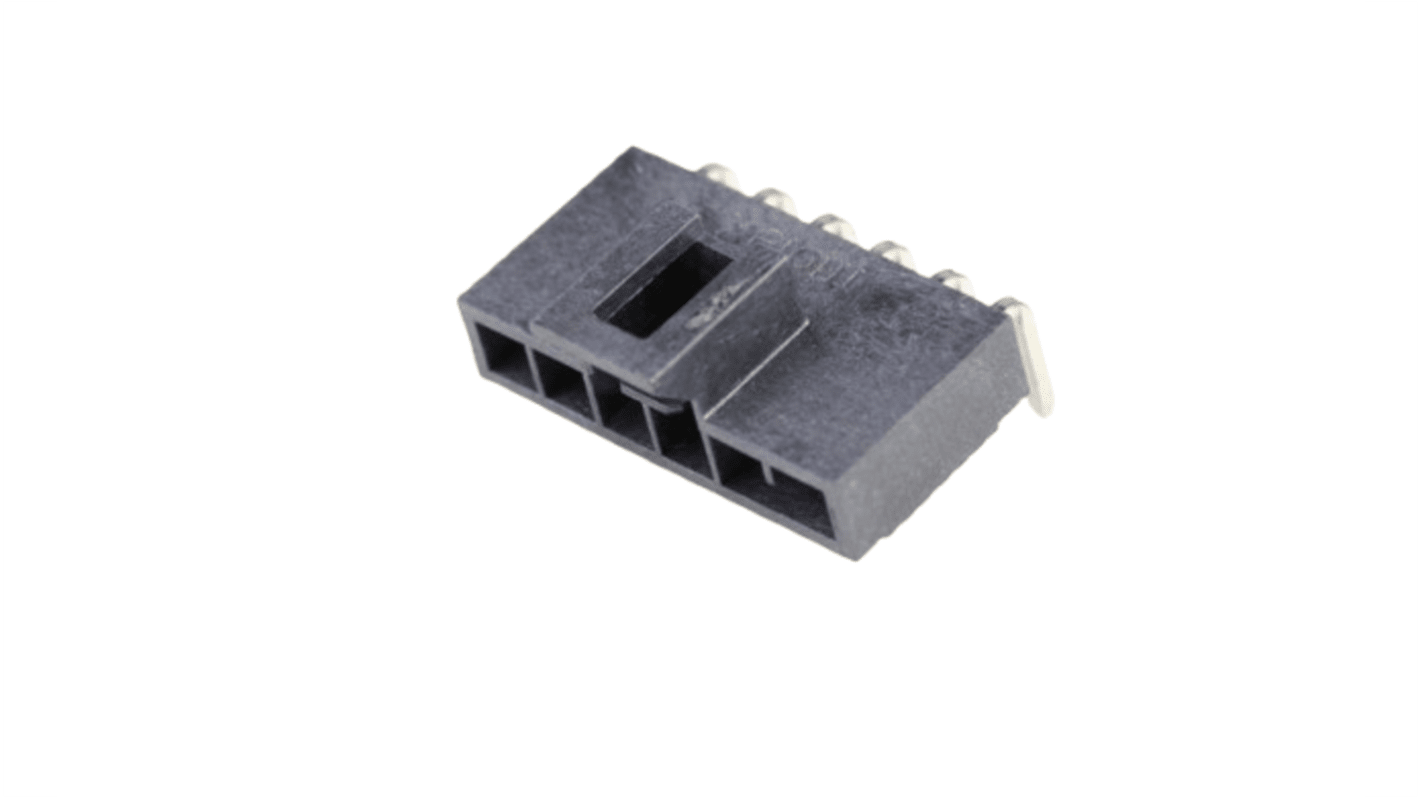

Molex Nano-Fit Series Right Angle Through Hole PCB Header, 6 Contact(s), 2.5mm Pitch, 1 Row(s), Shrouded

FREE delivery for orders over SGD150.00 (ex GST)

Molex Nano-Fit Series PCB Header, 2.5mm Pitch, 8A Current Rating - 105313-1106

Features & Benefits

Applications

What current rating can be expected from this connector?

How does the shrouded design benefit installation?

What is the significance of the 2.5mm pitch in design?

Can this connect with different wire gauges?

What termination methods are compatible with this header?

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
