Molex KK 254 Series Straight Through Hole Pin Header, 4 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

RS Stock No.:: 161-9290
Mfr. Part No.:: 22-29-2041
Manufacturer:: Molex

Molex KK 254 Series Straight Through Hole Pin Header, 4 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded

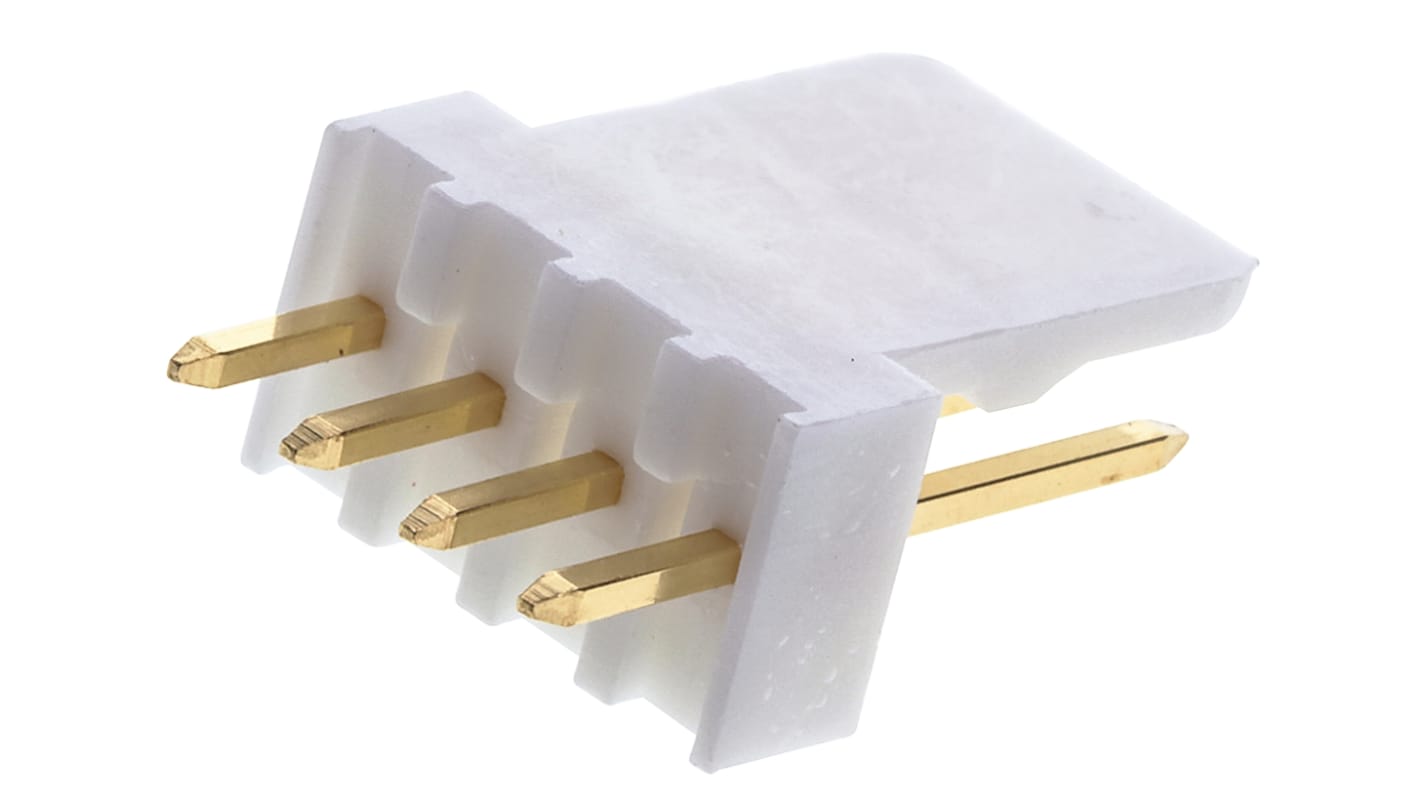

This image is representative of the product range

Bulk discount available

Subtotal (1 bag of 1500 units)*

SGD855.00

(exc. GST)

SGD930.00

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

3,000 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Bag*
1500 - 6000	SGD0.57	SGD855.00
7500 - 13500	SGD0.551	SGD826.50
15000 +	SGD0.514	SGD771.00

*price indicative

RS Stock No.:: 161-9290
Mfr. Part No.:: 22-29-2041
Manufacturer:: Molex

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Product Type	Pin Header
	Series	KK 254
	Current	4A
	Pitch	2.54mm
	Number of Contacts	4
	Housing Material	Nylon
	Number of Rows	1
	Orientation	Straight
	Shrouded/Unshrouded	Unshrouded
	Connector System	Wire-to-Board
	Mount Type	Through Hole
	Contact Material	Brass
	Contact Plating	Gold
	Minimum Operating Temperature	-40°C
	Row Pitch	2.54mm
	Termination Type	Solder
	Maximum Operating Temperature	105°C
	Contact Gender	Male
	Tail Pin Length	3.56mm
	Mating Pin Length	2.54mm
	Standards/Approvals	No
	Voltage	250 V

	Select all
	Brand Molex
	Product Type Pin Header
	Series KK 254
	Current 4A
	Pitch 2.54mm
	Number of Contacts 4
	Housing Material Nylon
	Number of Rows 1
	Orientation Straight
	Shrouded/Unshrouded Unshrouded
	Connector System Wire-to-Board
	Mount Type Through Hole
	Contact Material Brass
	Contact Plating Gold
	Minimum Operating Temperature -40°C
	Row Pitch 2.54mm
	Termination Type Solder
	Maximum Operating Temperature 105°C
	Contact Gender Male
	Tail Pin Length 3.56mm
	Mating Pin Length 2.54mm
	Standards/Approvals No
	Voltage 250 V

Molex Pin Header, Gold Contact Plating, 456mg Weight - KK 254 Series - 22-29-2041

Need a trusty messenger to carry signals from wires to your circuit board? Go for this pin header from Molex. It has four contacts to give you multi-component control and reduce the wiring needs of your setup. The unit's nylon housing does double duty by offering insulation to prevent electric shocks and impact resistance for durability in harsh environments. Thanks to its through-hole mounting style, you can achieve a vibration-proof connection to your PCB.

Features & Benefits

• Current rating of 4A makes it the right choice for light-duty applications

• Pitch of 2.54mm saves space and prevents short circuits

Applications

• CNC equipment

• Transportation industry

• CCTV systems

What temperatures can this pin header tolerate?

The unit handles an operating temperature range between -40°C and +80°C, making it safe to use in challenging conditions.

Vertical Headers, 6410 Series

Mate with 2695 and 6471 Series housings.
