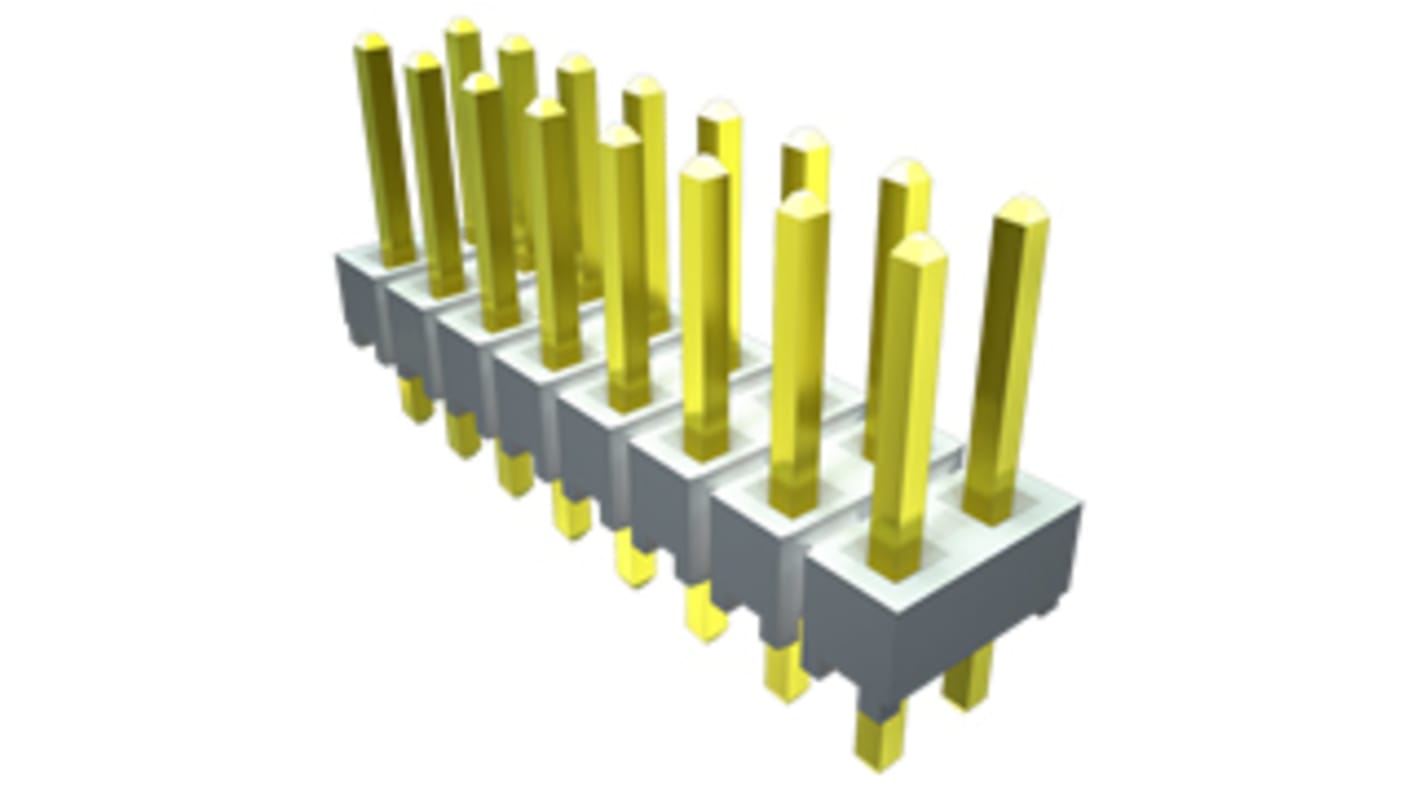

Samtec HTSW Series Straight Through Hole Pin Header, 6 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 159-2331
- Mfr. Part No.:
- HTSW-103-07-G-D
- Manufacturer:
- Samtec
Temporarily out of stock - back order for despatch 22/05/2024, delivery within 4 working days from despatch date
Added
Price Each
SGD1.14
(exc. GST)
SGD1.24
(inc. GST)
| Units | Per unit |
| 1 - 9 | SGD1.14 |
| 10 - 49 | SGD1.12 |
| 50 - 99 | SGD1.09 |
| 100 - 499 | SGD1.06 |
| 500 + | SGD1.03 |
- RS Stock No.:
- 159-2331
- Mfr. Part No.:
- HTSW-103-07-G-D
- Manufacturer:
- Samtec
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
.100" High-Temp Terminal Strip
Application: Industry's largest variety of standard pin counts, terminal lengths and options
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Pitch: .100" (2.54 mm)
Special Features: Suitable for most high-temperature board processing
Termination: Through-hole
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Pitch: .100" (2.54 mm)
Special Features: Suitable for most high-temperature board processing
Termination: Through-hole
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Series | HTSW |
| Pitch | 2.54mm |
| Number of Contacts | 6 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board to Board, Wire to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Voltage Rating | 400.0 V , 450.0 V ac, 500.0 V ac, 550.0 V ac |
