TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

RS Stock No.:: 461-663
Distrelec Article No.:: 303-32-595
Mfr. Part No.:: 2-1761605-3
Manufacturer:: TE Connectivity

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded

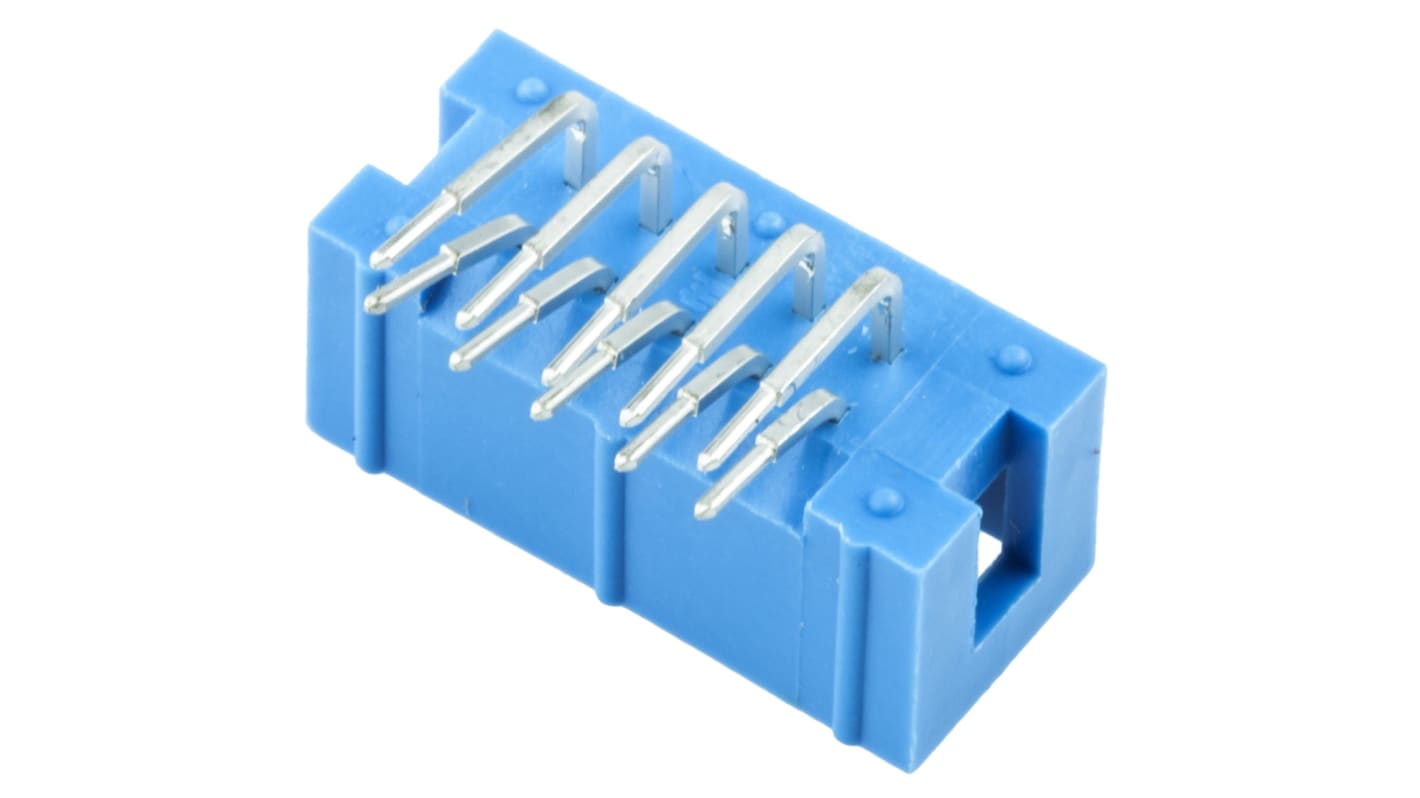

This image is representative of the product range

Currently unavailable

Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

Amphenol Communications Solutions Quickie Series Right Angle Through Hole PCB Header, 10 Contact(s), 2.54 mm Pitch, 2

RS Stock No.: 673-7635

Each (In a Pack of 5)

SGD1.686

(exc. GST)

SGD1.838

(inc. GST)

RS Stock No.:: 461-663
Distrelec Article No.:: 303-32-595
Mfr. Part No.:: 2-1761605-3
Manufacturer:: TE Connectivity

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Product Type	PCB Header
	Series	AMP-LATCH
	Pitch	2.54mm
	Current	1A
	Number of Contacts	10
	Housing Material	Polybutylene Terephthalate
	Number of Rows	2
	Orientation	Right Angle
	Shrouded/Unshrouded	Shrouded
	Mount Type	Through Hole
	Connector System	Wire-to-Board
	Contact Material	Phosphor Bronze
	Contact Plating	Gold
	Minimum Operating Temperature	-65°C
	Row Pitch	2.54mm
	Termination Type	Solder
	Maximum Operating Temperature	105°C
	Tail Pin Length	2.6mm
	Contact Gender	Male
	Standards/Approvals	No
	Voltage	250V

	Select all
	Brand TE Connectivity
	Product Type PCB Header
	Series AMP-LATCH
	Pitch 2.54mm
	Current 1A
	Number of Contacts 10
	Housing Material Polybutylene Terephthalate
	Number of Rows 2
	Orientation Right Angle
	Shrouded/Unshrouded Shrouded
	Mount Type Through Hole
	Connector System Wire-to-Board
	Contact Material Phosphor Bronze
	Contact Plating Gold
	Minimum Operating Temperature -65°C
	Row Pitch 2.54mm
	Termination Type Solder
	Maximum Operating Temperature 105°C
	Tail Pin Length 2.6mm
	Contact Gender Male
	Standards/Approvals No
	Voltage 250V

COO (Country of Origin):: CN

TE Connectivity AMP-Latch Ribbon Cable Header Connectors

A range of AMP-Latch ribbon cable header connectors with a 2.54mm centreline.

Part numbers X-1761681-X and X-1761679-X are low profile with centre and military polarization

Part numbers X-176133-X are low profile with centre polarization and dual polarization bar

Part numbers X-827745-X and X-827746-X are low profile without polarization

Part numbers X-828581-X and X-88582-X are standard profile with centre and dual polarization

Part numbers X-828584-X, X-828586-X, X-828588-X and X-828590-X are standard profile with latches and centre and dual polarization

Part numbers X-1761606-X are low profile with latches and centre and military polarization

Part numbers X-1761603-X, X-1761605-X and X-28172X-X are low profile with centre polarization

Standards

IDC
