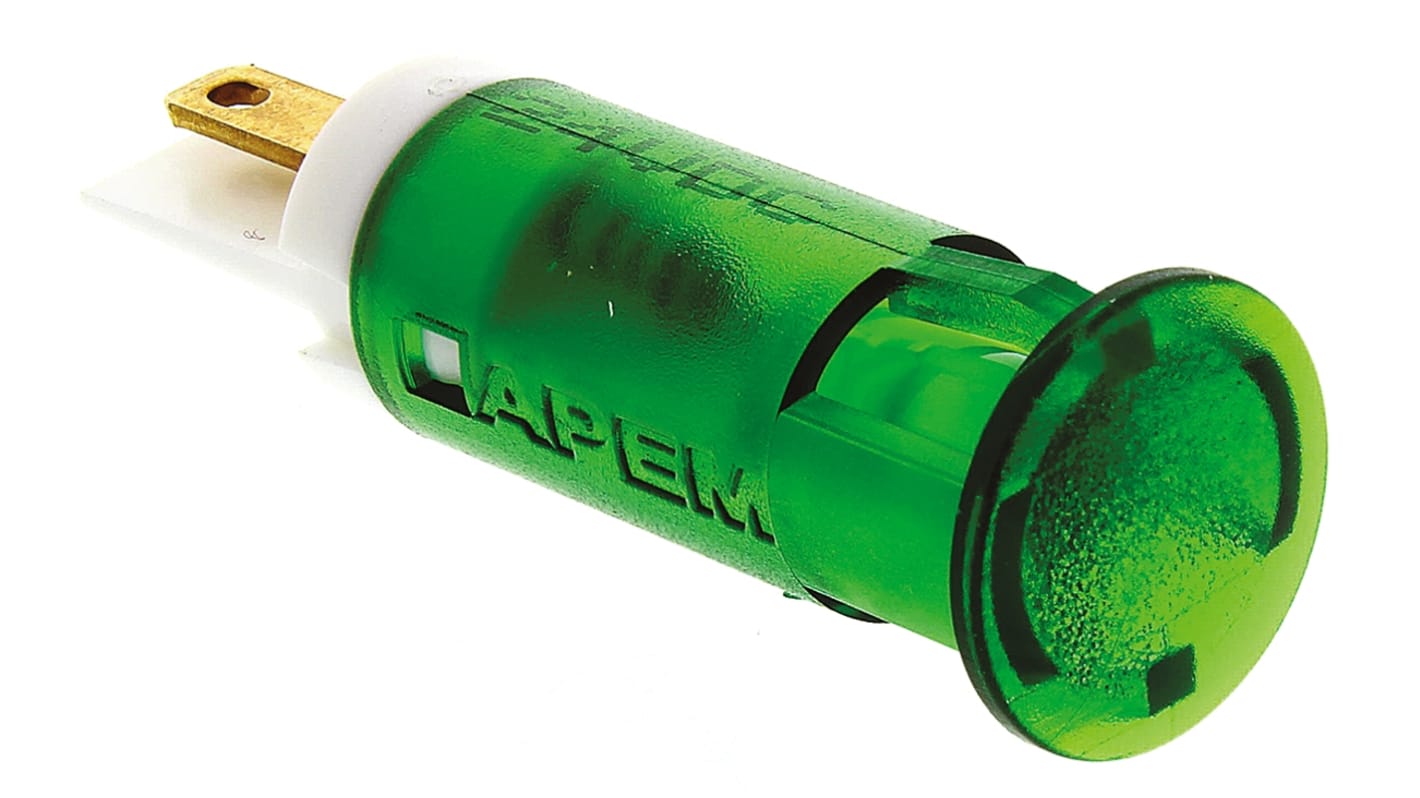

Name: APEM Green Panel Mount Indicator, 24V dc, 10mm Mounting Hole Size, Faston, Solder Lug Termination
Brand: APEM
SKU: 786-4132
Price: 7.41 SGD
Availability: OutOfStock

Apem 10mm Snap-In Panel Mount LED Indicators - QS Series

Apem QS series snap-in panel mount LED indicators with a coloured diffused flat lens, for typical replacement of filament and neon indicators. Applications include domestic and commercial white goods, catering equipment, fire alarm panels, power distribution sockets and battery chargers/power supplies.

10mm panel cut-out size (tolerance +0.1 and -0.05mm)
Front panel snap-in mounting requires no additional hardware
Coloured diffused flat lenses
Available colours: red, green, yellow, blue, orange, white (clear), tri-colour and flashing red
Voltage range: 2Vdc - 220Vac
Terminations: solder lug/faston, 10mm (2.0 x 0.5mm) or wires (200mm)
Standard intensity diffused LEDs or high brightness LEDs for daylight viewing
UL496 recognised

Units	Per unit
1 - 24	SGD6.80
25 - 49	SGD6.66
50 - 99	SGD6.52
100 - 499	SGD6.39
500 +	SGD5.26

Select all	Attribute	Value
	Brand	APEM
	Voltage Rating	24V dc
	Light Output Colour	Green
	Mounting Hole Size	10mm
	Lamp Type	LED
	Termination Type	Faston, Solder Lug
	Bezel Colour	Green
	Current Rating	20mA
	Intensity	20mcd
	Length	28.2mm

	Select all
	Brand APEM
	Voltage Rating 24V dc
	Light Output Colour Green
	Mounting Hole Size 10mm
	Lamp Type LED
	Termination Type Faston, Solder Lug
	Bezel Colour Green
	Current Rating 20mA
	Intensity 20mcd
	Length 28.2mm

APEM Green Panel Mount Indicator, 24V dc, 10mm Mounting Hole Size, Faston, Solder Lug Termination

Apem 10mm Snap-In Panel Mount LED Indicators - QS Series
