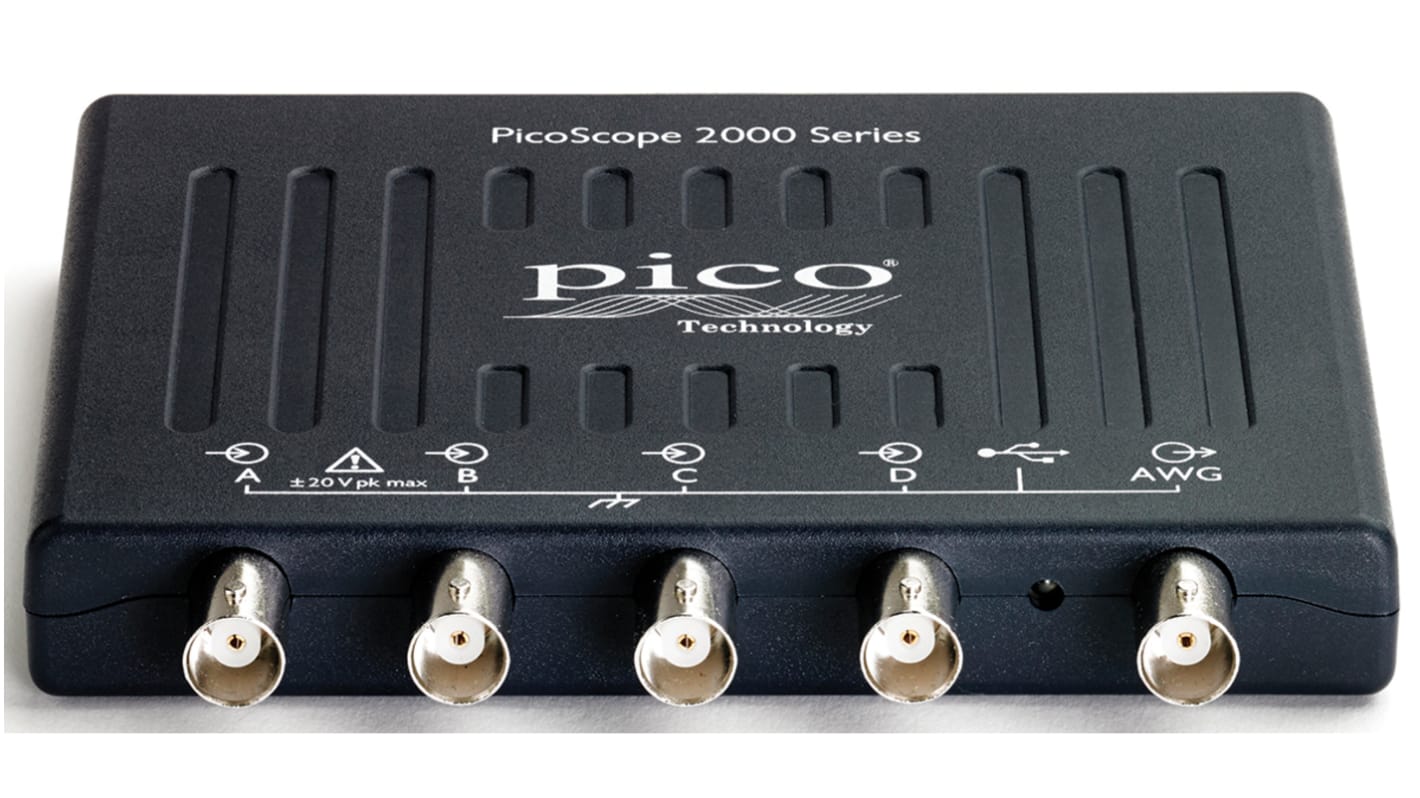

PicoScope 2000 Series, 70 MHz PC Based Oscilloscope 4-Channel

RS Stock No.:: 111-6776
Distrelec Article No.:: 300-73-915
Mfr. Part No.:: PicoScope 2407B
Manufacturer:: Pico Technology

PicoScope 2000 Series, 70 MHz PC Based Oscilloscope 4-Channel

View all Oscilloscopes

Subtotal (1 unit)*

SGD1,243.22

(exc. GST)

SGD1,355.11

(inc. GST)

FREE delivery for orders over $75.00, or create a business account to enjoy free delivery from just $28

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD1,243.22

*price indicative

RS Stock No.:: 111-6776
Distrelec Article No.:: 300-73-915
Mfr. Part No.:: PicoScope 2407B
Manufacturer:: Pico Technology

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	70MHz
	Number of Channels	4
	Model Number	PicoScope 2407B
	Oscilloscope Type	PC Based
	Interface Type	CAN, IIC, LIN, RS232, SPI, UART, USB
	Series	PicoScope 2000
	Length	130mm
	Height	18.8mm
	Width	104mm
	Standards/Approvals	No
	Maximum Vertical Sensitivity	4V/div
	Maximum Time Base	5000s/div
	Minimum Time Base	1ns/div
	Rise Time	5ns
	Power Source	USB
	Vertical Resolution	8 bit
	Minimum Vertical Sensitivity	4mV/div

	Select all
	Brand Pico Technology
	Product Type Oscilloscope
	Bandwidth 70MHz
	Number of Channels 4
	Model Number PicoScope 2407B
	Oscilloscope Type PC Based
	Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB
	Series PicoScope 2000
	Length 130mm
	Height 18.8mm
	Width 104mm
	Standards/Approvals No
	Maximum Vertical Sensitivity 4V/div
	Maximum Time Base 5000s/div
	Minimum Time Base 1ns/div
	Rise Time 5ns
	Power Source USB
	Vertical Resolution 8 bit
	Minimum Vertical Sensitivity 4mV/div

COO (Country of Origin):: GB

PicoScope 2000 Series Oscilloscope, 70MHz Bandwidth, 1ns/div Time Base - PicoScope 2407B

This oscilloscope is a Compact USB‑powered PC‑based instrument designed for signal visualisation and debugging in laboratory and field settings. It connects via USB and supports a range of serial protocols for direct interfacing with vehicle networks, embedded systems and serial devices, enabling waveform capture and analysis on a host computer without a separate display.

Features and Benefits:

• 70MHz bandwidth for capturing mid‑frequency signals
• 1ns/div minimum timebase for fine time‑domain resolution
• 8‑bit vertical resolution for clear amplitude representation
• 4mV/div minimum sensitivity for detecting small signals
• 5ns rise time for resolving fast signal edges

Applications

• Suitable for vehicle network troubleshooting with CAN and LIN
• Ideal for embedded sensor verification using I2C and SPI
• Used with serial devices employing RS232 and UART links
• Can be used for portable data capture powered by USB
• Suitable for lab measurements requiring PC‑based analysis

What interfaces are available for direct signal capture?

It provides CAN, I²C, LIN, RS232, SPI, UART and USB interfaces.

How is the device powered during field use?

It draws power from a host computer via its USB connection.

What compliance marks relate to material and environmental standards?

It meets REACH, RoHS and WEEE standards.

How many input channels can be measured simultaneously?

There are four independent input channels for concurrent waveform acquisition.

Note

Software included: PicoScope 6 for Microsoft Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit SDK for Windows 7, 8 (not Windows RT) and 10; 32-bit and 64-bit Example programs (C, Microsoft Excel VBA, LabVIEW). Software freely available for download from www.picotech.com: PicoScope 6 (beta) for Linux and OS X; SDK (beta) for Linux and OS X. Languages supported: Simplified Chinese; Czech; Danish; Dutch; English; French; German; Greek; Hungarian; Italian; Japanese; Korean; Norwegian; Polish; Portuguese; Romanian; Russian; Spanish; Swedish; Turkish. Extra and/or replacement probes, cable and test clips are available separately.

Standards

EN 61010-1:2010

Supplied with

USB 2.0 cable, passive probes (x4), quick start guide, software and reference CD
