Vishay, TCMT1109 DC Input Transistor Output Optocoupler, Surface Mount, 4-Pin Mini-Flat
- RS Stock No.:
- 699-8344
- Mfr. Part No.:
- TCMT1109
- Manufacturer:
- Vishay

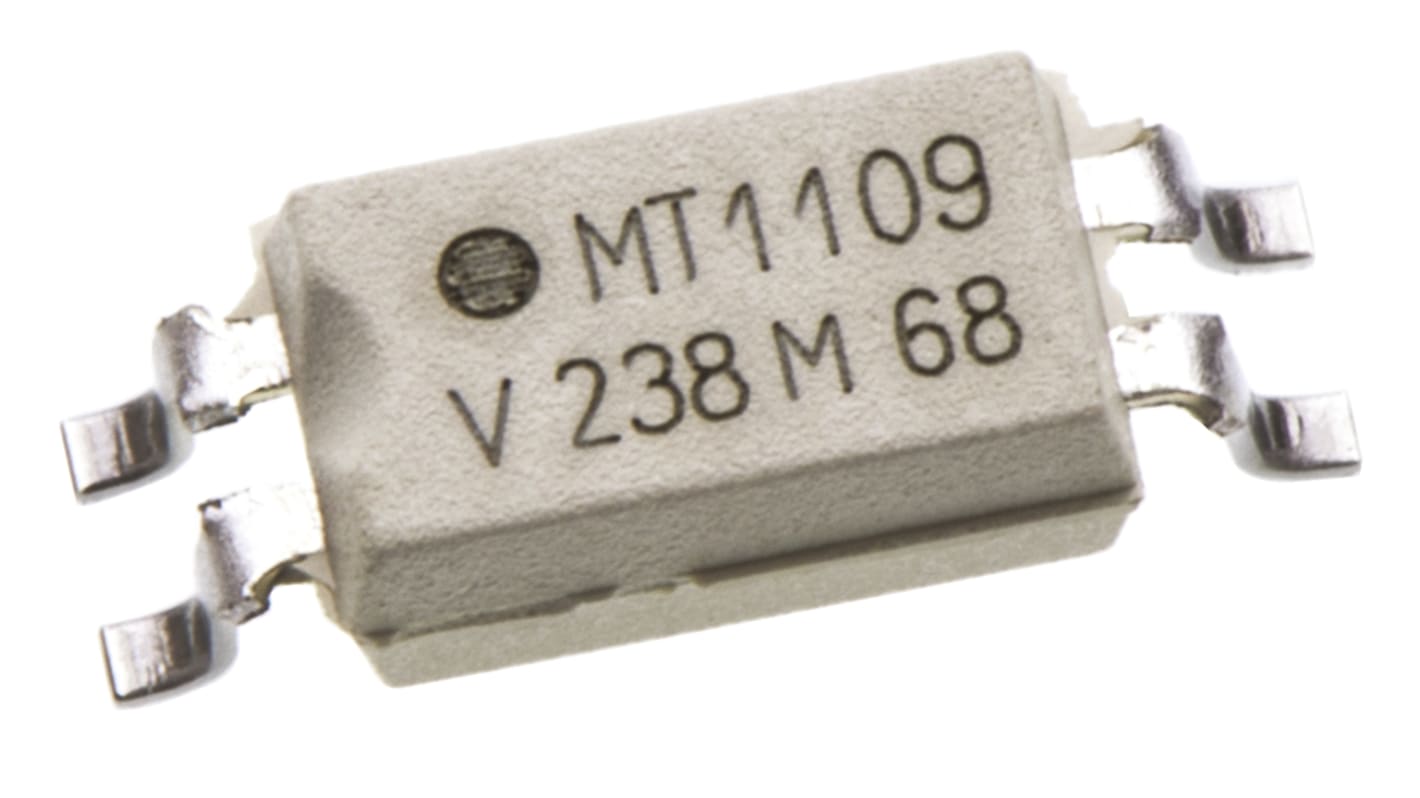

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 10 units)*
SGD6.58
(exc. GST)
SGD7.17
(inc. GST)
FREE delivery for orders over $150.00
Last RS stock
- 30 left, ready to ship from another location
- Final 260 unit(s) shipping from 23 June 2025
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 10 | SGD0.658 | SGD6.58 |
| 20 - 40 | SGD0.645 | SGD6.45 |
| 50 - 90 | SGD0.634 | SGD6.34 |
| 100 - 190 | SGD0.622 | SGD6.22 |
| 200 + | SGD0.61 | SGD6.10 |
*price indicative
- RS Stock No.:
- 699-8344
- Mfr. Part No.:
- TCMT1109
- Manufacturer:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mounting Type | Surface Mount | |
| Output Device | Transistor | |
| Maximum Forward Voltage | 1.6V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | Mini-Flat | |
| Input Current Type | DC | |
| Typical Rise Time | 3µs | |
| Maximum Input Current | 60 mA | |
| Isolation Voltage | 3750 V ac | |
| Maximum Current Transfer Ratio | 400% | |
| Minimum Current Transfer Ratio | 200% | |
| Typical Fall Time | 4.7µs | |
| Series | TCMT | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Mounting Type Surface Mount | ||
Output Device Transistor | ||
Maximum Forward Voltage 1.6V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type Mini-Flat | ||
Input Current Type DC | ||
Typical Rise Time 3µs | ||
Maximum Input Current 60 mA | ||
Isolation Voltage 3750 V ac | ||
Maximum Current Transfer Ratio 400% | ||
Minimum Current Transfer Ratio 200% | ||
Typical Fall Time 4.7µs | ||
Series TCMT | ||
