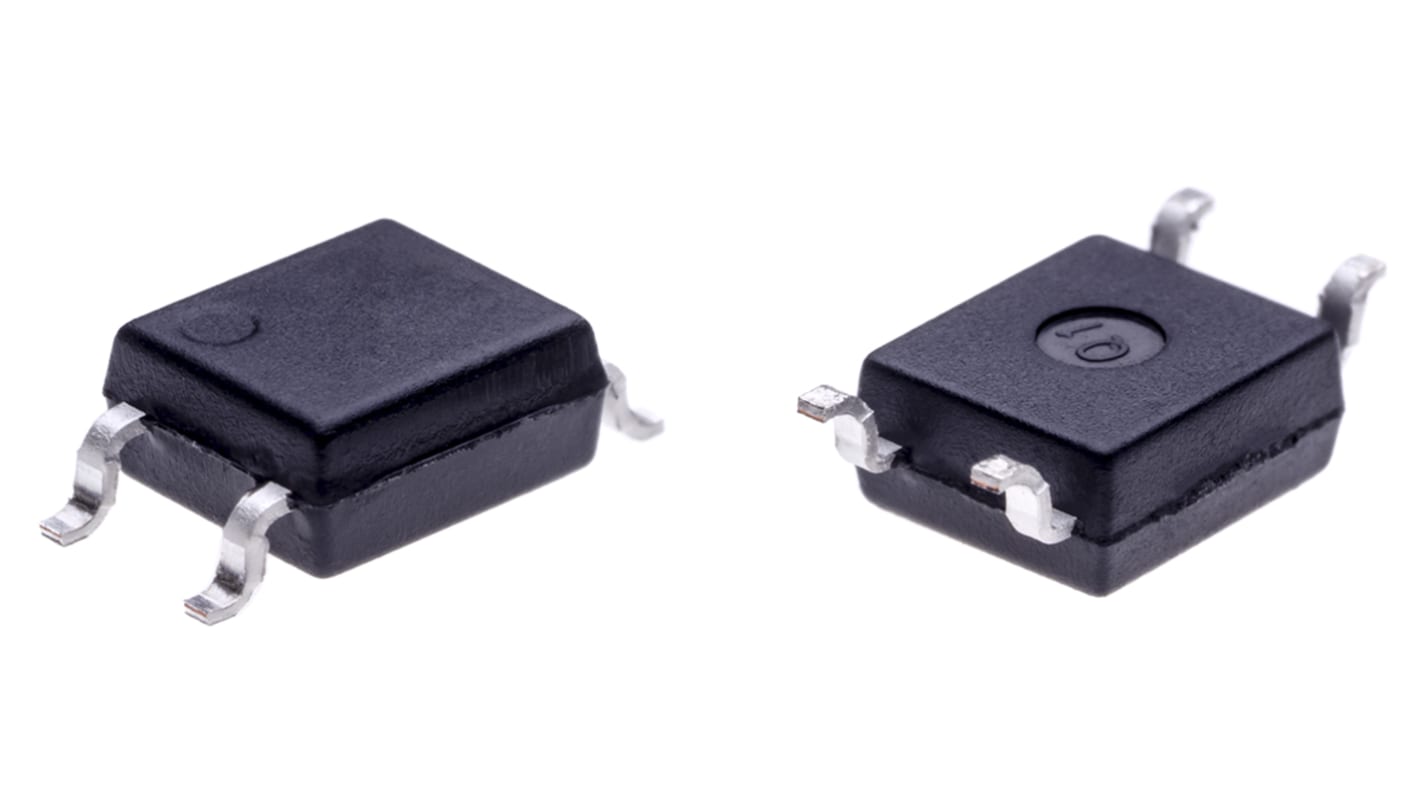

    Isocom, IS126 AC Input NPN Phototransistor Output Dual Optocoupler, Surface Mount, 4-Pin DIP

    Isocom
    RS Stock No.:
    161-1047
    Mfr. Part No.:
    IS126
    Manufacturer:
    Isocom
    View all Optocouplers
    750 In stock for delivery within 4 working days
    Add to Basket
    units

    Added

    Price Each (On a Reel of 750)

    SGD0.426

    (exc. GST)

    SGD0.46

    (inc. GST)

    unitsPer unitPer Reel*
    750 - 750SGD0.426SGD319.50
    1500 - 3000SGD0.412SGD309.00
    3750 +SGD0.397SGD297.75
    *price indicative
    RS Stock No.:
    161-1047
    Mfr. Part No.:
    IS126
    Manufacturer:
    Isocom

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

    The IS126 is an Optically Coupled Isolators Consist of Two Infrared Light Emitting diodes Connected in Inverse Parallel and NPN Silicon Photo Transistors in Space Efficient Dual in Line Plastic Packages

    Marked as FPA1
    Current Transfer Ration MIN.20%
    Isolation Voltage (3.75kVrms, 5.3kVpk)
    Drop in Replacement for Toshiba TLP126
    All Electrical Parameters 100% Tested
    APPLICATIONS:
    Computer Terminals
    Industrial Systems Controllers
    Measuring Instruments
    Signal Transmission between Systems of Different Potentials and Impedances

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Specifications

    AttributeValue
    Mounting TypeSurface Mount
    Output DeviceNPN Phototransistor
    Maximum Forward Voltage1.4V
    Number of Channels2
    Number of Pins4
    Package TypeDIP
    Input Current TypeAC
    Typical Rise Time4µs
    Maximum Input Current50 mA
    Isolation Voltage3750 (Minimum) Vrms
    Maximum Current Transfer Ratio400%
    Minimum Current Transfer Ratio20%
    Typical Fall Time3µs
    SeriesIS126
