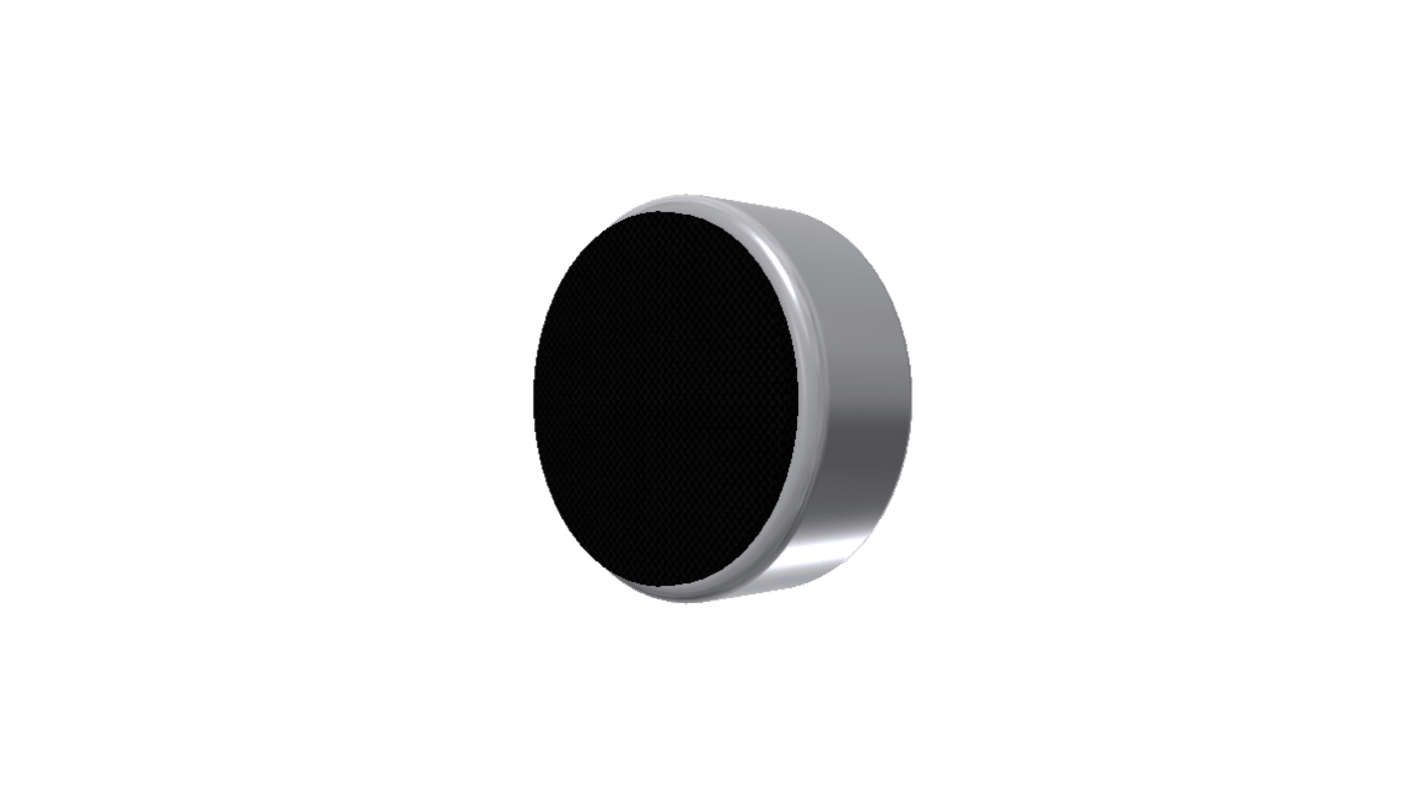

PUI Audio Microphone ECM, 20 kHz
- RS Stock No.:
- 287-741
- Mfr. Part No.:
- TOM-1537L-HD-R
- Manufacturer:
- PUI Audio
Bulk discount available
Subtotal (1 bag of 2 units)*
SGD8.41
(exc. GST)
SGD9.166
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 62 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 18 | SGD4.205 | SGD8.41 |
| 20 - 198 | SGD3.79 | SGD7.58 |
| 200 - 998 | SGD3.495 | SGD6.99 |
| 1000 - 1998 | SGD3.245 | SGD6.49 |
| 2000 + | SGD2.63 | SGD5.26 |
*price indicative
- RS Stock No.:
- 287-741
- Mfr. Part No.:
- TOM-1537L-HD-R
- Manufacturer:
- PUI Audio
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PUI Audio | |
| Sub Type | ECM | |
| Product Type | Microphone | |
| Directionality/Polar Pattern | Omni Directional | |
| Maximum Operating Voltage | 10V | |
| Impedance | 2200Ω | |
| Sensitivity | -37dB | |
| Length | 4mm | |
| Standards/Approvals | RoHS, REACH | |
| Maximum Frequency Response | 20kHz | |
| Minimum Frequency Response | 0.02kHz | |
| Minimum Operating Voltage | 2V | |
| Select all | ||
|---|---|---|
Brand PUI Audio | ||
Sub Type ECM | ||
Product Type Microphone | ||
Directionality/Polar Pattern Omni Directional | ||
Maximum Operating Voltage 10V | ||
Impedance 2200Ω | ||
Sensitivity -37dB | ||
Length 4mm | ||
Standards/Approvals RoHS, REACH | ||
Maximum Frequency Response 20kHz | ||
Minimum Frequency Response 0.02kHz | ||
Minimum Operating Voltage 2V | ||
The PUI Audio Microphone utilizes premium grade FETs and diaphragms to deliver high sensitivity and an exceptional signal to noise ratio. Each microphone is equipped with GSM buzz blocking capacitors ensuring clear audio capture. Designed for extreme fidelity the 4 mm diameter. TOM 1537L HD R covers a wide frequency range from 20 Hz to 20 kHz in PUI Audio smallest ECM package to date.
4mm diameter
1.5mm height
-37 dB sensitivity
68 dB signal-to-noise ratio
True 20 Hz to 20 kHz performance
