RS PRO Interchangeable Micrometer, Range 300mm →400mm
- RS Stock No.:
- 261-4513
- Manufacturer:
- RS PRO
Temporarily out of stock - back order for despatch 05/08/2024, delivery within 4 working days from despatch date
Price Each
SGD1,029.39
(exc. GST)
SGD1,122.04
(inc. GST)
Units | Per unit |
|---|---|
| 1 + | SGD1,029.39 |
- RS Stock No.:
- 261-4513
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

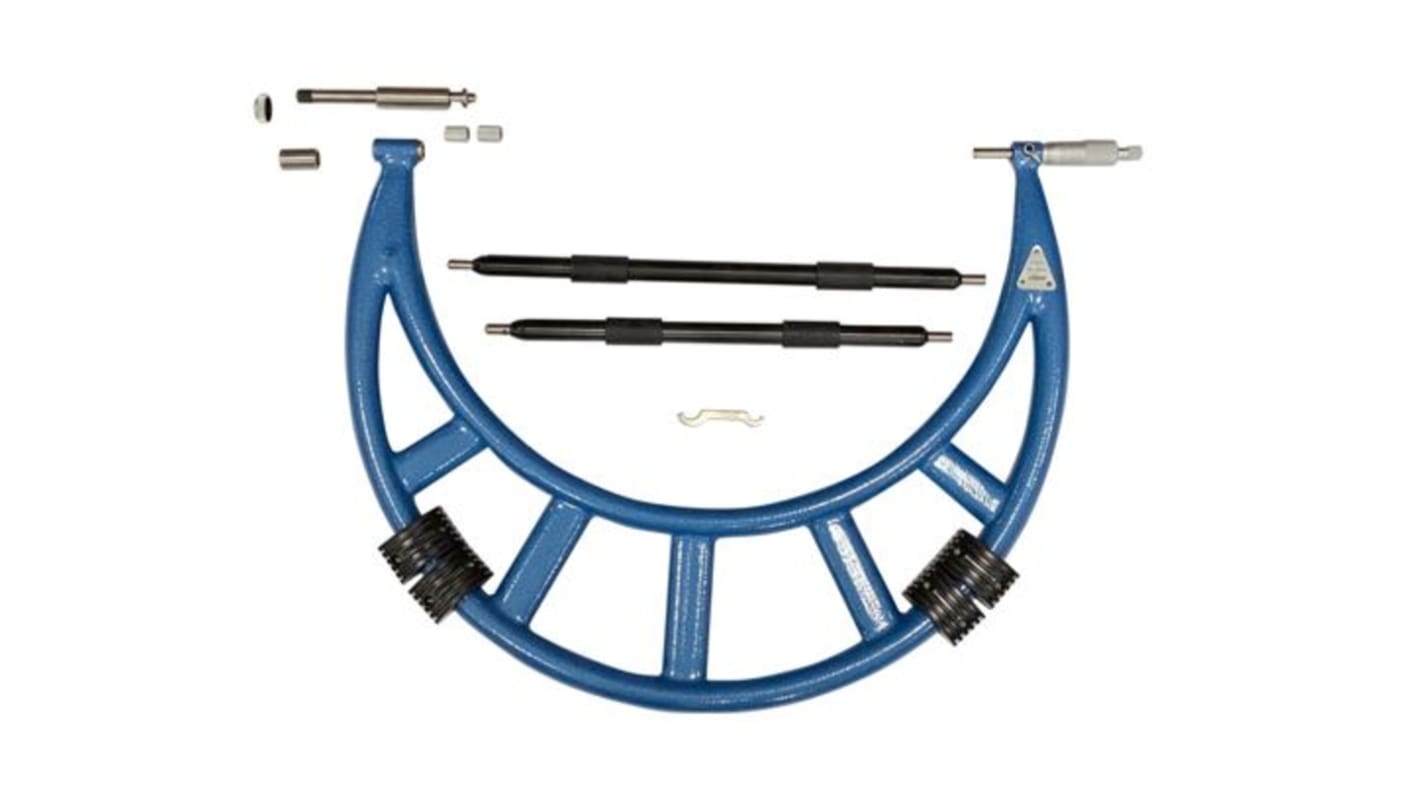

RS PRO Interchangeable Anvil Micrometer 300 to 400 mm range, 0.01 mm Resolution
Looking for a tool to measure the dimensions of components quickly, and accurately? This interchangeable anvil micrometer from RS PRO has been thoroughly tested to ensure accuracy, and consistency, providing a resolution of 0.01 mm with an accuracy of 0.0011 mm conforming to DIN 863. Micrometers are also known as a micrometer screw gauge. The RS PRO large Micrometer includes a fitted spindle lock, adjustment spanner with a storage box to protect the micrometer from damage when not in use. You will find this micrometer tool useful in mechanical and engineering settings where measurement accuracy is important.
Features & Benefits
- Accuracy conforms to DIN 863
- Lightweight tubular frame
- Microfine graduations provide accurate readings
- Micrometer metric graduations 0.01 mm
- Spindle locking lever
- Ratchet stop
- Tungsten carbide measuring face
- Tungsten carbide tipped fixed anvils
- Setting rods supplied
- Non-glare satin chrome barrel and sleeve
Applications
- Where accurate measurement is essential
- Measuring components within mechanical engineering and machining
- Manufacturing industries
- Electrical engineering
- External micrometers measure outer surfaces of any components
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Accuracy | ±0.0011 mm |
| Resolution | 0.01 mm |
| Imperial or Metric | Metric |
| Micrometer Type | Interchangeable |
| SPC Data Output | No |
| Battery Operated | No |
| Set Contents | 1 x Adjustable extension anvil, 2 x Standard collars, 2 x Settings rods, Adjustment tools, Fitted case. |
| Maximum Measurement | 400mm |
| Minimum Measurement | 300mm |
