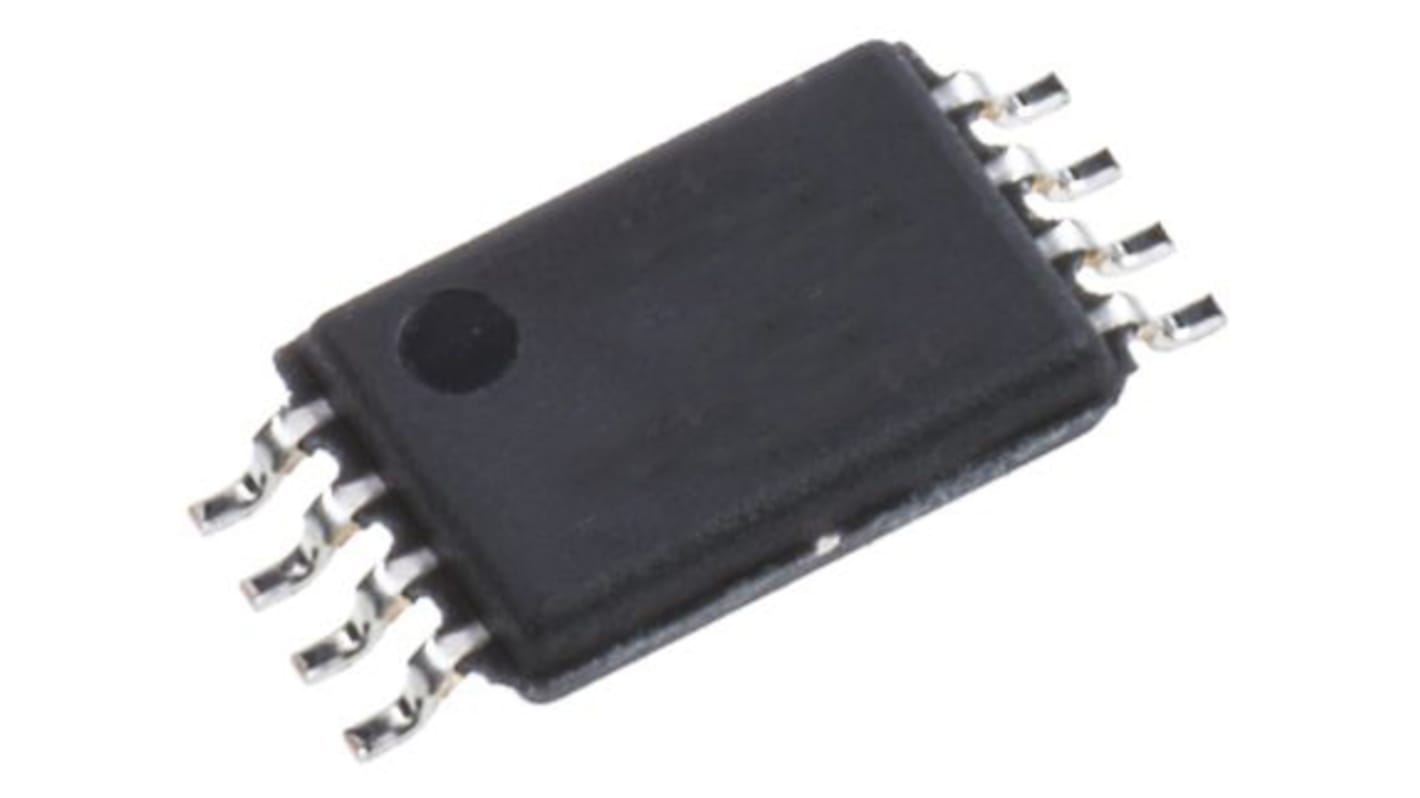

Toshiba TC7WH02FU, 2 2-Input NOR CMOS Digital Integrated Circuit, 8-Pin SOT-505

RS Stock No.:: 171-3094
Mfr. Part No.:: TC7WH02FU
Manufacturer:: Toshiba

Toshiba TC7WH02FU, 2 2-Input NOR CMOS Digital Integrated Circuit, 8-Pin SOT-505

Bulk discount available

Subtotal (1 pack of 50 units)*

SGD9.40

(exc. GST)

SGD10.25

(inc. GST)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Pack*
50 - 50	SGD0.188	SGD9.40
100 - 450	SGD0.174	SGD8.70
500 - 950	SGD0.162	SGD8.10
1000 +	SGD0.151	SGD7.55

*price indicative

RS Stock No.:: 171-3094
Mfr. Part No.:: TC7WH02FU
Manufacturer:: Toshiba

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Toshiba
	Logic Function	NOR
	Product Type	CMOS Digital Integrated Circuit
	Mount Type	Surface
	Number of Elements	2
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	SOT-505
	Pin Count	8
	Logic Family	CMOS
	Input Type	CMOS
	Maximum High Level Output Current	-8mA
	Maximum Propagation Delay Time @ CL	13ns
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Series	TC7WH02
	Length	2.9mm
	Maximum Supply Voltage	5.5V
	Height	1.05mm
	Standards/Approvals	No
	Minimum Supply Voltage	2V
	Maximum Low Level Output Current	8mA
	Automotive Standard	No
	Output Type	CMOS

	Select all
	Brand Toshiba
	Logic Function NOR
	Product Type CMOS Digital Integrated Circuit
	Mount Type Surface
	Number of Elements 2
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type SOT-505
	Pin Count 8
	Logic Family CMOS
	Input Type CMOS
	Maximum High Level Output Current -8mA
	Maximum Propagation Delay Time @ CL 13ns
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Series TC7WH02
	Length 2.9mm
	Maximum Supply Voltage 5.5V
	Height 1.05mm
	Standards/Approvals No
	Minimum Supply Voltage 2V
	Maximum Low Level Output Current 8mA
	Automotive Standard No
	Output Type CMOS

Datasheet

Wide operating temperature range: Topr = -40 to 85 

High speed operation: tpd = 3.6 ns (typ.) (VCC = 5.0 V, CL = 15 pF)

Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 )

High noise immunity: VNIH = VNIL = 28 % VCC (min)

5.5 V tolerant inputs

Balanced Propagation delay: tPLH ≈ tPHL

Wide operating voltage range: VCC = 2.0 to 5.5 V

Identical pin assignment and function with TC7W02
