Select all	Attribute	Value
	Brand	Nexperia
	Logic Function	NAND
	Mounting Type	Surface Mount
	Number of Elements	1
	Number of Inputs per Gate	2
	Schmitt Trigger Input	No
	Package Type	SC-74A
	Pin Count	5
	Logic Family	LVC
	Input Type	TTL
	Maximum Operating Supply Voltage	5.5 V
	Maximum High Level Output Current	-32mA
	Maximum Propagation Delay Time @ Maximum CL	7.5 ns @ 50 pF
	Minimum Operating Supply Voltage	1.65 V
	Maximum Low Level Output Current	32mA
	Height	1mm
	Dimensions	3.1 x 1.7 x 1mm
	Propagation Delay Test Condition	50pF
	Width	1.7mm
	Maximum Operating Temperature	+125 °C
	Length	3.1mm
	Output Type	Single Ended
	Minimum Operating Temperature	-40 °C

	Select all
	Brand Nexperia
	Logic Function NAND
	Mounting Type Surface Mount
	Number of Elements 1
	Number of Inputs per Gate 2
	Schmitt Trigger Input No
	Package Type SC-74A
	Pin Count 5
	Logic Family LVC
	Input Type TTL
	Maximum Operating Supply Voltage 5.5 V
	Maximum High Level Output Current -32mA
	Maximum Propagation Delay Time @ Maximum CL 7.5 ns @ 50 pF
	Minimum Operating Supply Voltage 1.65 V
	Maximum Low Level Output Current 32mA
	Height 1mm
	Dimensions 3.1 x 1.7 x 1mm
	Propagation Delay Test Condition 50pF
	Width 1.7mm
	Maximum Operating Temperature +125 °C
	Length 3.1mm
	Output Type Single Ended
	Minimum Operating Temperature -40 °C

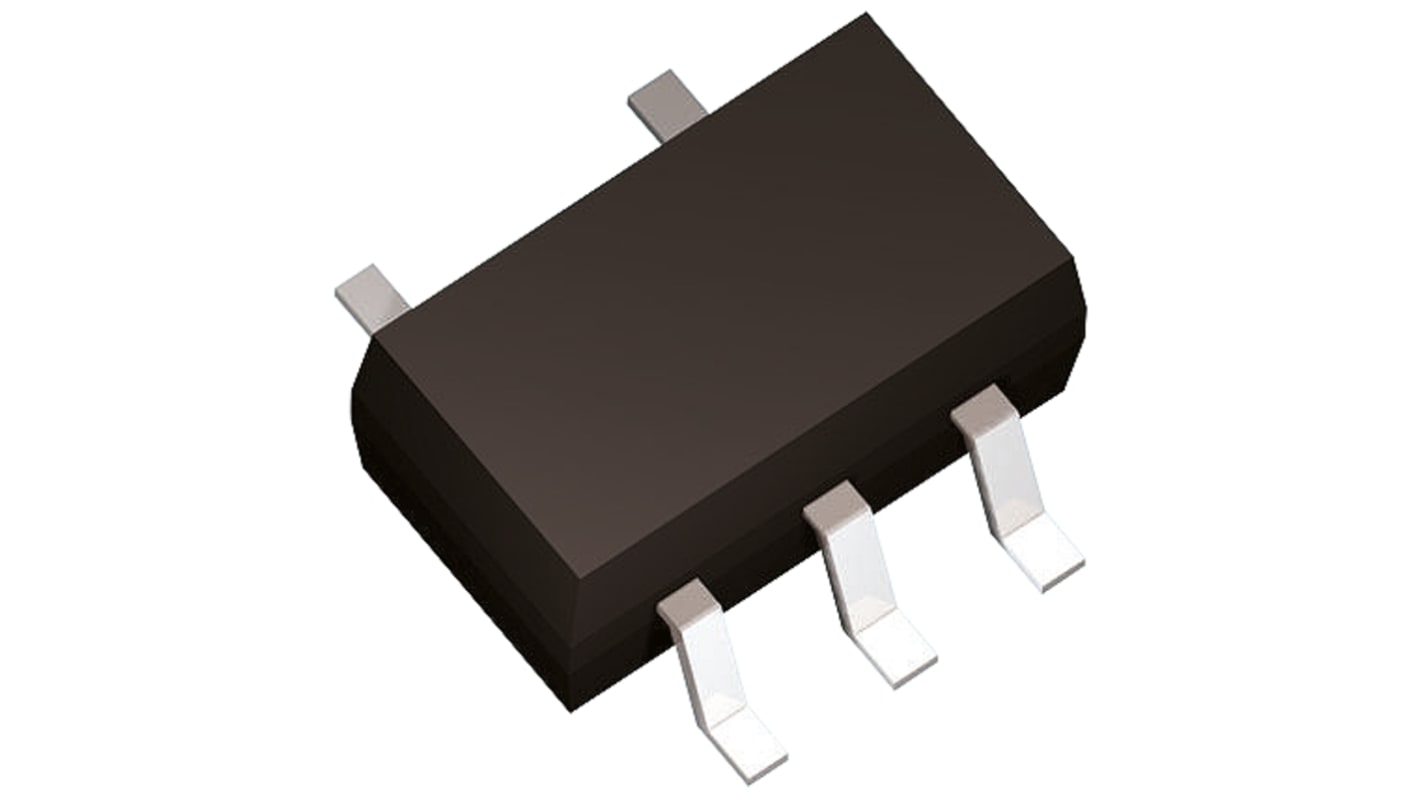

Nexperia 74LVC1G00GV,125 2-Input NAND Logic Gate, 5-Pin SC-74A

FREE delivery for orders over SGD150.00 (ex GST)

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
