Broadcom 1.9 V Red LED 5 mm (T-1 3/4) Through Hole HLMP-E HLMP-EG08-YZ000
- RS Stock No.:
- 496-6178
- Mfr. Part No.:
- HLMP-EG08-YZ000
- Manufacturer:
- Broadcom

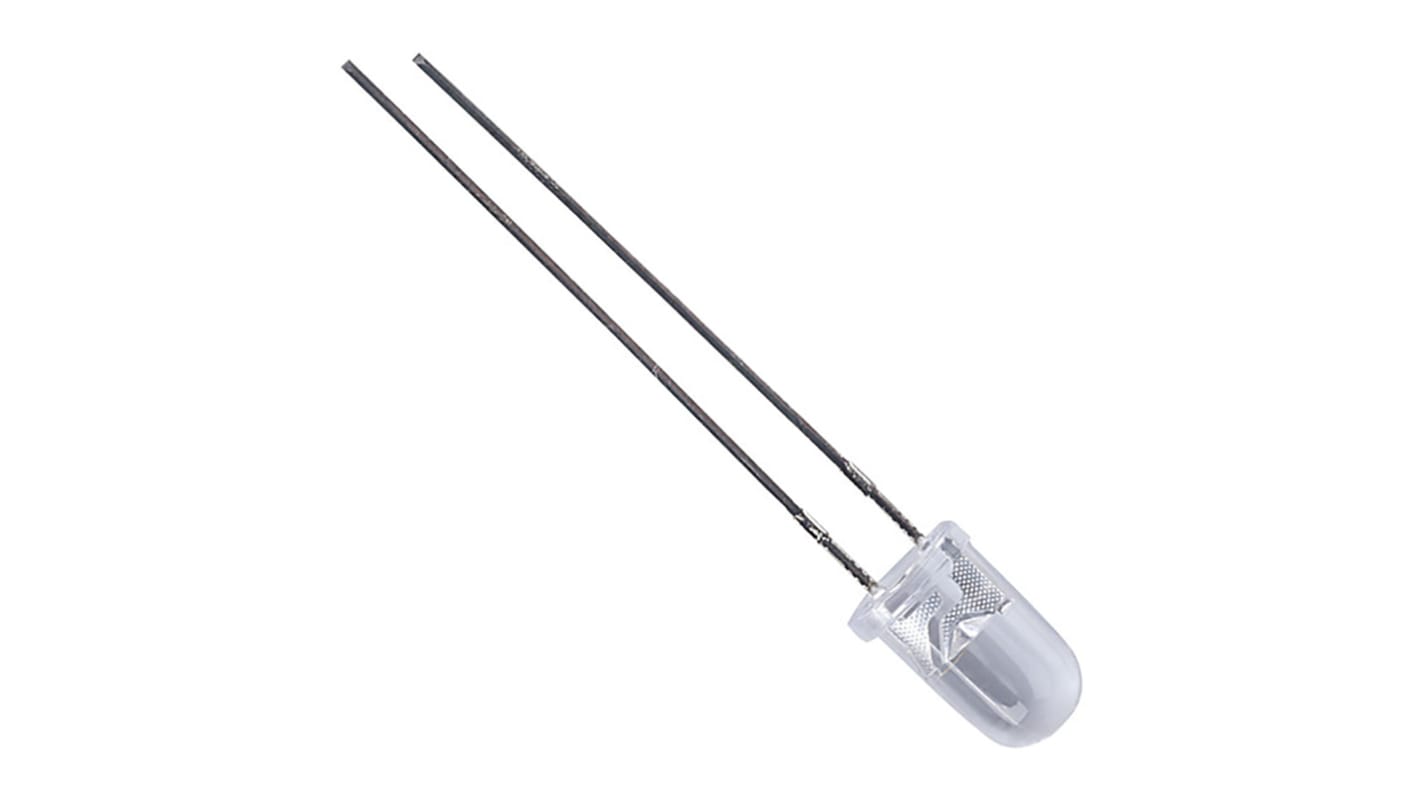

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 5 units)*
SGD5.27
(exc. GST)
SGD5.745
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Last RS stock
- 55 left, ready to ship from another location
- Final 10,685 unit(s) shipping from 19 March 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | SGD1.054 | SGD5.27 |
| 25 - 95 | SGD1.032 | SGD5.16 |
| 100 - 245 | SGD1.004 | SGD5.02 |
| 250 - 495 | SGD0.978 | SGD4.89 |
| 500 + | SGD0.952 | SGD4.76 |
*price indicative
- RS Stock No.:
- 496-6178
- Mfr. Part No.:
- HLMP-EG08-YZ000
- Manufacturer:
- Broadcom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | LED | |
| LED Colour | Red | |
| Package Type | 5 mm (T-1 3/4) | |
| Maximum Forward Current | 50mA | |
| Mount Type | Through Hole | |
| Forward Voltage | 1.9V | |
| Number of Pins | 2 | |
| Viewing Angle | 8 ° | |
| LED Luminosity | 12.6 cd | |
| Lens Dimensions | 5.00 ± 0.20 mm | |
| LED Luminous Flux | 500 mLm | |
| Lens Shape | Round | |
| Standards/Approvals | RoHS Compliant | |
| Dominant Wavelength | 626 nm | |
| Series | HLMP-E | |
| Lens Finish | Non-Diffused | |
| Lens Colour | Clear | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type LED | ||
LED Colour Red | ||
Package Type 5 mm (T-1 3/4) | ||
Maximum Forward Current 50mA | ||
Mount Type Through Hole | ||
Forward Voltage 1.9V | ||
Number of Pins 2 | ||
Viewing Angle 8 ° | ||
LED Luminosity 12.6 cd | ||
Lens Dimensions 5.00 ± 0.20 mm | ||
LED Luminous Flux 500 mLm | ||
Lens Shape Round | ||
Standards/Approvals RoHS Compliant | ||
Dominant Wavelength 626 nm | ||
Series HLMP-E | ||
Lens Finish Non-Diffused | ||
Lens Colour Clear | ||
Automotive Standard No | ||
Avago HLMP-ED/EG/EH/EL Series LEDs
The HLMP-EDxx, HLMP-EGxx, HLMP-EHxx and HLMP-ELxx series, from Avago Technologies, are extra high brightness LED lamps. This family of precision optical performance AllnGaP LEDs offer a high light output for readability in sunlight. They are also very reliable. The AllnGaP technology enables these LEDs to provide a stable light output over long periods of time.
The HLMP-ED/EG/EH/EL series are untinted LED lamps in T-1 3/4 (5mm) packages incorporating second generation optics. This produces a well defined spatial radiation pattern at specific viewing cone angles.
Made from an optical grade epoxy, the HLMP-ED/EG/EH/EL LEDs offer high temperature and high moisture resistance performance in outdoor signal and sign applications. It contains both uv-a and uv-b inhibitors to reduce the effects of long term exposure to direct sunlight.
Suitable applications for the HLMP-ED/EG/EH/EL include; traffic management, solar power signs and commercial outdoor advertising.
Features of the HLMP-ED/EG/EH/EL LEDs:
- Viewing angle: 15°, 23°, 30°
- High luminous output
- Superior resistance to moisture
Visible Light LEDs, Avago Technologies
