Broadcom 1.9 V Green LED 3 mm (T-1) Through Hole HLMP HLMP-1790
- RS Stock No.:
- 178-1558
- Mfr. Part No.:
- HLMP-1790
- Manufacturer:
- Broadcom

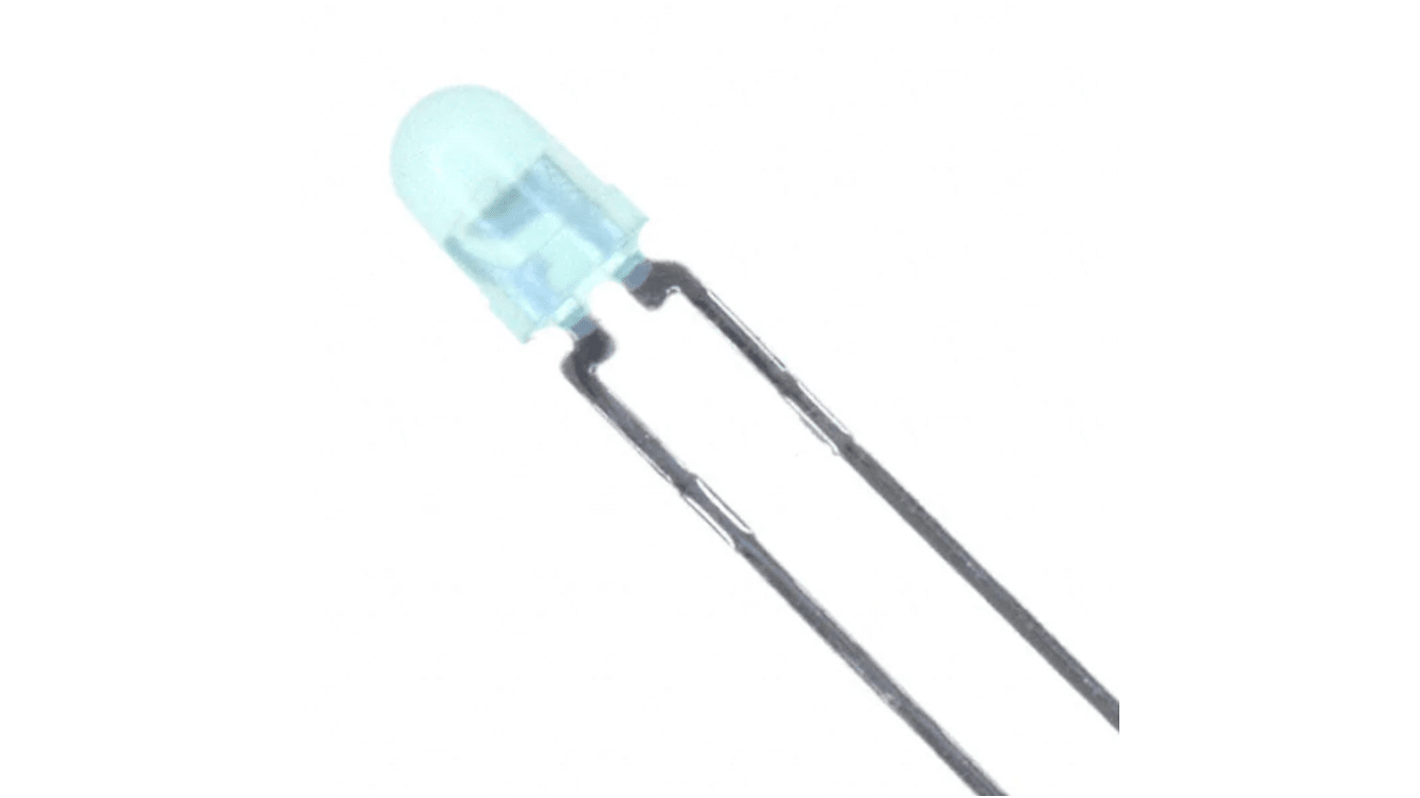

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 2000 units)*
SGD568.00
(exc. GST)
SGD620.00
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- Plus 32,000 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 8000 | SGD0.284 | SGD568.00 |
| 10000 + | SGD0.256 | SGD512.00 |
*price indicative
- RS Stock No.:
- 178-1558
- Mfr. Part No.:
- HLMP-1790
- Manufacturer:
- Broadcom
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colour | Green | |
| Product Type | LED | |
| Maximum Forward Current | 7mA | |
| Package Type | 3 mm (T-1) | |
| Packaging | Bulk | |
| Mount Type | Through Hole | |
| Maximum Power Dissipation | 15.4mW | |
| Forward Voltage | 1.9V | |
| Number of Pins | 2 | |
| Viewing Angle | 50 ° | |
| Lens Dimensions | 8.43 x 5.08 mm | |
| LED Luminosity | 2.3 mcd | |
| Lens Shape | Round | |
| Standards/Approvals | RoHS | |
| Dominant Wavelength | 569 nm | |
| Series | HLMP | |
| Lens Colour | Green | |
| Lens Finish | Diffused, Tinted | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colour Green | ||
Product Type LED | ||
Maximum Forward Current 7mA | ||
Package Type 3 mm (T-1) | ||
Packaging Bulk | ||
Mount Type Through Hole | ||
Maximum Power Dissipation 15.4mW | ||
Forward Voltage 1.9V | ||
Number of Pins 2 | ||
Viewing Angle 50 ° | ||
Lens Dimensions 8.43 x 5.08 mm | ||
LED Luminosity 2.3 mcd | ||
Lens Shape Round | ||
Standards/Approvals RoHS | ||
Dominant Wavelength 569 nm | ||
Series HLMP | ||
Lens Colour Green | ||
Lens Finish Diffused, Tinted | ||
Automotive Standard No | ||
The Broadcom tinted diffused LED lamp is designed and optimized specifically for low current operation. Luminous intensity and forward voltage are tested at 2 mA to assure consistent brightness at TTL output current levels.
Low Power
High Efficiency
CMOS-MOS Compatible
TTL Compatible
Wide Viewing Angle
Available in bulk
High-performance Green in T-1 Package
