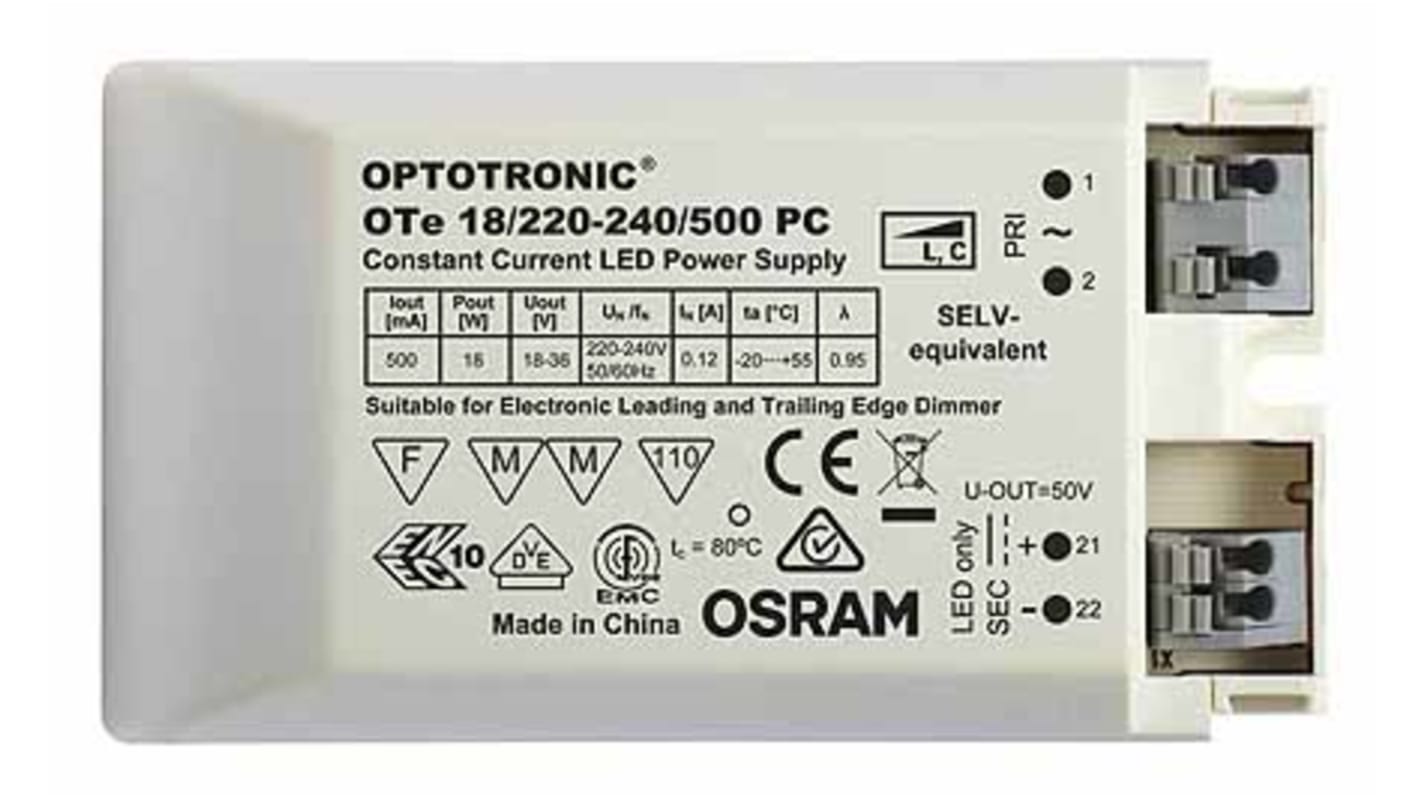

Osram LED Driver, 18 → 36V Output, 18W Output, 500mA Output, Constant Current Dimmable

RS Stock No.:: 893-0568
Mfr. Part No.:: OTE 18/220-240/500 PC
Manufacturer:: Osram

Osram LED Driver, 18 → 36V Output, 18W Output, 500mA Output, Constant Current Dimmable

1 In stock for delivery within 4 working days

Added

Price Each

SGD55.37

(exc. GST)

SGD59.80

(inc. GST)

units	Per unit
1 - 9	SGD55.37
10 - 49	SGD54.20
50 +	SGD52.58

RS Stock No.:: 893-0568
Mfr. Part No.:: OTE 18/220-240/500 PC
Manufacturer:: Osram

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

CC Power Supplies with Phasecut

The PhaseCut family of constant current dimmable LED drivers from Osram are designed for indoor applications. They come in a very compact housing which makes them ideal for applications where space is limited. The PhaseCut CC power supplies are compatible with most leading-edge and trailing-edge phase dimmers.
Their PhaseCut functionality, also known as phase control (PC), is a form of power control through pulse-width modulation (PWM).
The E-style clamp can be ordered separately for independent mounting.

Note

Osram OT Cable Clamp E-Style for independent mounting is available for purchasing, separately. The OPTOTRONIC cable clamp is on RS Stock No. 171-1597.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Output Voltage	18 → 36V
Maximum Output Power	18W
Output Current	500mA
Dimmable	Yes
Input Voltage	198 → 264 V ac
Operation	Constant Current
LED Driver Type	LED Driver
Dimming Operation	Leading Edge
AC or DC Input Voltage	ac
IP Rating	IP20
Output	18 → 36 V @ 500 mA
Voltage Rating	198 → 264V ac
Number of Outputs	1
Configuration	Sealed
Primary Type	AC-DC
Standards Met	CB, CE, CISPR 15, ENEC 10, IEC 61000-3-2, IEC 61000-3-3, IEC 61347-1, IEC 61347-2-13, IEC 61547, IEC 62384, VDE
Power Dissipation	3.5W
