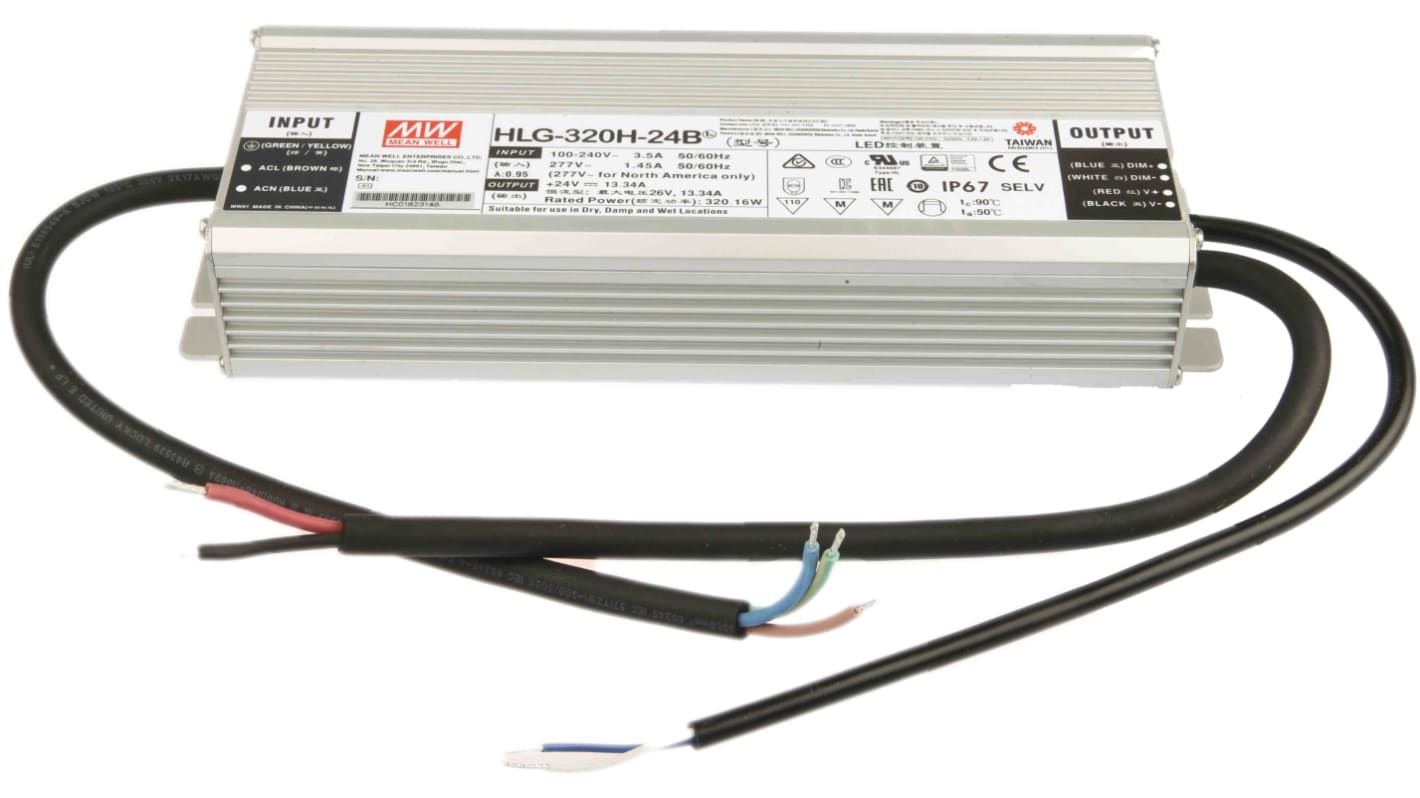

MEAN WELL LED Driver, 24 V Output, 320.16 W Output, 13.34 A 1 to 10 V PWM Resistance

RS Stock No.:: 738-1915
Distrelec Article No.:: 169-01-319
Mfr. Part No.:: HLG-320H-24B
Manufacturer:: MEAN WELL

MEAN WELL LED Driver, 24 V Output, 320.16 W Output, 13.34 A 1 to 10 V PWM Resistance

Bulk discount available

Subtotal (1 unit)*

SGD135.03

(exc. GST)

SGD147.18

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

Plus 24 unit(s) shipping from 02 February 2026
Plus 32 unit(s) shipping from 09 February 2026
Plus 24 unit(s) shipping from 24 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	SGD135.03
5 - 9	SGD133.86
10 - 24	SGD131.53
25 - 74	SGD125.81
75 +	SGD109.40

*price indicative

RS Stock No.:: 738-1915
Distrelec Article No.:: 169-01-319
Mfr. Part No.:: HLG-320H-24B
Manufacturer:: MEAN WELL

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MEAN WELL
	Output Voltage	24 V
	Product Type	LED Driver
	Maximum Output Power	320.16W
	Input Voltage	127 → 431 V dc, 90 → 305 V ac
	Mount Type	Screw
	Sub Type	LED Driver
	Dimming Operation	1 to 10 V PWM Resistance
	Input Voltage Type	AC/DC
	Terminal Type	Wire
	IP Rating	IP67
	Driver Current	13.34 A
	Operating Modes	Constant Voltage
	Number of Outputs	5
	Series	HLG-320H
	Standards/Approvals	CB, CE, CSA, EAC, EN, SELV, UL
	Configuration	Enclosed
	Primary Type	AC-DC
	Power Dissipation	320.16W

	Select all
	Brand MEAN WELL
	Output Voltage 24 V
	Product Type LED Driver
	Maximum Output Power 320.16W
	Input Voltage 127 → 431 V dc, 90 → 305 V ac
	Mount Type Screw
	Sub Type LED Driver
	Dimming Operation 1 to 10 V PWM Resistance
	Input Voltage Type AC/DC
	Terminal Type Wire
	IP Rating IP67
	Driver Current 13.34 A
	Operating Modes Constant Voltage
	Number of Outputs 5
	Series HLG-320H
	Standards/Approvals CB, CE, CSA, EAC, EN, SELV, UL
	Configuration Enclosed
	Primary Type AC-DC
	Power Dissipation 320.16W

Mean Well 320W IP67 Dimmable Constant Current/Voltage LED Driver/Power Supply - HLG-320H

HLN-320H series 320W dimmable constant current, constant voltage, LED driver / power supply with universal AC input. These IP67 dimmable LED drivers / power supplies have a built in 3 in 1 dimming function and built in active PFC function. Suitable applications for these dimmable IP67 LED drivers / power supplies include LED lighting and street lighting and can be used in dry, damp or wet locations.

Full range universal AC input

IP67 design for indoor and outdoor installation

Free air convection cooling

Built in active PFC function

Constant current level adjustable via output cable with 1 to 10 Vdc or 10V PWM signal or resistor

3 in 1 dimming function (1 to 10 Vdc or PMW signal or resistance)

Short circuit, overload, over voltage and over temperature protection

Compliance to worldwide safety regulations for lighting

EMC compliance to EN55015, EN55022 (CISPR22) Class B

Harmonic current compliance to EN61000-3-2 Class C (≥50% load); EN61000-3-3

Mean Well LED Drivers / Power Supplies - IP Rated

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 50°C operating temperature (100 Vac)
Derate output above 60°C operating temperature (230 Vac)

Approvals

cULus, TUV

Standards

UL8750, EN61347-1, EN61347-2-13 independent approved. Design refer to UL60950-1, TUV EN60950-1
