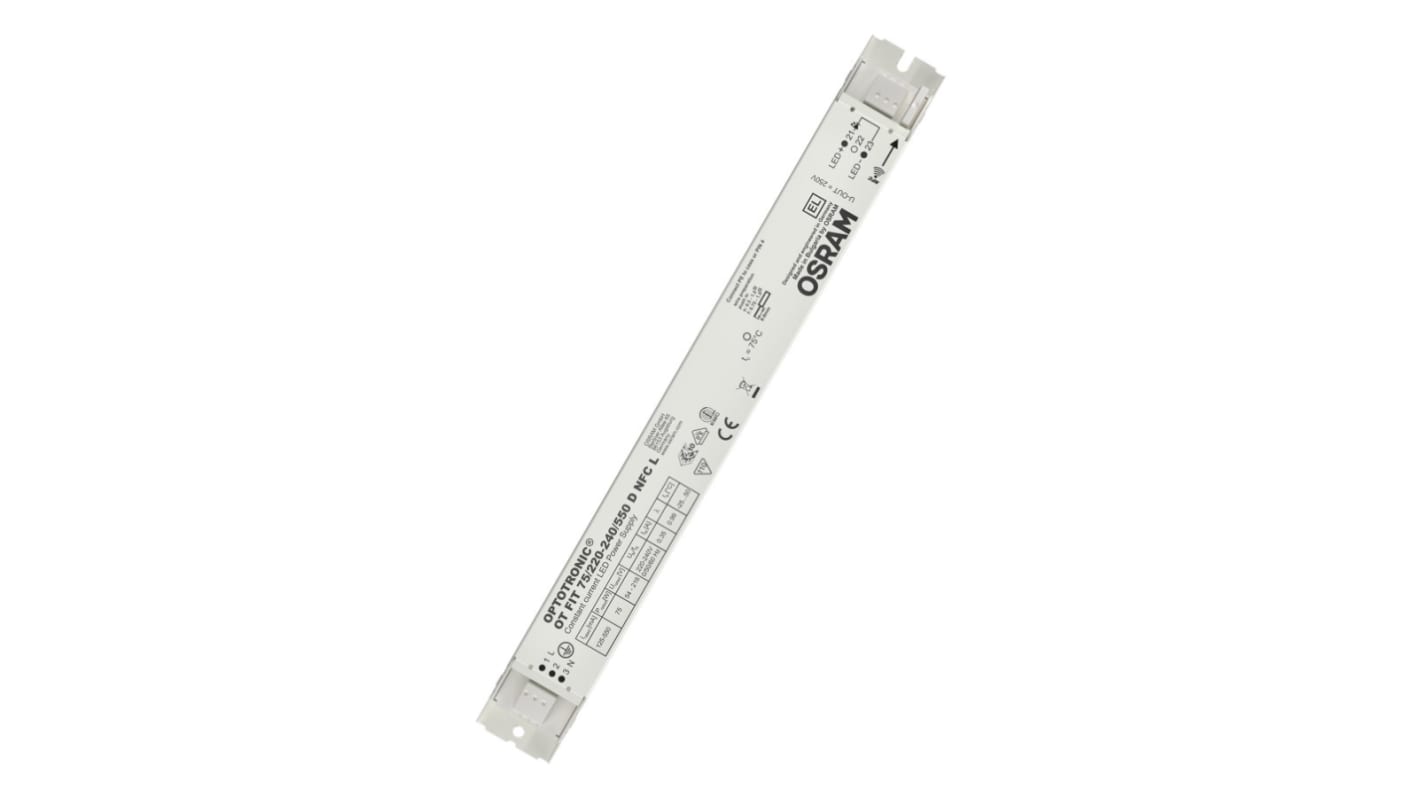

Osram Linear / Area Constant Current - Non-Dimmable, 20V, 51 V Output, 35 W Output, 250mA, 700 mA
- RS Stock No.:
- 236-8671
- Mfr. Part No.:
- OT-FIT-35/220-240/700-NFC-L
- Manufacturer:
- Osram
Bulk discount available
View bulk pricing optionSubtotal (1 unit)*
SGD37.74
(exc. GST)
SGD41.14
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | SGD37.74 |
| 5 - 9 | SGD35.49 |
| 10 - 24 | SGD33.01 |
| 25 - 49 | SGD31.02 |
| 50 + | SGD29.48 |
*price indicative
- RS Stock No.:
- 236-8671
- Mfr. Part No.:
- OT-FIT-35/220-240/700-NFC-L
- Manufacturer:
- Osram
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 20, 51V | |
| Maximum Output Power | 35W | |
| Input Voltage | 220, 240V | |
| Mount Type | Hole | |
| Sub Type | Linear / Area Constant Current - Non-Dimmable | |
| Dimming Operation | No | |
| Input Voltage Type | DC, AC | |
| Terminal Type | Cable Cross-Section | |
| IP Rating | IP20 | |
| Operating Modes | Constant Current | |
| LED Voltage | 198, 264V ac | |
| Driver Current | 250, 700mA | |
| Series | OT FIT 35/220...240/700 NFC L | |
| Standards/Approvals | EAC, RCM, CE, VDE-ENEC, CCC, BIS | |
| Number of Outputs | 1 | |
| Configuration | Enclosed | |
| Primary Type | AC-DC | |
| Power Dissipation | 3.0W | |
| Select all | ||
|---|---|---|
Brand Osram | ||
Product Type LED Driver | ||
Output Voltage 20, 51V | ||
Maximum Output Power 35W | ||
Input Voltage 220, 240V | ||
Mount Type Hole | ||
Sub Type Linear / Area Constant Current - Non-Dimmable | ||
Dimming Operation No | ||
Input Voltage Type DC, AC | ||
Terminal Type Cable Cross-Section | ||
IP Rating IP20 | ||
Operating Modes Constant Current | ||
LED Voltage 198, 264V ac | ||
Driver Current 250, 700mA | ||
Series OT FIT 35/220...240/700 NFC L | ||
Standards/Approvals EAC, RCM, CE, VDE-ENEC, CCC, BIS | ||
Number of Outputs 1 | ||
Configuration Enclosed | ||
Primary Type AC-DC | ||
Power Dissipation 3.0W | ||
- COO (Country of Origin):
- CN
The Osram's Linear / Area Constant Current is Non dimmable forward voltage LED light source within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Flexible and future-proof current setting via NFC (Near Field Communication)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
Fulfilling SVM (≤ 0.4) and PsT (≤ 1.0) standards
