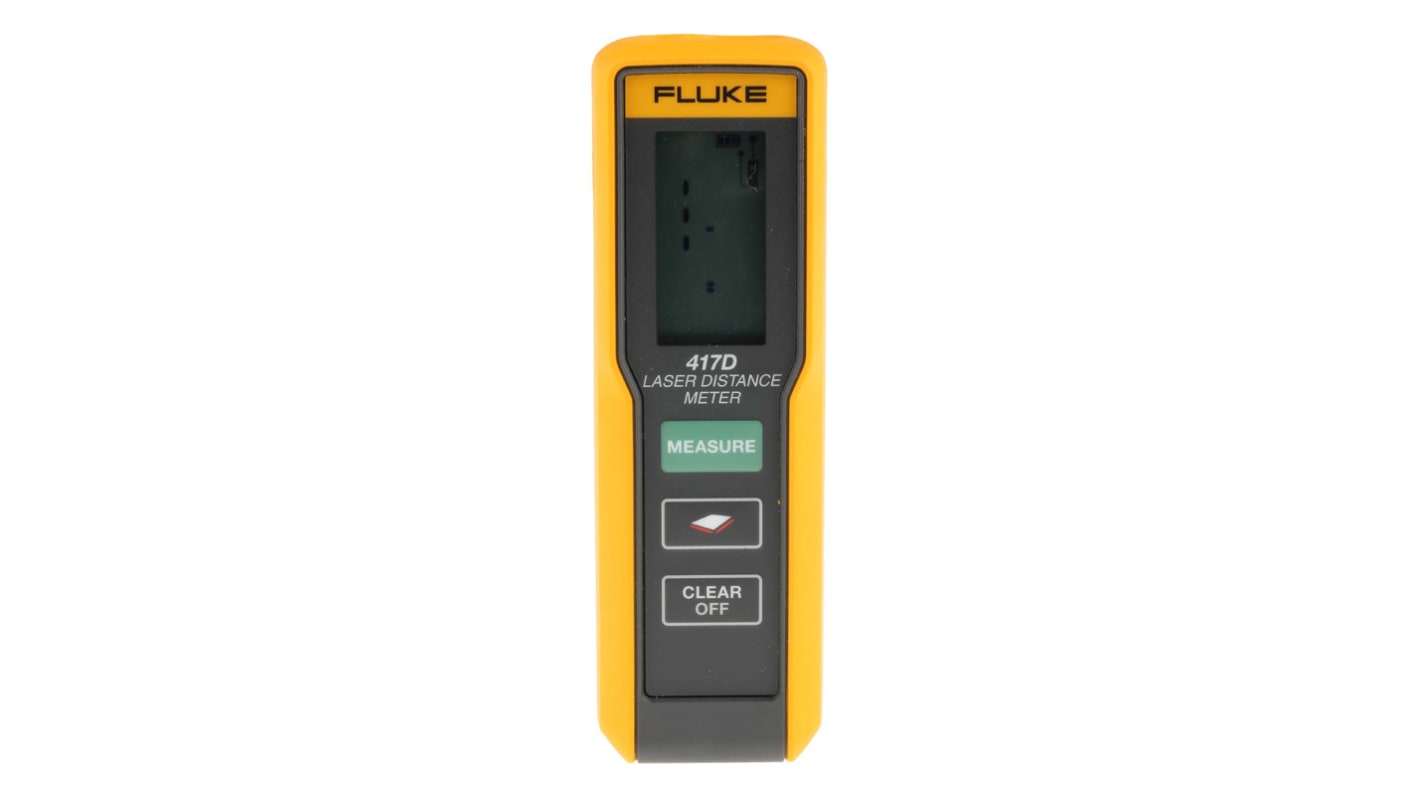

Fluke 417D Laser Measure, 0.2/40 μm Range, ±2 mm Accuracy
- RS Stock No.:
- 193-9546
- Distrelec Article No.:
- 301-65-723
- Mfr. Part No.:
- FLUKE-417D
- Manufacturer:
- Fluke
Subtotal (1 unit)*
SGD252.00
(exc. GST)
SGD274.68
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Limited stock
- 5 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | SGD252.00 |
*price indicative
- RS Stock No.:
- 193-9546
- Distrelec Article No.:
- 301-65-723
- Mfr. Part No.:
- FLUKE-417D
- Manufacturer:
- Fluke
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Accuracy | ±2 mm | |
| Unit of Measure | Imperial, Metric | |
| Measurement Range | 0.2/40 μm | |
| Product Type | Laser Measure | |
| Display Type | LCD | |
| Laser Class | Class 2 | |
| Laser Wavelength | 635nm | |
| Battery Type | AAA | |
| Power Source | Battery | |
| Weight | 95g | |
| Metric-Imperial Conversion | Yes | |
| Model Number | 417D | |
| Waterproof IP Rating | IP54 | |
| Standards/Approvals | IEC Standard No. 61010-1:2001, ISA-82.02.01, EN60825-1:2007 (Class II), UL Std. No. 61010-1 (2nd Edition), EMC 61326-1:2006, CAN/CSA-C22.2 No. 61010-1-04 | |
| Length | 2.6cm | |
| Series | 417D | |
| Width | 3.8cm | |
| Height | 11.9cm | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Accuracy ±2 mm | ||
Unit of Measure Imperial, Metric | ||
Measurement Range 0.2/40 μm | ||
Product Type Laser Measure | ||
Display Type LCD | ||
Laser Class Class 2 | ||
Laser Wavelength 635nm | ||
Battery Type AAA | ||
Power Source Battery | ||
Weight 95g | ||
Metric-Imperial Conversion Yes | ||
Model Number 417D | ||
Waterproof IP Rating IP54 | ||
Standards/Approvals IEC Standard No. 61010-1:2001, ISA-82.02.01, EN60825-1:2007 (Class II), UL Std. No. 61010-1 (2nd Edition), EMC 61326-1:2006, CAN/CSA-C22.2 No. 61010-1-04 | ||
Length 2.6cm | ||
Series 417D | ||
Width 3.8cm | ||
Height 11.9cm | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- HU
Fluke 417D Series Laser Measure, ±2mm Accuracy, 0.2/40 μm Measurement Range - FLUKE-417D
This laser measure is a handheld distance tool designed for Rapid point-and-shoot measurement in indoor and outdoor industrial settings. It delivers quick single-button readings and a backlit two-line LCD for clear targeting and results, enabling users in automation, electronics, electrical and mechanical roles to capture distances, areas and continuous measurements without ladders or tapes.
Features & Benefits
• 0.2–40m measurement range for long-reach tasks
• laser measure ±2mm accuracy for fine tolerance work
• 635 nm Class 2 laser measure improves target visibility
• Battery AAA laser distance measurer for simple field power
• Compact Fluke laser measure IP54 resists dust and splashes
• Fluke 417D LCD laser distance tool supports area calculation
• laser measure ±2mm accuracy for fine tolerance work
• 635 nm Class 2 laser measure improves target visibility
• Battery AAA laser distance measurer for simple field power
• Compact Fluke laser measure IP54 resists dust and splashes
• Fluke 417D LCD laser distance tool supports area calculation
**Applications**
• Suitable for Rapid site dimension checks in control cabinets
• Ideal for ceiling and high-level measurements without scaffolding
• Used for floor area estimation during installation planning
• Can be used for quick verification of panel and rack spacing
• Suitable for external façades with bright target visibility
• Ideal for ceiling and high-level measurements without scaffolding
• Used for floor area estimation during installation planning
• Can be used for quick verification of panel and rack spacing
• Suitable for external façades with bright target visibility
How long will the instrument operate on a pair of batteries?
Typical battery life supports up to 3,000 individual measurements using two AAA cells under normal conditions.
What environmental conditions can it tolerate during operation?
It operates between −10°C and 50°C and withstands relative humidity up to 85% within the specified temperature band.
How robust is the unit to accidental drops and field use?
The enclosure has been drop tested to 1 metre and carries an IP54 rating for splash and dust resistance.
How does the display aid use in low light or awkward positions?
The two-line illuminated LCD increases readability and lets you view both distance and calculated values simultaneously.
What standards and safety approvals does the tool meet?
It conforms to IEC 61010-1 safety requirements and is certified to applicable EMC and laser standards.
