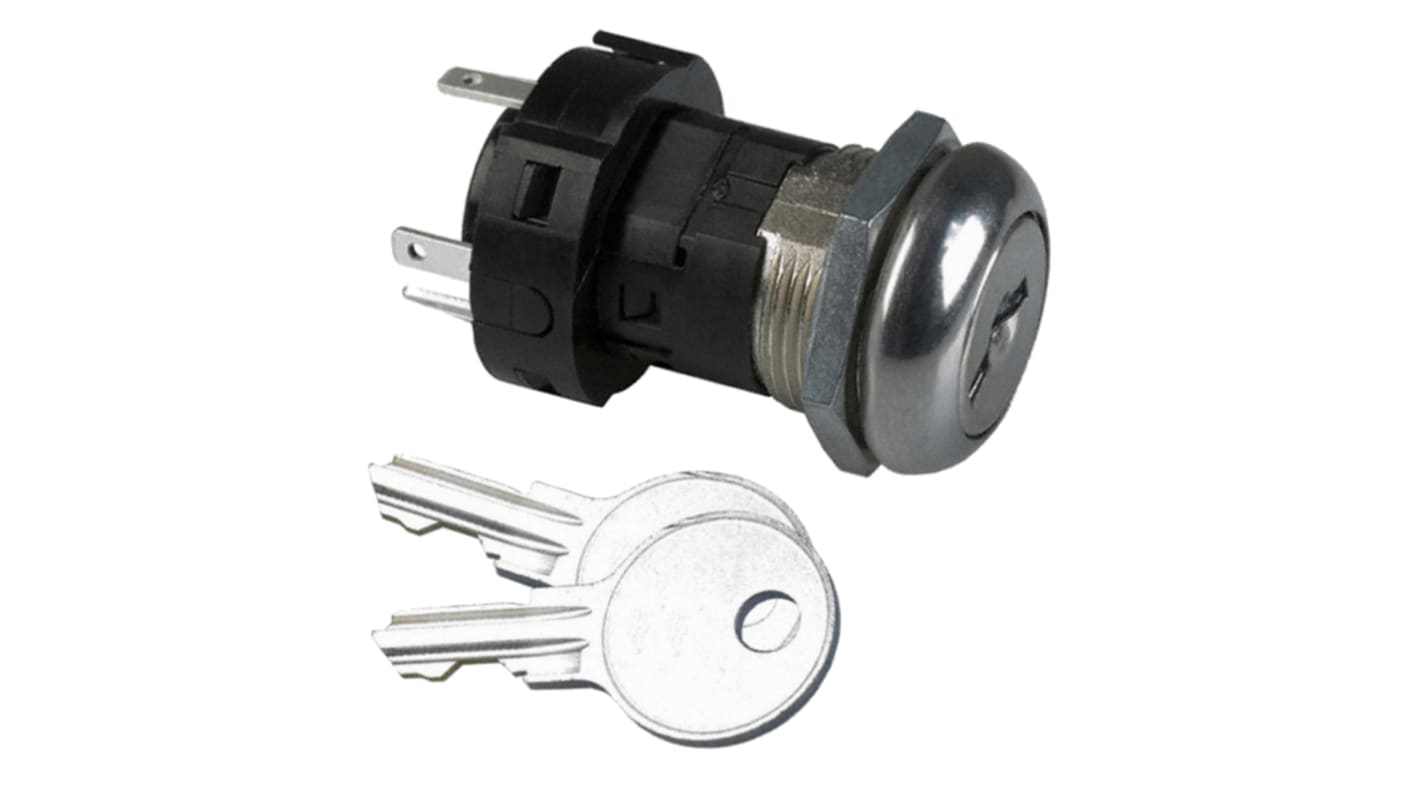

Key Switch, DPST, 12 A@ 125 V ac, 6 A@ 250 V ac 3-Way Flat-Key
- RS Stock No.:
- 863-6925
- Mfr. Part No.:
- H200AA2F205NQ
- Manufacturer:
- C & K
50 In stock for delivery within 4 working days
Added
Price Each
SGD47.87
(exc. GST)
SGD52.18
(inc. GST)
| Units | Per unit |
| 1 + | SGD47.87 |
- RS Stock No.:
- 863-6925
- Mfr. Part No.:
- H200AA2F205NQ
- Manufacturer:
- C & K
Technical data sheets
Legislation and Compliance
Product Details
C&K Tumbler Power Switchlocks - H Series
A selection of 4 tumbler power switchlocks from C & K. They have positive detent, snap together assembly and are suitable for power switching.
Material: Zinc alloy with stainless steel facing
Supplied with two nickel plated brass keys
Switch Housing: 6/6 nylon
Supplied with two nickel plated brass keys
Switch Housing: 6/6 nylon
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 3 |
| Switch Operation | Latching |
| Contact Configuration | DPST |
| Contact Current Rating | 12 A@ 125 V ac, 6 A@ 250 V ac |
| Key Type | Flat |
| Terminal Type | Quick Connect |
| Case Material | Nylon |
| Bezel Shape | Round |
| Application | Machine Controls, Elevators |
| Depth Behind Panel | 28.35mm |
| Key Index Angle | 45° |
| Contact Material | Silver |
| Voltage Rating AC | 250 V, 125V |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
