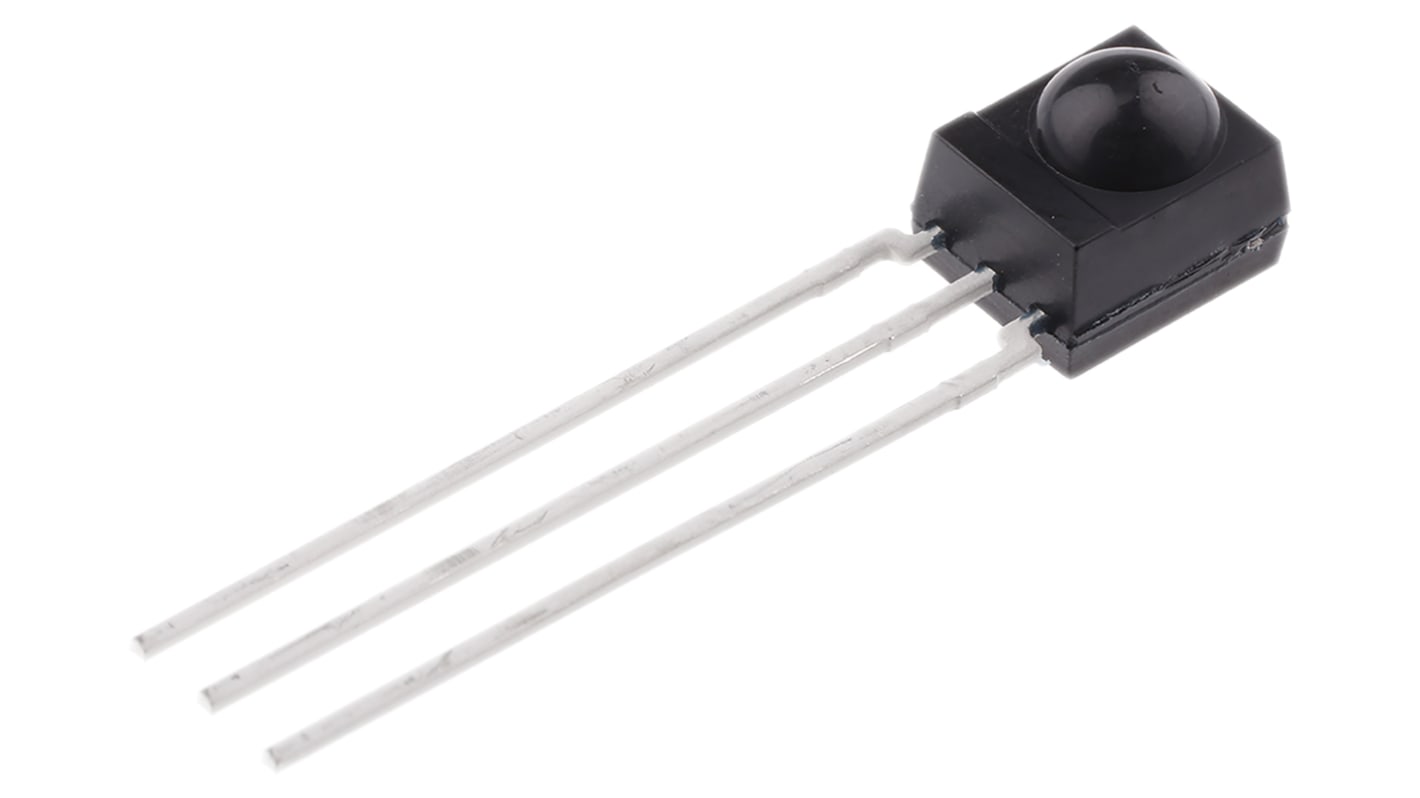

Name: Vishay TSOP4830, 30kHz IR Receiver, 950nm, 45m Range, Through Hole, 6 x 5.6 x 6.95mm
Brand: Vishay
SKU: 708-5575
Price: 1.17 SGD
Availability: Discontinued

Vishay TSOP22/24/44/48 Series IR Receiver Modules

The TSOP22.., TSOP48.., TSOP24.. and TSOP44.. series are miniaturized IR receiver modules for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR
filter.
The demodulated output signal can be directly connected to a microprocessor for decoding.
The TSOP24.., TSOP44.. series devices are optimized to suppress almost all spurious pulses from Wi-Fi and CFL sources. They may suppress some data signals if continuously transmitted.
The TSOP22.., TSOP48.. series devices are provided primarily for compatibility with old AGC2 designs. New designs should prefer the TSOP24.., TSOP44.. series containing the newer AGC4.
These components have not been qualified according to automotive specifications.

• Improved immunity against HF and RF noise
• Low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Supply voltage: 2.5 V to 5.5 V
• Improved immunity against optical noise
• Insensitive to supply voltage ripple and rnoise

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

IR Remote Control Receivers, Vishay Semiconductor

Select all	Attribute	Value
	Brand	Vishay
	Carrier Frequency	30kHz
	Maximum Transmission Distance	45m
	Wavelength of Peak Sensitivity	950nm
	Output Current	5mA
	Number of Pins	3
	Mounting Type	Through Hole
	Dimensions	6 x 5.6 x 6.95mm
	Height	6.95mm
	Length	6mm
	Width	5.6mm
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-25 °C
	Operating Temperature Range	-25 → +85 °C

	Select all
	Brand Vishay
	Carrier Frequency 30kHz
	Maximum Transmission Distance 45m
	Wavelength of Peak Sensitivity 950nm
	Output Current 5mA
	Number of Pins 3
	Mounting Type Through Hole
	Dimensions 6 x 5.6 x 6.95mm
	Height 6.95mm
	Length 6mm
	Width 5.6mm
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -25 °C
	Operating Temperature Range -25 → +85 °C

Vishay TSOP4830, 30kHz IR Receiver, 950nm, 45m Range, Through Hole, 6 x 5.6 x 6.95mm

Vishay TSOP22/24/44/48 Series IR Receiver Modules

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
