Parker Synthetic Rubber Hydraulic Hose Assembly, 420 bar Max Pressure
- RS Stock No.:
- 174-635
- Mfr. Part No.:
- 797TC-12
- Manufacturer:
- Parker
Subtotal (1 reel of 40 metres)*
SGD4,414.26
(exc. GST)
SGD4,811.54
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
Temporarily out of stock
- Shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | SGD4,414.26 | SGD110.357 |
*price indicative
- RS Stock No.:
- 174-635
- Mfr. Part No.:
- 797TC-12
- Manufacturer:
- Parker
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Parker | |
| Product Type | Hydraulic Hose Assembly | |
| Connection Size A | 3/4 in | |
| Inside Diameter | 19.1 mm | |
| Maximum Operating Pressure | 420 bar | |
| Outside Diameter | 23.9 mm | |
| Inner Hose Material | Rubber | |
| Reinforcing Material | Steel | |
| Cover Material | Synthetic Rubber | |
| Minimum Operating Temperature | -40°F | |
| Maximum Operating Temperature | 257°F | |
| Standards/Approvals | MSHA TC, ISO 18752, ST & CP covers only, Type DC | |
| Series | 77 | |
| Select all | ||
|---|---|---|
Brand Parker | ||
Product Type Hydraulic Hose Assembly | ||
Connection Size A 3/4 in | ||
Inside Diameter 19.1 mm | ||
Maximum Operating Pressure 420 bar | ||
Outside Diameter 23.9 mm | ||
Inner Hose Material Rubber | ||
Reinforcing Material Steel | ||
Cover Material Synthetic Rubber | ||
Minimum Operating Temperature -40°F | ||
Maximum Operating Temperature 257°F | ||
Standards/Approvals MSHA TC, ISO 18752, ST & CP covers only, Type DC | ||
Series 77 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT

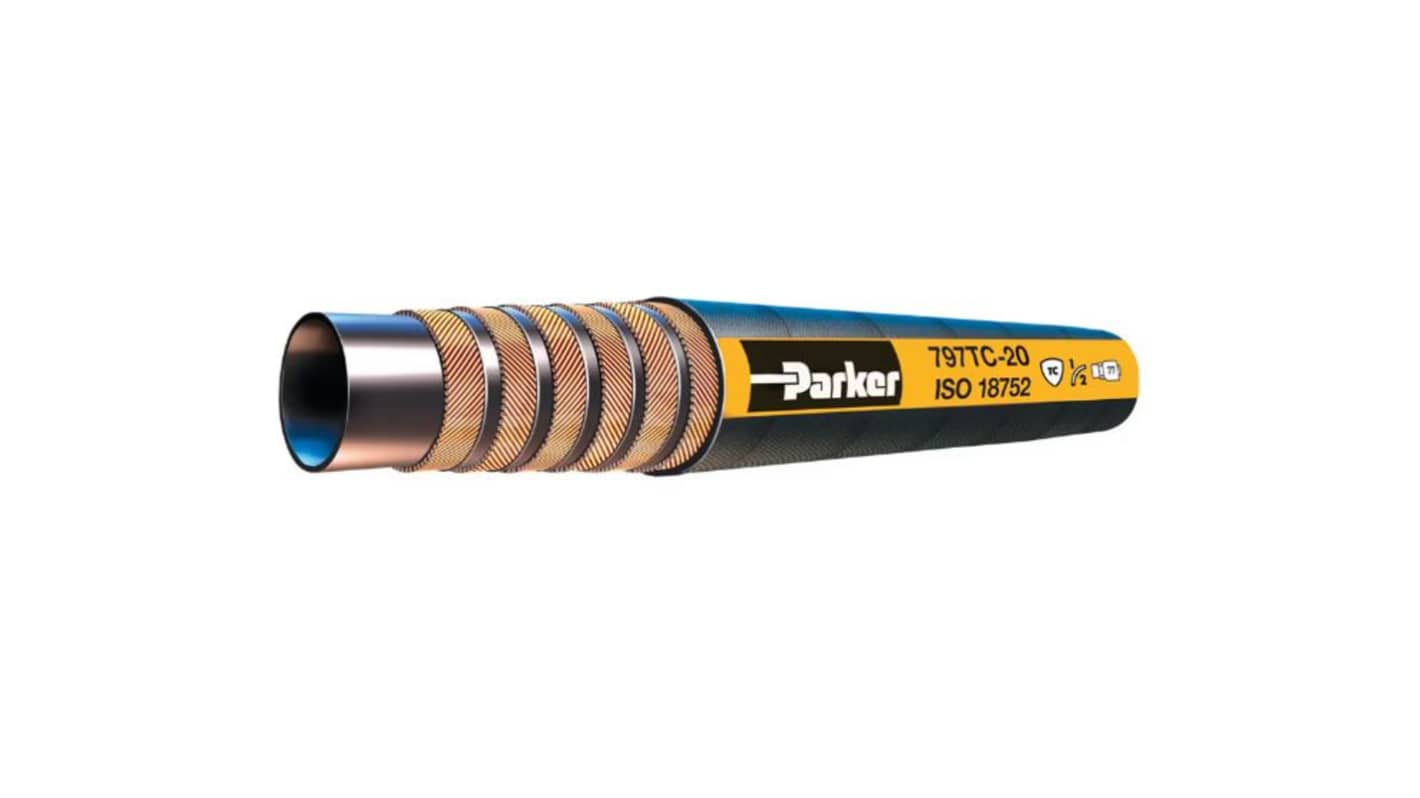

The Parker Hydraulic Constant Working Pressure Hose designed to deliver consistency and reliability. The 797 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 797 hose is designed, built and tested to the ISO 18752 performance specifications.
Half SAE bend radius for ease of installation and low force to flex
30% smaller O.D. compared to standard SAE spiral hose
6000 PSI constant working pressure in all sizes
Less hose weight than SAE spiral
