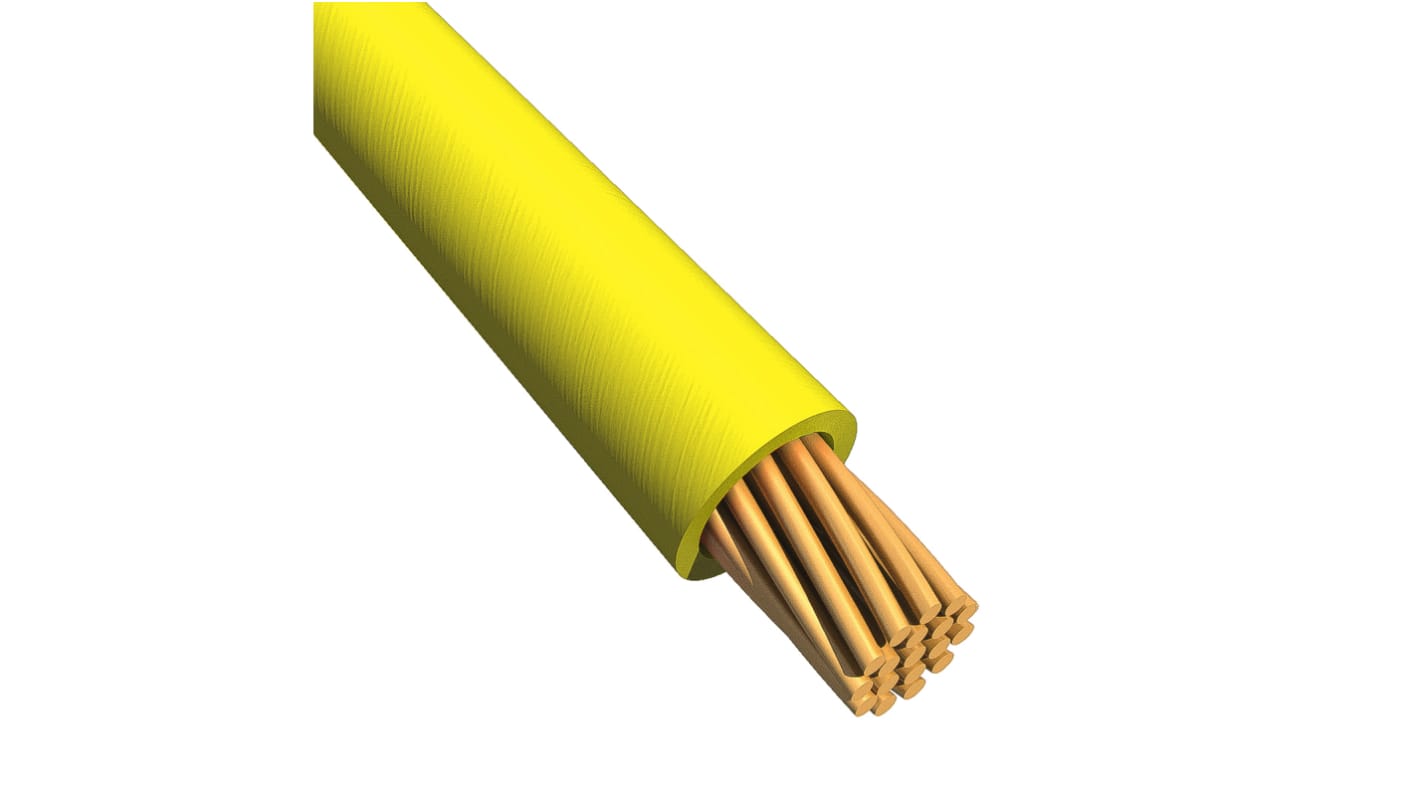

Alpha Wire Ecogen Ecowire Series Yellow 0.2 mm² Hook Up Wire, 24 AWG, 7, 305 m, Modified Polyphenylene Ether, 6712 YL001
- RS Stock No.:
- 741-8035
- Mfr. Part No.:
- 6712 YL001
- Manufacturer:
- Alpha Wire
Bulk discount available
Subtotal (1 reel of 305 metres)*
SGD457.67
(exc. GST)
SGD498.86
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 2 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 49 | SGD457.67 | SGD1.501 |
| 50 + | SGD425.98 | SGD1.397 |
*price indicative
- RS Stock No.:
- 741-8035
- Mfr. Part No.:
- 6712 YL001
- Manufacturer:
- Alpha Wire
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.2mm² | |
| Jacket Colour | Yellow | |
| American Wire Gauge | 24AWG | |
| Core Strands | 7 | |
| Cable Length | 305m | |
| Outside Diameter | 0.043in | |
| Voltage | 600V | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Copper | |
| Sub Type | EcoWire | |
| Standards/Approvals | CE, CSA, UL | |
| Jacket Material | Modified Polyphenylene Ether | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant | |
| Series | Ecogen Ecowire | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.2mm² | ||
Jacket Colour Yellow | ||
American Wire Gauge 24AWG | ||
Core Strands 7 | ||
Cable Length 305m | ||
Outside Diameter 0.043in | ||
Voltage 600V | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Copper | ||
Sub Type EcoWire | ||
Standards/Approvals CE, CSA, UL | ||
Jacket Material Modified Polyphenylene Ether | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant | ||
Series Ecogen Ecowire | ||
Belden Ecogen Ecowire Series Hook Up Wire, 0.2mm² Cross Sectional Area, Yellow - 6712 YL001
This hook-up wire is a flexible single-core cable designed for general-purpose electrical connections in industrial and electronic systems. It provides insulated copper conductors for signal and power interconnections where a compact, colour-coded lead is required, and is suited to installations requiring elevated temperature performance.
Features & Benefits
• 0.2mm² conductor offers Compact cross section for tight routing
• 7-strand construction delivers enhanced flexibility for frequent movement
• 600Vrms rating allows use on low-voltage power and control circuits
• Temperature range -40°C to 105°C supports hot-environment operation
• VW-1 and IEC 60332-2 flame behaviour reduces fire spread risk
• Modified polyphenylene ether jacket provides halogen-free insulation
• 7-strand construction delivers enhanced flexibility for frequent movement
• 600Vrms rating allows use on low-voltage power and control circuits
• Temperature range -40°C to 105°C supports hot-environment operation
• VW-1 and IEC 60332-2 flame behaviour reduces fire spread risk
• Modified polyphenylene ether jacket provides halogen-free insulation
**Applications**
• Suitable for wiring control panels in automation equipment
• Ideal for internal wiring of electronic devices and instruments
• Used for field terminations in machinery harnesses
• Can be used for interconnects in electrical assemblies on machines
• Ideal for internal wiring of electronic devices and instruments
• Used for field terminations in machinery harnesses
• Can be used for interconnects in electrical assemblies on machines
What conductor composition ensures conductivity and pliability?
The conductor is copper MADE up of seven strands, combining electrical conductivity with improved flexibility compared with a solid core.
How is the product packaged for continuous installation runs?
It is supplied on spools offering continuous lengths such as 100 ft and 1,000 ft to aid uninterrupted cable pulls.
How does the insulation support regulatory and environmental requirements?
The jacket is halogen-free modified polyphenylene ether and the construction complies with relevant electrical safety and environmental directives listed in the specification.
What mechanical constraints should be observed during installation?
Maintain a minimum bend radius of 10x cable diameter and limit pull tension to the specified maximum to prevent conductor or insulation damage.
Standards
UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant
