Lapp H07V-K Series Red 1.5 mm² Hook Up Wire, 30/30, 100 m, 4520041, Polyvinyl Chloride
- RS Stock No.:
- 724-4399
- Mfr. Part No.:
- 4520041
- Manufacturer:
- Lapp
Bulk discount available
Subtotal (1 reel of 100 metres)*
SGD130.44
(exc. GST)
SGD142.18
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- Plus 100 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 24 | SGD130.44 | SGD1.304 |
| 25 + | SGD123.93 | SGD1.239 |
*price indicative
- RS Stock No.:
- 724-4399
- Mfr. Part No.:
- 4520041
- Manufacturer:
- Lapp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 1.5 mm² | |
| Jacket Colour | Red | |
| Core Strands | 30/30 | |
| Cable Length | 100m | |
| Outside Diameter | 3 mm | |
| Voltage | 750 V | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Standards/Approvals | BS 6004, BS EN 50525-2-31, RoHS Compliant | |
| Minimum Operating Temperature | -30°C | |
| Sub Type | Power and Control Cable | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flame Retardant | |
| Hazardous Area Certification | No | |
| Series | H07V-K | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 1.5 mm² | ||
Jacket Colour Red | ||
Core Strands 30/30 | ||
Cable Length 100m | ||
Outside Diameter 3 mm | ||
Voltage 750 V | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Standards/Approvals BS 6004, BS EN 50525-2-31, RoHS Compliant | ||
Minimum Operating Temperature -30°C | ||
Sub Type Power and Control Cable | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flame Retardant | ||
Hazardous Area Certification No | ||
Series H07V-K | ||
- COO (Country of Origin):
- DE

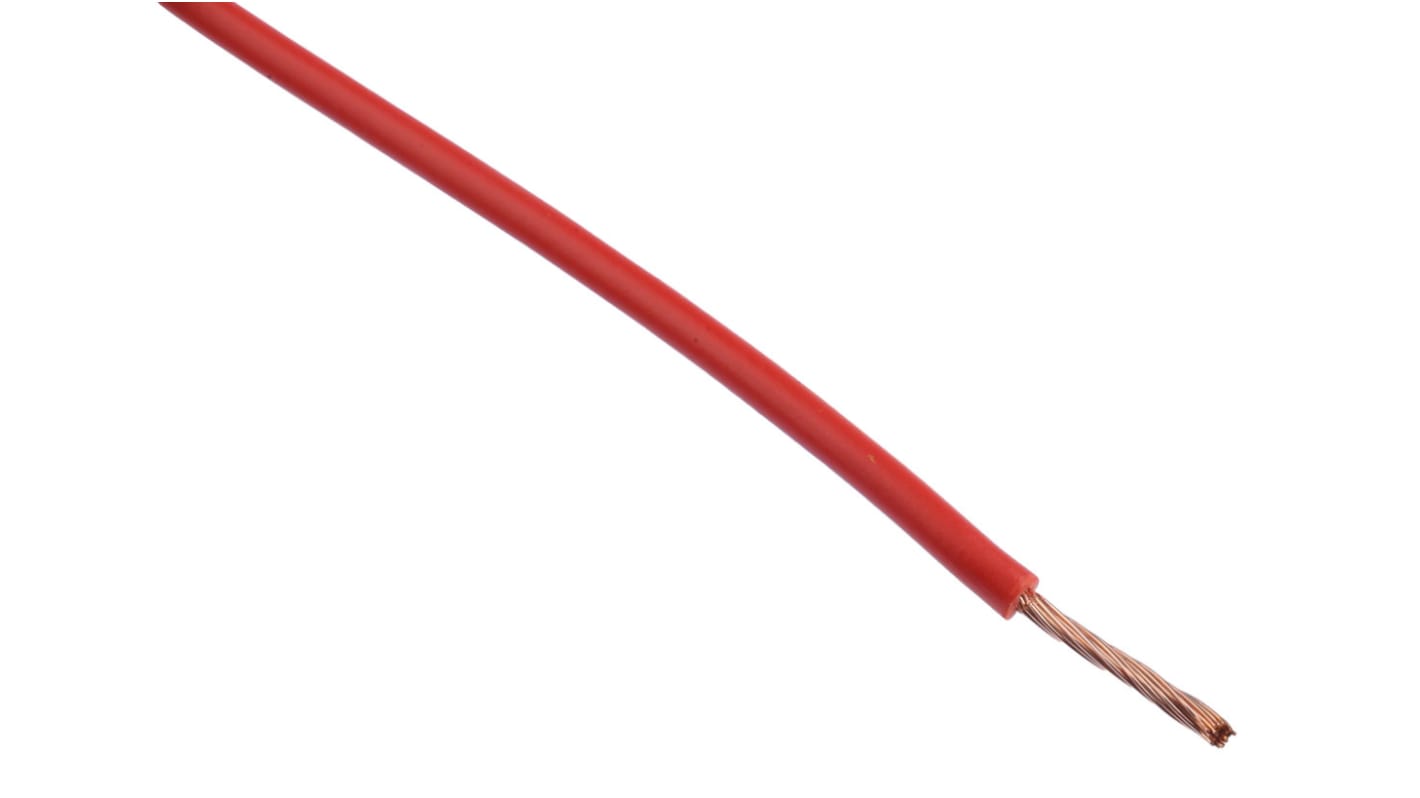

LAPP Hook Up Wire, Red, 30/30 Core Strands - 4520041
Get your power applications connected with this red hook up wire from LAPP. Its stranded conductors mean it's flexible rather than rigid, so installation in complex setups is a cinch. As the outer sheath is resistant to chemicals and abrasion, this is a durable option for use in contaminated industrial settings. With an outer diameter of 3mm and cross-sectional area of 1.5mm², the cable fits easily into small spaces such as control cabinets.
Features & Benefits
• PVC insulation is flame-retardant for safety in the event of fire
• Operating temperature range of -30°C to +80°C in fixed installation, so it's suitable for use in challenging conditions
• Copper conductor material provides excellent thermal conductivity
Applications
• Power management
• Industrial machinery
• Lighting systems
• Medical equipment
How heavy is this hook up wire?
This hook up wire weighs 22kg/km, so it's a light option that won't add unnecessary load to your equipment.
