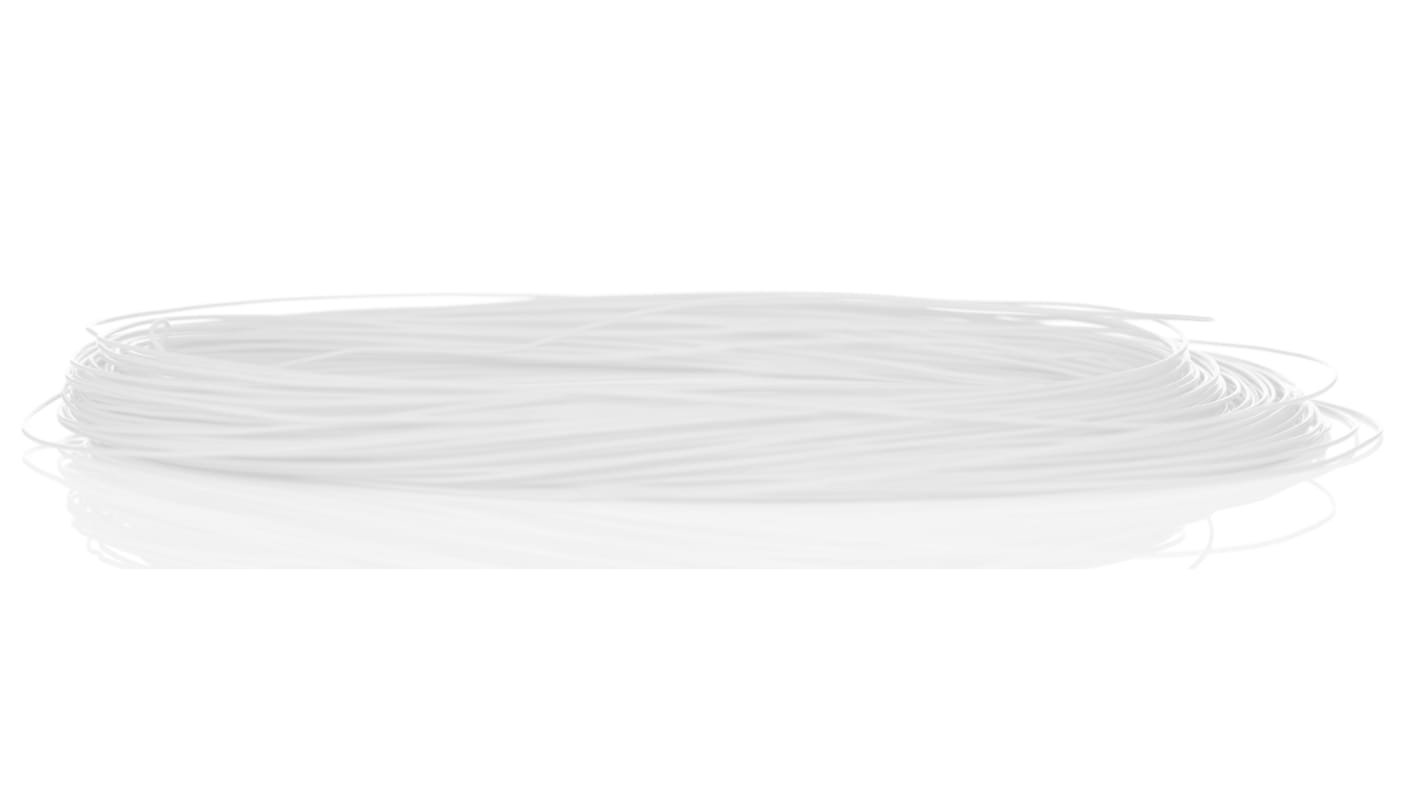

RS PRO White 0.08 mm² Hook Up Wire, 28 AWG, 1/0.32 mm, 50m, ETFE Insulation

The RS PRO range of ETFE insulated wire keeps on improving. We are pleased to offer a selection of 28 AWG equipment wire that is flexible, constructed from silver-plated copper wire, and insulated with ETFE. This high-quality single-core wire is the ideal solution for electronic wiring and solderless wrap connections and compatible high-temperature applications.

Copper is the go-to metal for nearly all cable wiring due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire.

ETFE equipment wire is commonly used in extreme environments. They offer high temperature, low smoke, and flame-retardant properties and resistance to chemicals, oils, fuels, and water.

• Voltage rating 300 V
• Core Strands: 1/0.32 mm
• Silver-plated copper wire - 28 AWG (American Wire Gauge)
• Cross Sectional Area: 0.08 mm²
• Insulation: ETFE
• Supplied on 50 m reel
• RoHS

• 28 AWG
• Conductor structure: 1/0.32mm
• Insulation dimension: 0.62±0.05mm
• Insulation tensile strength: ≧34.5 Mpa
• Insulation elongation: ≧100%　
• Rated Temperature: - 65 °C to +160 °C

• White; RS stock no: 207-7136
• Black; RS stock no: 207-7137
• Red; RS stock no: 207-7138
• Blue; RS stock no: 207-7139
• Green; RS stock no: 207-7140

ETFE Equipment Wire has a variety of application use such as;

• Industrial electrical installations
• Harsh environments
• Electronic equipment

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions
