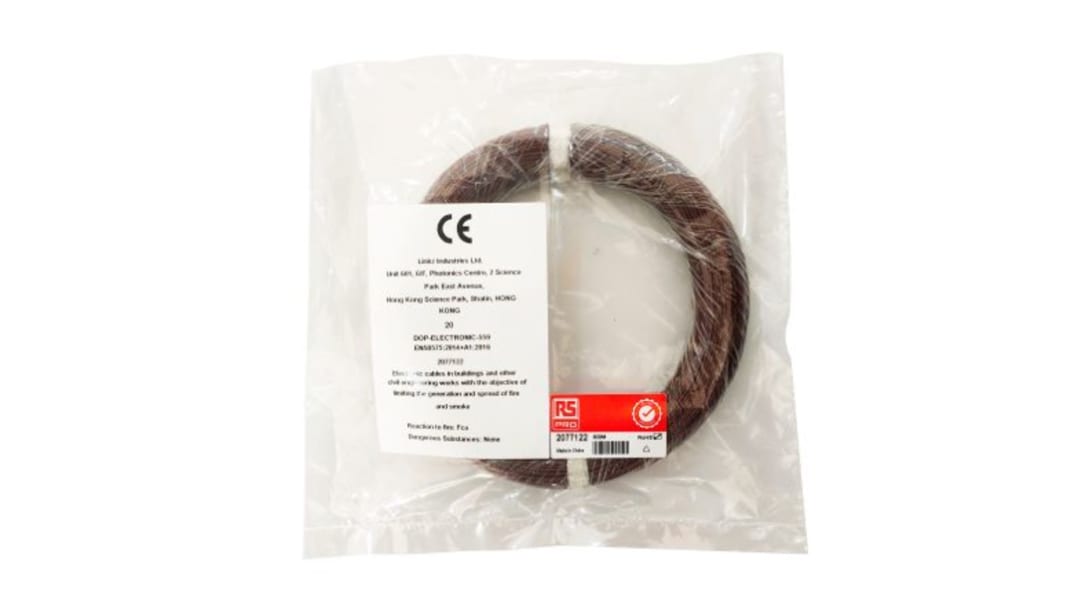

RS PRO Brown 0.2 mm² Hook Up Wire, 24 AWG, 1/0.51 mm, 50m, ETFE Insulation
- RS Stock No.:
- 207-7126
- Manufacturer:
- RS PRO
Discontinued product
- RS Stock No.:
- 207-7126
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | Brown | |
| American Wire Gauge | 24 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 1/0.51 mm | |
| Length | 50m | |
| Insulation Material | ETFE | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +160°C | |
| Minimum Operating Temperature | -65°C | |
| Conductor Material | Silver Plated Copper | |
| Cable Type | Single Core | |
| Series | RS PRO | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.15mm | |
| Number of Strands | 1 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour Brown | ||
American Wire Gauge 24 AWG | ||
Cable Shape Single Core | ||
Core Strands 1/0.51 mm | ||
Length 50m | ||
Insulation Material ETFE | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +160°C | ||
Minimum Operating Temperature -65°C | ||
Conductor Material Silver Plated Copper | ||
Cable Type Single Core | ||
Series RS PRO | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.15mm | ||
Number of Strands 1 | ||
