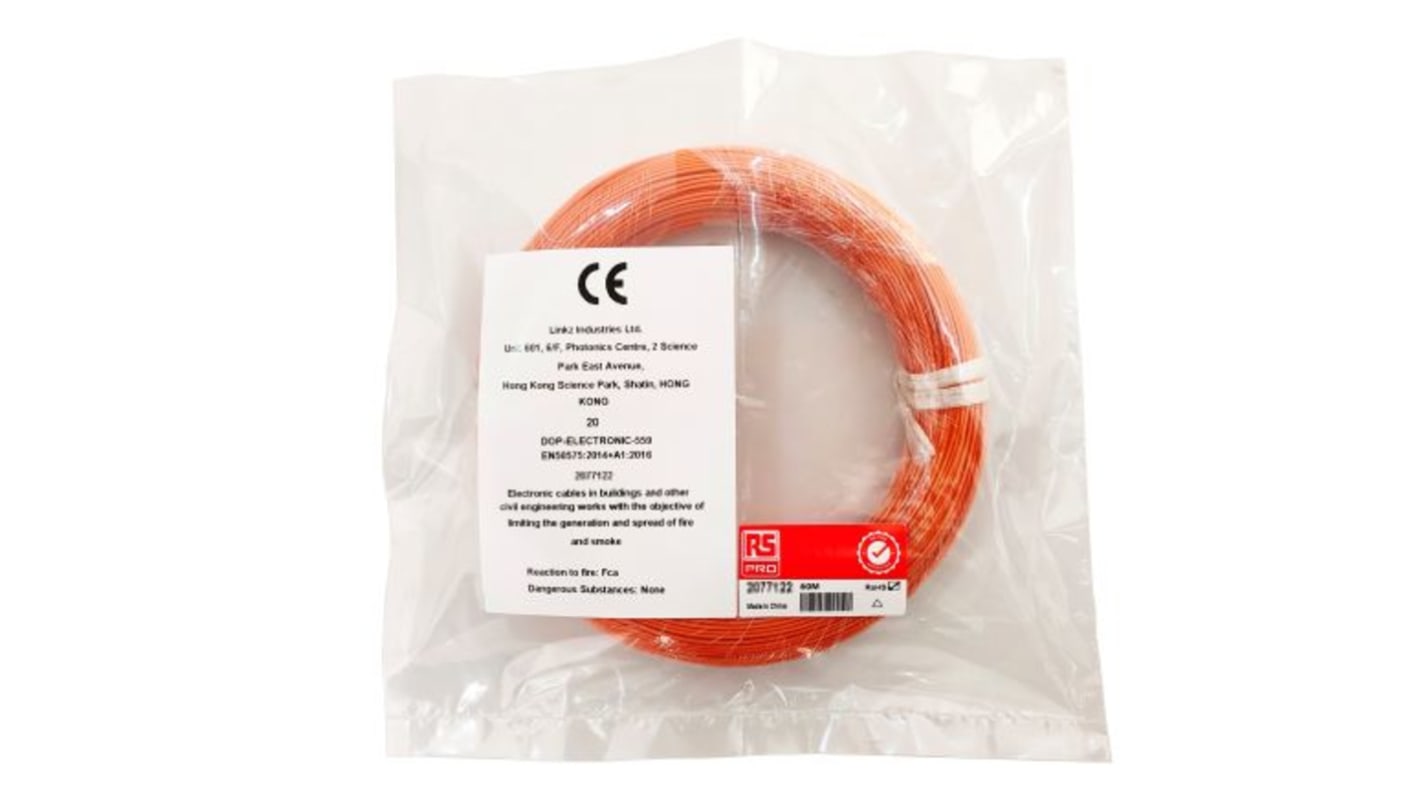

RS PRO Orange 0.2mm² Hook Up Wire, 24 AWG, 1/0.51 mm, 50m, ETFE Insulation

RS Stock No.:: 207-7124
Manufacturer:: RS PRO

RS PRO Orange 0.2mm² Hook Up Wire, 24 AWG, 1/0.51 mm, 50m, ETFE Insulation

Subtotal (1 reel of 50 metres)**

SGD37.69

(exc. GST)

SGD41.08

(inc. GST)

31 In stock for delivery within 4 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over SGD150.00 (ex GST)

Real time qty checker

Reel(s)	Per Reel	Per Metre**
1 +	SGD37.69	SGD0.754

**price indicative

RS Stock No.:: 207-7124
Manufacturer:: RS PRO

RS PRO ETFE Equipment Wire – 24 AWG

The RS PRO range of ETFE insulated wire keeps on improving. We are pleased to offer a selection of 24 AWG equipment wire that is flexible, constructed from silver-plated copper wire, and insulated with ETFE. This high-quality single-core wire is the ideal solution for electronic wiring and solderless wrap connections and compatible high-temperature applications.

Benefits of a copper conductor

Copper is the go-to metal for nearly all cable wiring due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire.

Benefits of ETFE equipment wire

ETFE equipment wire is commonly used in extreme environments. They offer high temperature, low smoke, and flame-retardant properties and resistance to chemicals, oils, fuels, and water.

Features and Benefits

• Voltage rating 300 V

• Silver-plated copper wire

• Insulation: ETFE

• Supplied on 50 m reel

• RoHS

Specification

• 24 AWG (American Wire Gauge)

• Core Strands: 1/0.51 mm

• Conductor dimensions: 0.51±0.01 mm

• Cross-Sectional Area: 0.2 mm²

• Insulation dimension: 0.81±0.05 mm

• Insulation tensile strength: ≧34.5 Mpa

• Insulation elongation: ≧100%

• Rated Temperature: - 65 °C to +160 °C

RS PRO ETFE Equipment Wire Colour Option

• Green, 50 m reel = RS Stock no: 207-7122

• Yellow, 50 m reel = RS Stock no: 207-7123

• Orange, 50 m reel = RS Stock no: 207-7124

• Blue, 50 m reel = RS Stock no: 207-7125

• Brown, 50 m reel = RS Stock no: 207-7126

• Grey, 50 m reel = RS Stock no: 207-7127

• Violet, 50 m reel = RS Stock no: 207-7128

• White, 50 m reel = RS Stock no: 207-7150

• Black, 50 m reel = RS Stock no: 207-7154

• Red, 50 m reel = RS Stock no: 207-7155

Applications

ETFE Equipment Wire has a variety of application use such as;

• Industrial electrical installations

• Harsh environments

• Electronic equipment

Why would you choose RS PRO for equipment wire?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	0.2mm²
	Sheath Colour	Orange
	Cable Shape	Single Core
	American Wire Gauge	24 AWG
	Core Strands	1/0.51 mm
	Length	50m
	Insulation Material	ETFE
	Voltage Rating	300 V
	Minimum Operating Temperature	-65°C
	Maximum Operating Temperature	+160°C
	Conductor Material	Silver Plated Copper
	Cable Type	Single Core
	Series	RS PRO
	Hook Up Wire Type	High Temperature
	Insulation Wall Thickness	0.15mm
	Size of Strands	mm
	Number of Strands	1

	Select all
	Brand RS PRO
	Cross Sectional Area 0.2mm²
	Sheath Colour Orange
	Cable Shape Single Core
	American Wire Gauge 24 AWG
	Core Strands 1/0.51 mm
	Length 50m
	Insulation Material ETFE
	Voltage Rating 300 V
	Minimum Operating Temperature -65°C
	Maximum Operating Temperature +160°C
	Conductor Material Silver Plated Copper
	Cable Type Single Core
	Series RS PRO
	Hook Up Wire Type High Temperature
	Insulation Wall Thickness 0.15mm
	Size of Strands mm
	Number of Strands 1
