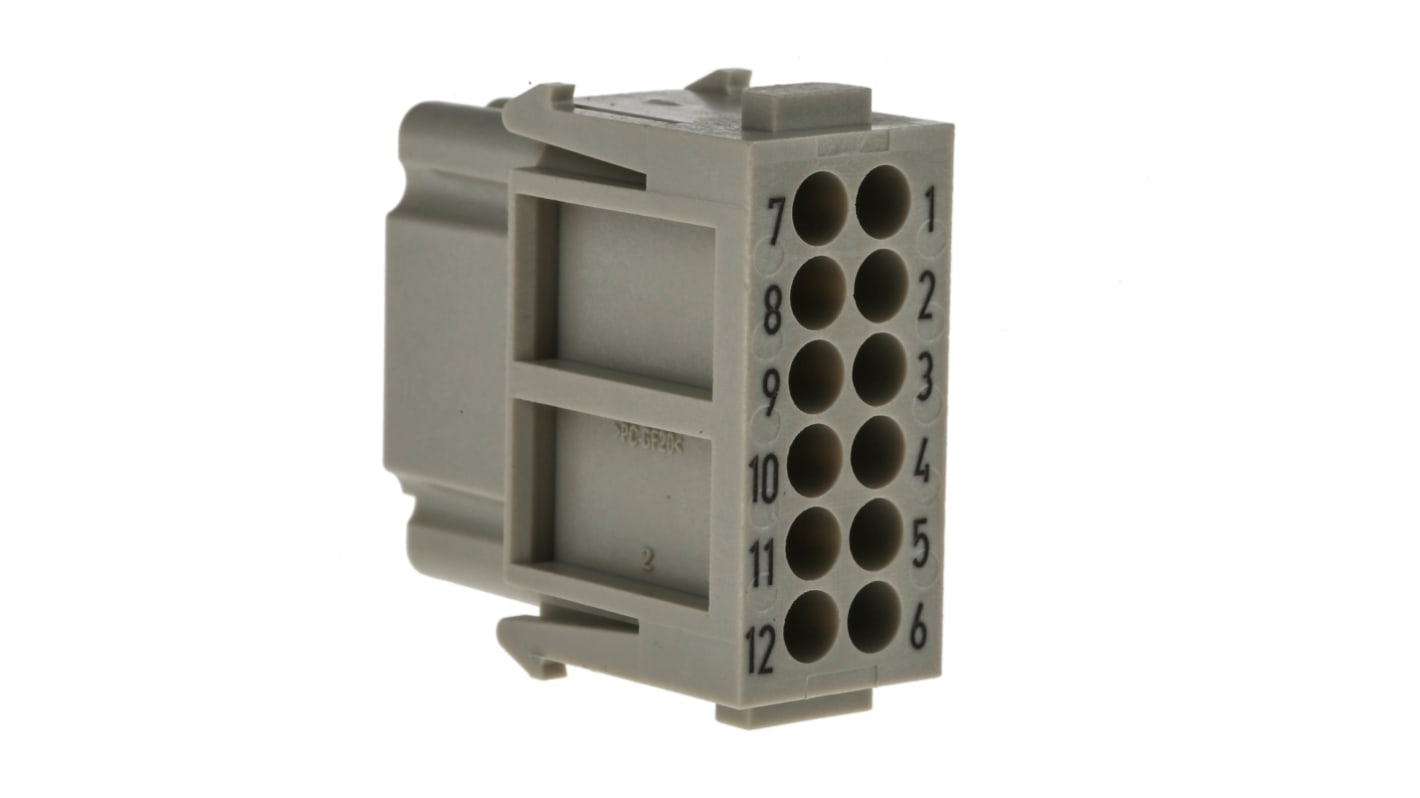

    Han-Modular Series Female Module, 12 Way, 2 Row, Rated At 10A, 250 V, Han DD

    RS Stock No.:
    221-1836
    Mfr. Part No.:
    09140123101
    Manufacturer:
    HARTING
    HARTING

    This image is representative of the product range

    View this category
    111 In SG stock for delivery within 1 working day(s) when ordered before 3.30 pm.
    272 In Global stock for delivery within 4 working day(s)
    Add to Basket
    units

    Added

    Price Each

    Was SGD10.67

    You pay

    SGD7.90

    (exc. GST)

    SGD8.45

    (inc. GST)

    unitsPer unit
    1 +SGD7.90
    RS Stock No.:
    221-1836
    Mfr. Part No.:
    09140123101
    Manufacturer:
    HARTING
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Han DD® Module


    Features:


    12 crimp contacts
    Modules are polarised
    Use crimp tool stock no. 114-7706 with locator stock no. 114-7920
    Extraction tool is stock no. 114-7728
    Mating cycles ≥ 500

    Range includes:
    110-9167 - Han DD Quad module male
    110-9168 - Han DD Quad module female
    114-7986 - Crimp Contact 1.5mm (Silver Plate)
    156-7267 - Crimp Contact 1.0mm (Silver Plate)
    156-7273 - Crimp Contact 1.0mm (Silver Plate)
    173-7351 - Han(R) DD male contact module
    173-7352 - Han(R) DD female contact module
    221-1836 - Han(R) DD female contact module
    221-1820 - Han(R) DD male contact module
    842-7630 - Han DD female contact for use with PCP adapter
    842-7633 - Han DD Series Male Contact for use with PC adapter

    Warning

    These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.


    Harting Han® Modular


    The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.

    Specifications

    AttributeValue
    Accessory TypeModule
    GenderFemale
    Current Rating10A
    Voltage Rating250 V
    Number of Contacts12
    RangeHan DD
    SeriesHan-Modular
    Number of Rows2
    CAD Drawing3D CAD Model
