Mecmesin DGD-9 Force Gauge, Range: DGD, Resolution: 0.5 to 25 gf

View all Force Gauges
Bulk discount available

Subtotal (1 unit)*

SGD515.07

(exc. GST)

SGD561.43

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4SGD515.07
5 +SGD502.18

*price indicative

RS Stock No.:
432-227
Mfr. Part No.:
DGD-9
Manufacturer:
Mecmesin
Find similar products by selecting one or more attributes.
Select all

Brand

Mecmesin

Product Type

Force Gauge

Accuracy

±2 %

Resolution

0.5 to 25 gf

Units Measured

g

Weight

173g

Standards/Approvals

ISO

Width

56 mm

Length

25mm

Height

134mm

Series

DGD

RoHS Status: Exempt

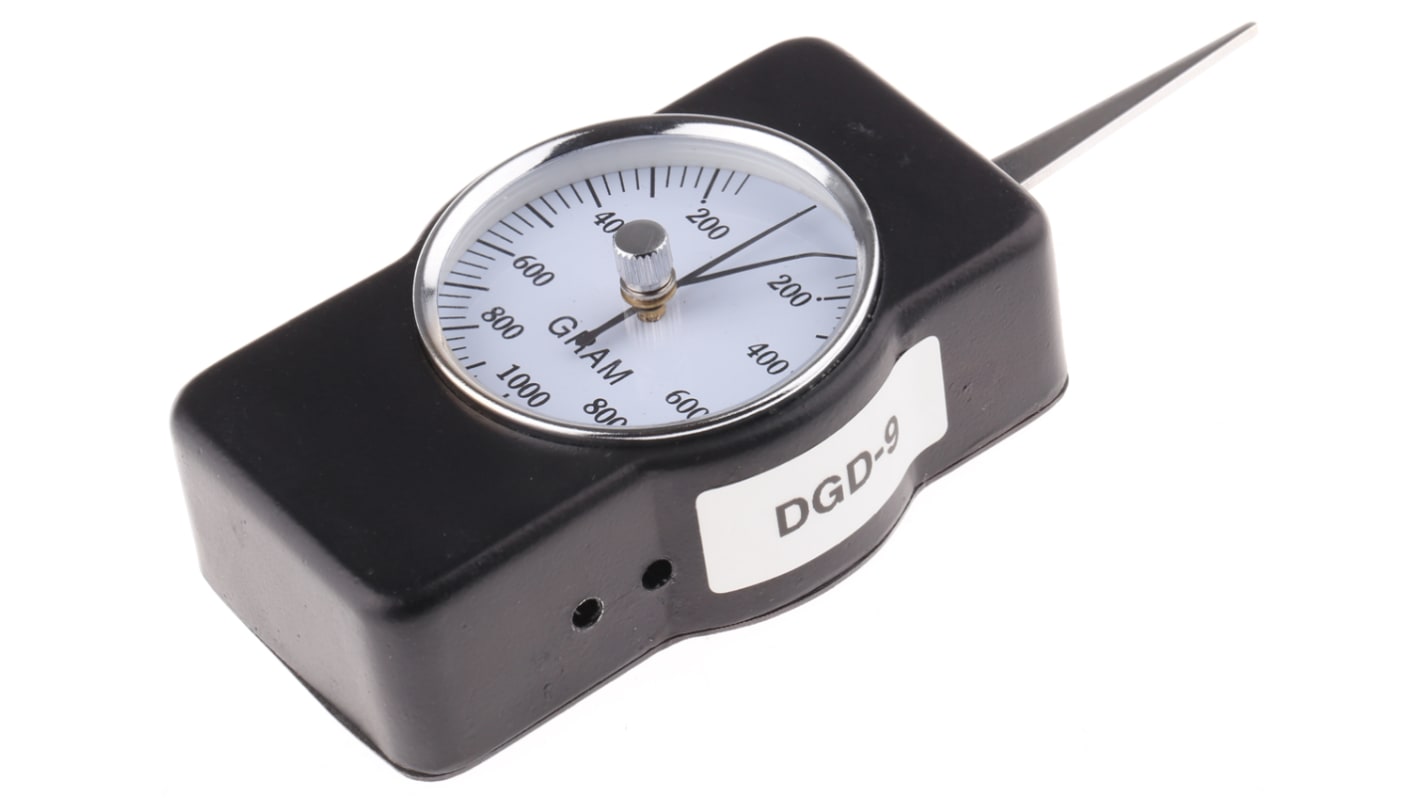

Gram Force Dial Gauge


These analogue tension/force gram gauges are for precision setting of relay contact pressures, measuring starting torques of miniature motors and clock movements, quality control of microcircuit wire bond strengths etc.Centre reading dial permits measurements to be made in a clockwise or anti-clockwise direction and incorporates a secondary pointer which acts as a maximum indicator. Accuracies of ±2% of f.s.d. can be achieved provided the feeler arm is always at right angles to the direction of the force and the feeler tip only is in contact.

The beryllium-copper mechanism is housed in a diecast aluminium frame.

Conversion of gram-force to Newton has been done, using 1 gf = 0.00980665 N.

1 N = 101.9716212978 gf
