RS PRO Horizontal Stainless Steel Float Switch, Float, 300mm Cable, Direct Load, 300V ac Max, 300V dc Max
- RS Stock No.:
- 235-6204
- Manufacturer:
- RS PRO
3 In SG stock for delivery within 1 working day(s) when ordered before 3.30 pm.
189 In Global stock for delivery within 4 working day(s)
Added
Price Each
SGD168.41
(exc. GST)
SGD183.57
(inc. GST)
Units | Per unit |
1 - 5 | SGD168.41 |
6 + | SGD164.20 |
- RS Stock No.:
- 235-6204
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details

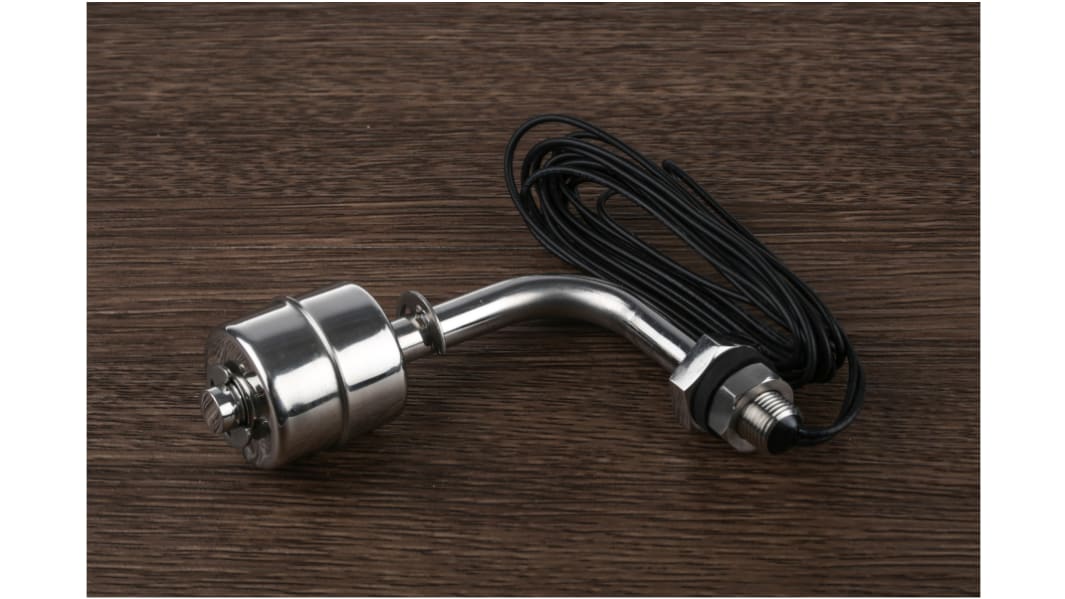

RS PRO Horizontal Float Switch, Stainless Steel, Direct Load, Float, 300 mm, 300 V
This RS PRO float switch detects the rise or fall of liquid in tanks or other containers. It will trigger a pump, alarm or some other peripheral device when it reaches a certain level.
The switch mounts horizontally and the unit's right-angled stem makes it suitable for shallower environments. This also means you can mount it at the top or bottom of your tank. With a direct-load, single-pole, single-throw (SPST) output, there's one input and output terminal – useful for simple on-off switches. It features a robust 300 mm cross-linked polyurethane (XLPE) cable and has an internal wire size of 22 AWG.
A durable silicone washer prevents the float from leaking and it has a corrosion-resistant stainless steel body. The device will operate safely from -10°C to +120°C. It can work with AC and DC voltage up to 300 V, current up to 500 mA and pressure of 10 bar Kg/cm².
The switch mounts horizontally and the unit's right-angled stem makes it suitable for shallower environments. This also means you can mount it at the top or bottom of your tank. With a direct-load, single-pole, single-throw (SPST) output, there's one input and output terminal – useful for simple on-off switches. It features a robust 300 mm cross-linked polyurethane (XLPE) cable and has an internal wire size of 22 AWG.
A durable silicone washer prevents the float from leaking and it has a corrosion-resistant stainless steel body. The device will operate safely from -10°C to +120°C. It can work with AC and DC voltage up to 300 V, current up to 500 mA and pressure of 10 bar Kg/cm².
Features and Benefits
• Horizontal, internal tank mount (top/bottom)
• XLPE cable of 300 mm for durability and heat resistance
• Internal wire size of 22 AWG
• Contact resistance of 200 mΩ
• Minimum operating temperature of -10°C
• Maximum operating temperature of +120°C
• Voltage rating of 300 V
• Maximum current of 500 mA
• Maximum pressure of 10 bar Kg/cm²
• Direct load switch
• Stainless steel body
• Cable length of 300 mm
• Warning: don't submerge cable entry point. Fit the switch through the wall of the tank with the cable outside
• XLPE cable of 300 mm for durability and heat resistance
• Internal wire size of 22 AWG
• Contact resistance of 200 mΩ
• Minimum operating temperature of -10°C
• Maximum operating temperature of +120°C
• Voltage rating of 300 V
• Maximum current of 500 mA
• Maximum pressure of 10 bar Kg/cm²
• Direct load switch
• Stainless steel body
• Cable length of 300 mm
• Warning: don't submerge cable entry point. Fit the switch through the wall of the tank with the cable outside
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Horizontal |
Switch Output | Direct Load |
Body Material | Stainless Steel |
Cable Length | 300mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +120°C |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 300V |
Maximum Current | 500 mA |
Maximum Pressure | 10bar |
