AFBR-26x4Z/25x9Z Series Fibre Optic Receivers

The AFBR-26x4Z/25x9Z Series, from Avago Technologies, consists of fibre optic receivers for 1mm POF (polymer optical fibre). These fibre optic receivers are compatible with the TTL logic families. The AFBR-26x4Z/25x9Z 4-pin devices consist of a digitalising IC containing an integrated photodiode to produce a logic compatible output level. Packaged in Versatile Link housing, these components can be interlocked, minimising the space required. Suitable applications include industrial control and factory automation, high voltage isolation and elimination of ground loops.

Data transmission at signal rates from DC up to 50MBd
Integrated PIN diode and digitalizing IC with TTL output logic
Up to 50 meters distance with 1 mm plastic optical fibre (POF)
Operating temperature: -40 to 85° C

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Fibre Optics, Avago Technologies

Units	Per unit
10 - 49	SGD29.32
50 - 99	SGD28.71
100 - 249	SGD28.12
250 +	SGD27.54

Select all	Attribute	Value
	Brand	Broadcom
	Maximum Data Rate	50MBd
	Wavelength of Peak Sensitivity	685nm
	Typical Rise Time	5ns
	Typical Fall Time	5ns
	Number of Pins	4
	Mounting Type	Through Hole
	Dimensions	18.8 x 12.19 x 7.62mm
	Height	7.62mm
	Length	18.8mm
	Width	12.19mm
	Series	Versatile Link

	Select all
	Brand Broadcom
	Maximum Data Rate 50MBd
	Wavelength of Peak Sensitivity 685nm
	Typical Rise Time 5ns
	Typical Fall Time 5ns
	Number of Pins 4
	Mounting Type Through Hole
	Dimensions 18.8 x 12.19 x 7.62mm
	Height 7.62mm
	Length 18.8mm
	Width 12.19mm
	Series Versatile Link

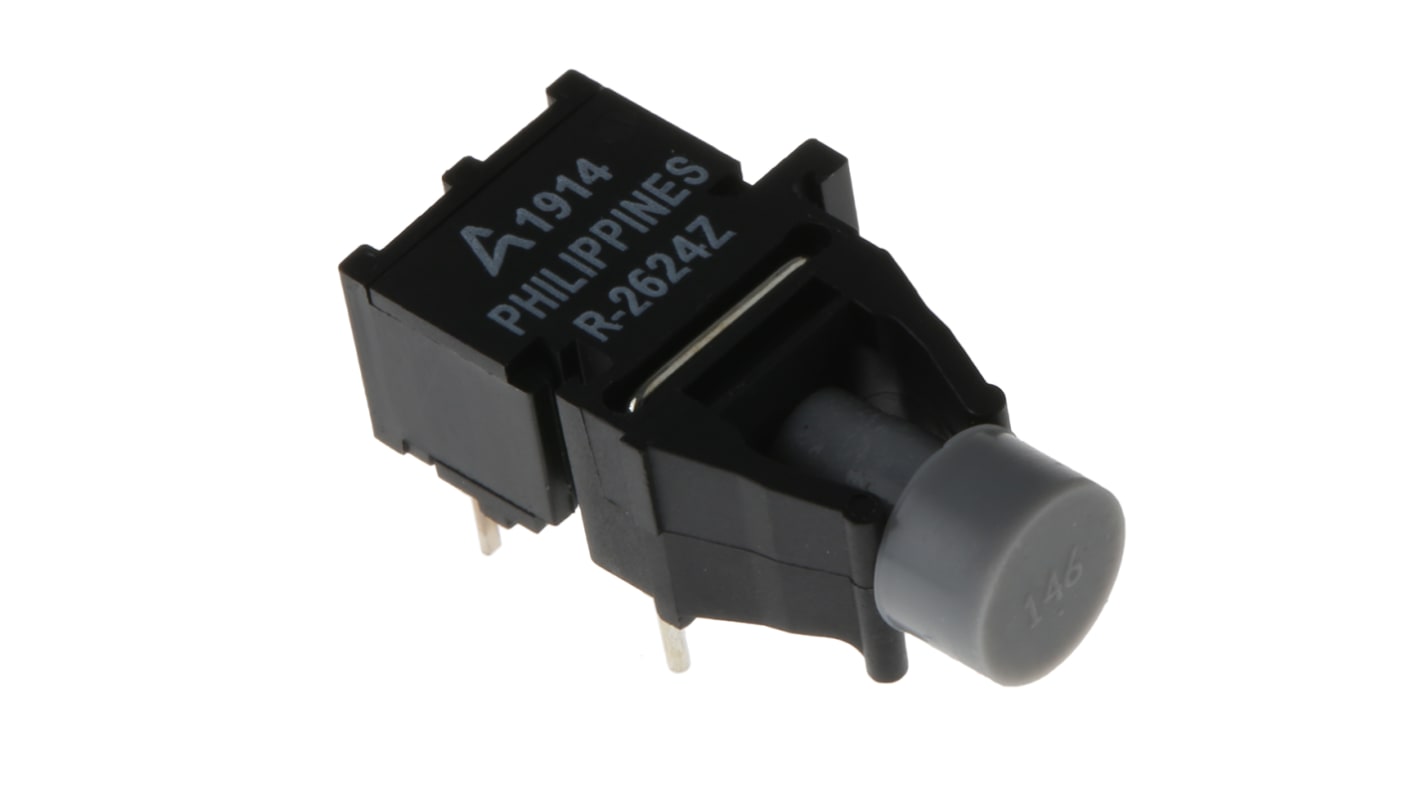

Broadcom AFBR-2624Z 50MBd 685nm Fibre Optic Receiver

FREE delivery for orders over SGD150.00 (ex GST)

AFBR-26x4Z/25x9Z Series Fibre Optic Receivers

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
