Phoenix Contact RIF-1-RPT-LDP-24DC/1IC Series Interface Relay, DIN Rail, 24 V dc Coil, SPST, 18 mA

View this category

Subtotal (1 unit)*

SGD21.07

(exc. GST)

SGD22.97

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +SGD21.07

*price indicative

RS Stock No.:
171-7039
Mfr. Part No.:
2909884
Manufacturer:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Coil Voltage

24 V dc

Product Type

Interface Relay

Contact Configuration

SPST

Mount Type

DIN Rail

Series

RIF-1-RPT-LDP-24DC/1IC

Terminal Type

Screw

Switching Current

100 mA

Switching DC Voltage

250 V dc

Coil Current

18 mA

Minimum Operating Temperature

-40°C

Switching AC Voltage

250 V ac

Maximum Operating Temperature

70°C

Contact Material

Silver Alloy

Standards/Approvals

IEC 60947-5-1

Length

16mm

Width

75 mm

Height

93mm

COO (Country of Origin):
CN

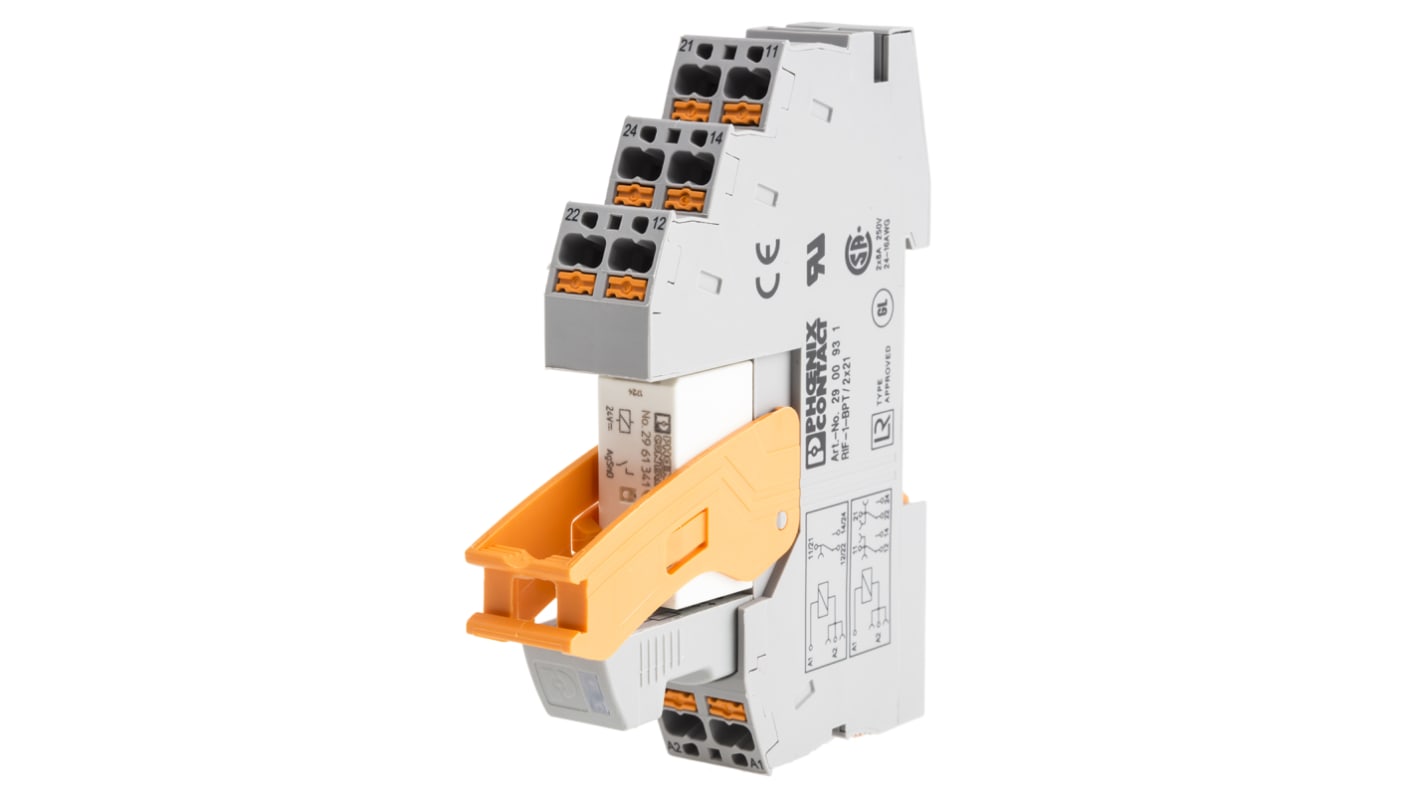

Phoenix Contact Interface Relay Module, Screw Terminal, SPDT - RIF-1-RPT-LDP-24DC/1IC - 2909884


Safely couple signals between a PLC (programmable logic controller) and peripherals with this relay from Phoenix Contact. The unit is supplied ready for DIN mounting and includes a base, plug-in interference suppression module and retaining bracket for simple setup.

The relay module accepts both solid and flexible conductors over a wide cross-section range. Its cabling system makes it easy to configure and wire, so connection to your control system can be done quickly. Thanks to reverse polarity protection, it won't be damaged if its outlet is wired incorrectly.

This component has a narrow profile to allow for maximum packing capacity on a circuit board. It's conveniently sealed, which makes it washable. This means you can remove welding flux residue without worrying about solvents affecting the relay's function.

Features and Benefits


• Coil voltage of 24 V AC/DC

• Switching current of 100 mA

• Switching voltage of 250 V AC/DC

• SNPO (single pole, normally open) contact configuration

• Silver alloy contact material

• Life of 30,000,000 cycles

• 1 pole

• Screw terminal type

• IP20 (ingress protection) rating for protection against solid objects up to 12 mm

• Dimensions of 16 (length) x 93 (height) x 75 mm (depth)

• Operating temperature range of -40°C to +70°C
