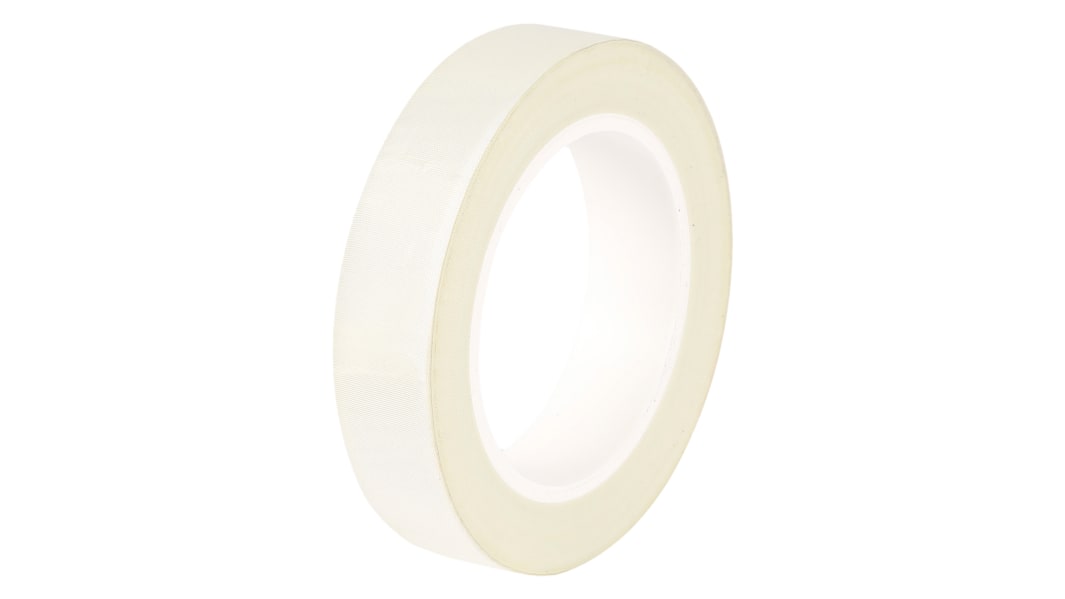

Advance Tapes AT4001 White Glass Cloth Electrical Tape, 19mm x 55m
- RS Stock No.:
- 408-9394
- Manufacturer:
- Advance Tapes
Temporarily out of stock - back order for despatch 19/06/2024, delivery within 4 working days from despatch date
Added
Price 1 Reel of 55 Metre(s)
SGD47.17
(exc. GST)
SGD51.42
(inc. GST)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | SGD47.17 | SGD0.858 |
| 5 - 9 | SGD46.00 | SGD0.836 |
| 10 + | SGD44.86 | SGD0.816 |
| *price indicative | ||
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 408-9394
- Manufacturer:
- Advance Tapes
Technical data sheets
Legislation and Compliance
Product Details
Advance Tapes Glass Cloth Tape
The Advance Tapes AT4001 class B white single-sided woven glass cloth tape with a rubber thermosetting adhesive. This is 0.18mm thick, 19mm wide and 55m long. It is used in electrical insulation of coils, insulation of square conductors in traction motors and generators as well as tensional strapping of coils and armature windings.
Features and Benefits
Very high-temperature resistance
High mechanical strength
Breaking load is 280N/cm
Adhesion to steel is 4N/cm
Breakdown Voltage 2.5kV
Elongation is 5%
Service temperature is from 0°C to +130°C
High mechanical strength
Breaking load is 280N/cm
Adhesion to steel is 4N/cm
Breakdown Voltage 2.5kV
Elongation is 5%
Service temperature is from 0°C to +130°C
Applications
For electrical installation and repair work
Soldered joints and seams
Insulation of soldered joints, terminals, cable socket and conduction rails
Soldered joints and seams
Insulation of soldered joints, terminals, cable socket and conduction rails
Certifications
UL approved
BS EN 60454-3-8 type 2
ISO 9001
BS EN 60454-3-8 type 2
ISO 9001
Specifications
Attribute | Value |
|---|---|
| Colour | White |
| Width | 19mm |
| Length | 55m |
| Backing Material | Glass Cloth |
| Thickness | 0.18mm |
| Maximum Operating Temperature | +130°C |
| Trade Name | AT4001 |
