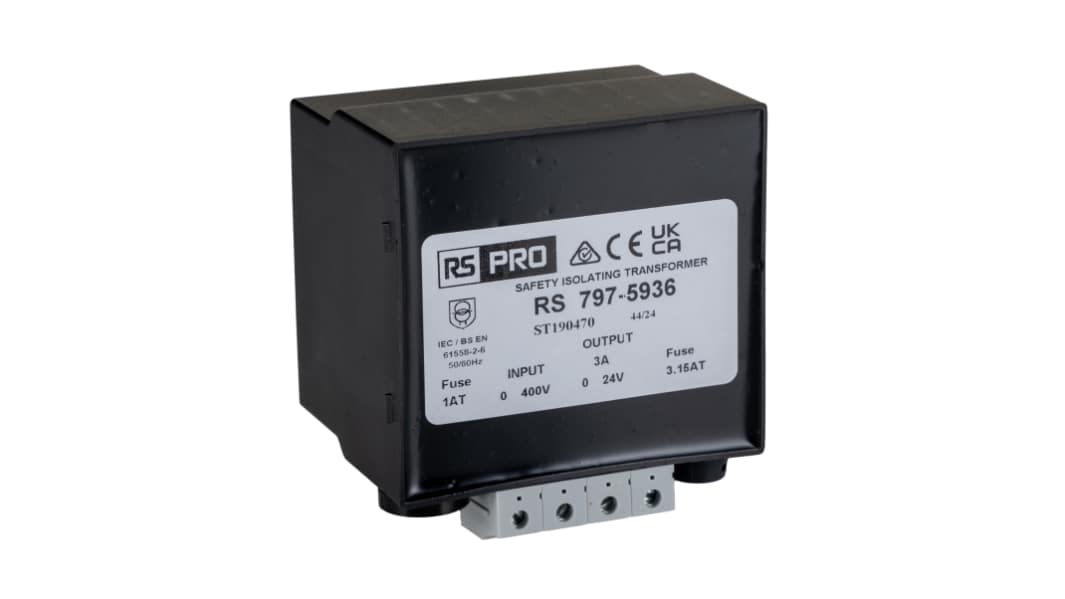

Name: RS PRO 72VA DIN Rail Transformer, 400V ac Primary, 24V ac Secondary
Brand: RS PRO
SKU: 797-5936
Price: 198.15 SGD
Availability: InStock

Moulded single phase DIN rail isolation transformer

Brought to you under the trusted RS PRO brand, these single-phase isolation transformers are designed for DIN Rail mounting. Fully encapsulated in a molded resin case, these high-quality safety and isolation transformers are ideal for general applications. Their robust construction ensures reliable performance and enhanced safety, making them a dependable choice for various industrial and commercial settings.

:

Features and Benefits:

• Single phase moulded with screw terminals
• Mounts on 35 mm DIN rail (TS35)
• Fused input and output
• Encapsulated in resin
• Temperature class: max. ta = 40°C / insulation class B (130°)
• Nominal 72VA - short term 100V

Standards

EN61558-2-4, EN61558-2-6

Units	Per unit
1 - 24	SGD181.79
25 - 49	SGD175.72
50 +	SGD164.00

Select all	Attribute	Value
	Brand	RS PRO
	Primary Voltage Rating	400V ac
	Secondary Voltage Rating	24V ac
	Power Rating	72VA
	Mounting Type	DIN Rail
	Number of Outputs	1
	Length	89.5mm
	Width	82.5mm
	Depth	82mm
	Dimensions	89.5 x 82.5 x 82mm
	Minimum Operating Frequency	50Hz
	Maximum Operating Frequency	60Hz
	Maximum Temperature	+40°C
	Weight	1.3kg

	Select all
	Brand RS PRO
	Primary Voltage Rating 400V ac
	Secondary Voltage Rating 24V ac
	Power Rating 72VA
	Mounting Type DIN Rail
	Number of Outputs 1
	Length 89.5mm
	Width 82.5mm
	Depth 82mm
	Dimensions 89.5 x 82.5 x 82mm
	Minimum Operating Frequency 50Hz
	Maximum Operating Frequency 60Hz
	Maximum Temperature +40°C
	Weight 1.3kg
