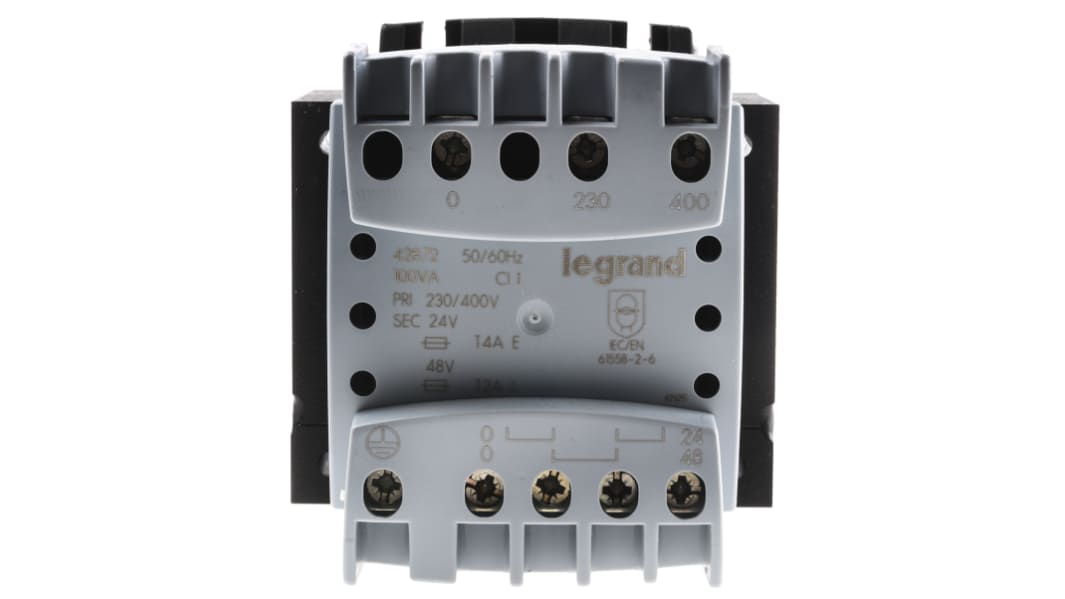

Legrand 100VA DIN Rail Transformer, 230 → 400V Primary, 24 → 48V Secondary

RS Stock No.:: 383-314
Mfr. Part No.:: 0 428 72
Manufacturer:: Legrand

Legrand 100VA DIN Rail Transformer, 230 → 400V Primary, 24 → 48V Secondary

42 In stock for delivery within 4 working days

Price Each

SGD115.93

(exc. GST)

SGD126.36

(inc. GST)

Units	Per unit
1 - 24	SGD115.93
25 - 49	SGD112.06
50 +	SGD104.58

RS Stock No.:: 383-314
Mfr. Part No.:: 0 428 72
Manufacturer:: Legrand

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Control Panel Primary 230/400Vac (40 to 220VA)

Compact, open type control panel transformer
Fully shrouded screw terminals with permanent marking
Detailed product specification permanently marked on front of unit
VA ratings compatible with available protection devices
Dual standard primary winding 230 / 400Vac

Note

Mounting clips are not supplied with these products. Transformers up to 160 VA can be clipped to DIN rail using accessory 0044 16, RS stock number 423-2201 or 620-3592 for higher values or directly fixed using screws through the easily accessible fixing points.

Standards

IEC/EN 61 558

Approvals

8888

Standards

IEC/EN 61558-2-4

Laminated

Specifications

Attribute	Value
Primary Voltage Rating	230 → 400V
Secondary Voltage Rating	24 → 48V
Power Rating	100VA
Mounting Type	Panel
Number of Outputs	2
Length	104mm
Width	84mm
Depth	86mm
Dimensions	98 x 84 x 86mm
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Maximum Temperature	+35°C
Weight	1.6kg
