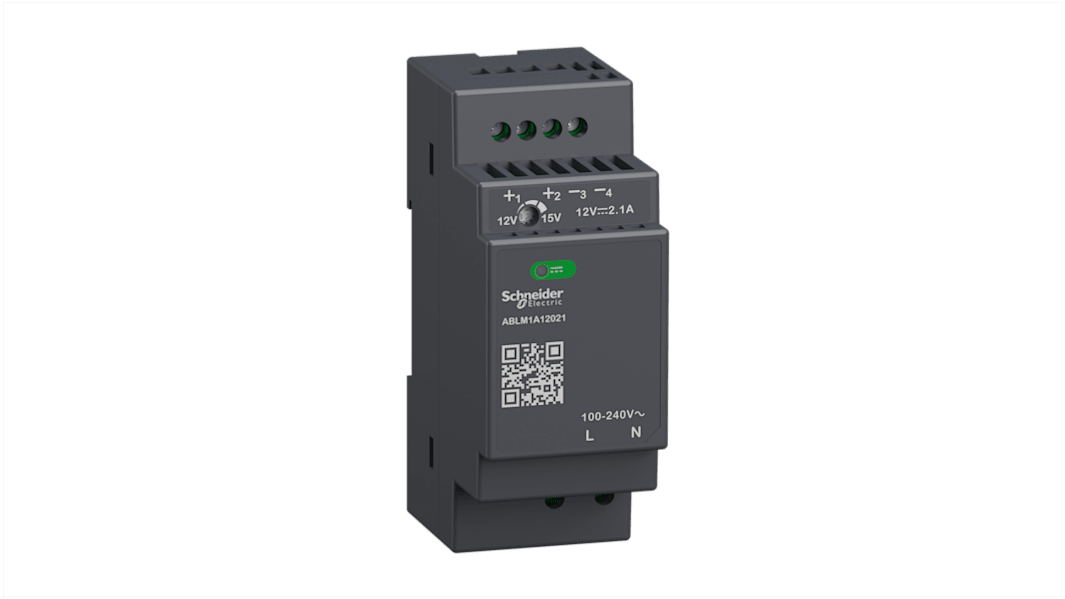

Schneider Electric Modicon ABL Regulated Switch Mode DIN Rail Power Supply 240V ac AC Input 12V dc, 2.1 A Output DC 25 W

RS Stock No.:: 210-8379
Distrelec Article No.:: 303-11-688
Mfr. Part No.:: ABLM1A12021
Manufacturer:: Schneider Electric

Schneider Electric Modicon ABL Regulated Switch Mode DIN Rail Power Supply 240V ac AC Input 12V dc, 2.1 A Output DC 25 W

Subtotal (1 unit)*

SGD186.39

(exc. GST)

SGD203.17

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

4 unit(s) ready to ship from another location
Plus 3 unit(s) shipping from 12 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD186.39

*price indicative

RS Stock No.:: 210-8379
Distrelec Article No.:: 303-11-688
Mfr. Part No.:: ABLM1A12021
Manufacturer:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	DIN Rail Power Supply
	Series	Modicon ABL
	Maximum Output Voltage	12V dc
	Sub Type	Regulated Switch Mode
	Electrical Phase	1
	Number of Outputs	1
	Input Voltage Type	AC
	Power	25W
	Output Current	2.1A
	IP Rating	IP20
	Minimum Operating Temperature	-25°C
	Output Voltage Type	DC
	Remote signal DC-OK	No
	Maximum Operating Temperature	70°C
	Depth	55.6mm
	Height	91mm
	Hazardous Area Certification	No
	Width	36mm
	Standards/Approvals	UL 62368-1, UL 61010-2-201, UL 61010-1, EN/IEC 61204-3, EN/IEC 61010-1, EN 62368-1, EN 61010-2-201, EN 61000-6-4, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1, EN 61000-3-3, EN 61000-3-2, CSA C22.2 No 62368-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1
	Maximum Input Voltage	240V ac
	Minimum Input Voltage	100V ac
	Efficiency	85%

	Select all
	Brand Schneider Electric
	Product Type DIN Rail Power Supply
	Series Modicon ABL
	Maximum Output Voltage 12V dc
	Sub Type Regulated Switch Mode
	Electrical Phase 1
	Number of Outputs 1
	Input Voltage Type AC
	Power 25W
	Output Current 2.1A
	IP Rating IP20
	Minimum Operating Temperature -25°C
	Output Voltage Type DC
	Remote signal DC-OK No
	Maximum Operating Temperature 70°C
	Depth 55.6mm
	Height 91mm
	Hazardous Area Certification No
	Width 36mm
	Standards/Approvals UL 62368-1, UL 61010-2-201, UL 61010-1, EN/IEC 61204-3, EN/IEC 61010-1, EN 62368-1, EN 61010-2-201, EN 61000-6-4, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1, EN 61000-3-3, EN 61000-3-2, CSA C22.2 No 62368-1, CSA C22.2 No 61010-2-201, CSA C22.2 No 61010-1
	Maximum Input Voltage 240V ac
	Minimum Input Voltage 100V ac
	Efficiency 85%

Schneider Electric ABLM1A12021

This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 2,1A at 12V DC and a rated power output of 25W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 30mm, its height is 75mm, its depth is 92,8mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Features & Benefits

• Compatible with TT, TN and IT earthing systems for safety in all kinds of industrial networks

• 85% efficiency rating means it wastes little heat and doesn't need a heatsink to stay cool

• Suits wire sizes in range of 0.5 to 1.5mm² (20 to 16AWG) for broad compatibility

Applications

• Mining and minerals processing

• Oil and gas industries

• Material handling

How do I mount this unit?

Thanks to its handy snap-on mechanism, you can mount the PSU to a 35mm DIN rail quickly and easily with no need for tools.
