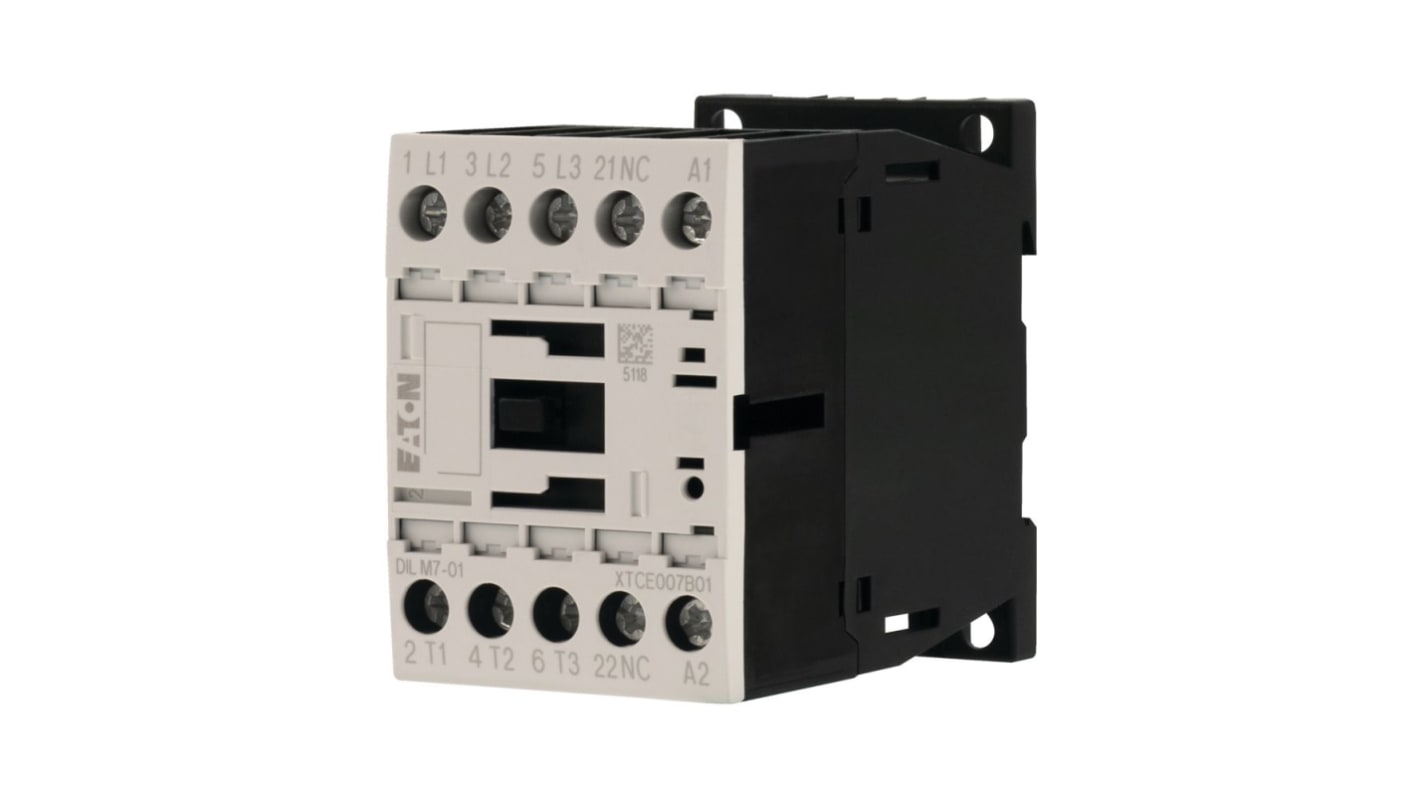

Eaton DILM Contactor, 110V ac Coil, 3-Pole, 7 A, 3 kW 110V ac, 1 NC, 400V ac

RS Stock No.:: 743-4879
Mfr. Part No.:: 276582 DILM7-01(110V50HZ,120V60HZ)
Manufacturer:: Eaton

Eaton DILM Contactor, 110V ac Coil, 3-Pole, 7 A, 3 kW 110V ac, 1 NC, 400V ac

Subtotal (1 unit)*

SGD78.06

(exc. GST)

SGD85.09

(inc. GST)

FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28

In Stock

2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	SGD78.06

*price indicative

RS Stock No.:: 743-4879
Mfr. Part No.:: 276582 DILM7-01(110V50HZ,120V60HZ)
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	110V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	7A
	Series	DILM
	Power Rating	3kW
	Mount Type	DIN Rail
	Function	Motor Control, Resistive Load
	Normal State Configuration	1 NC
	Auxiliary Contact Configuration	1 NC
	Number of Auxiliary Contacts	1
	Terminal Type	Screw Clamp
	Control Circuit Voltage Uc	110V ac
	Operational Current Ie	22A
	Minimum Operating Temperature	-25°C
	Contactor Application	Motor Control
	Maximum Operating Temperature	60°C
	Depth	75mm
	Width	45mm
	Standards/Approvals	EN 60947
	Length	75mm
	Pole and Throw Configuration	3P

	Select all
	Brand Eaton
	Coil Voltage 110V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 7A
	Series DILM
	Power Rating 3kW
	Mount Type DIN Rail
	Function Motor Control, Resistive Load
	Normal State Configuration 1 NC
	Auxiliary Contact Configuration 1 NC
	Number of Auxiliary Contacts 1
	Terminal Type Screw Clamp
	Control Circuit Voltage Uc 110V ac
	Operational Current Ie 22A
	Minimum Operating Temperature -25°C
	Contactor Application Motor Control
	Maximum Operating Temperature 60°C
	Depth 75mm
	Width 45mm
	Standards/Approvals EN 60947
	Length 75mm
	Pole and Throw Configuration 3P

Eaton DILM Series Contactor, 110V AC Coil Voltage, 3NO Normal State Configuration - 276582 DILM7-01(110V50HZ,120V60HZ)

This contactor is an important element in the management of electrical motors, designed to operate effectively at 110V AC. It plays a crucial role in various automation applications by controlling and powering motors within electrical systems. Its durable design and strong performance enhance the reliability of motor control operations.

Features & Benefits

• 3 pole configuration for efficient multi-phase control

• Rated for 7A contact current handling

• Operates at a contact voltage of 400V AC

• Screw terminal connections for easy installation and maintenance

• Compact design allows for versatile mounting options

Applications

• Controls motors in production lines

• Utilised in compressor and pump systems

• Effective for elevators and lifts

• Suitable for fans and conveyor belt mechanisms

• Applicable in food processing machinery automation

How does the contactor ensure safe motor operation?

It has a contact voltage rating of 400V AC, facilitating safe motor control.

Can this contactor be used in high-temperature conditions?

Yes, it can function in environments with temperatures reaching up to +60°C.

What is the maximum current rating it can handle?

It is rated to manage a maximum contact current of 7A.

Is this device suitable for variable frequency drives?

Yes, it can be integrated into systems employing variable frequency drives for improved motor control.

Note

Eaton formerly known as Moeller
