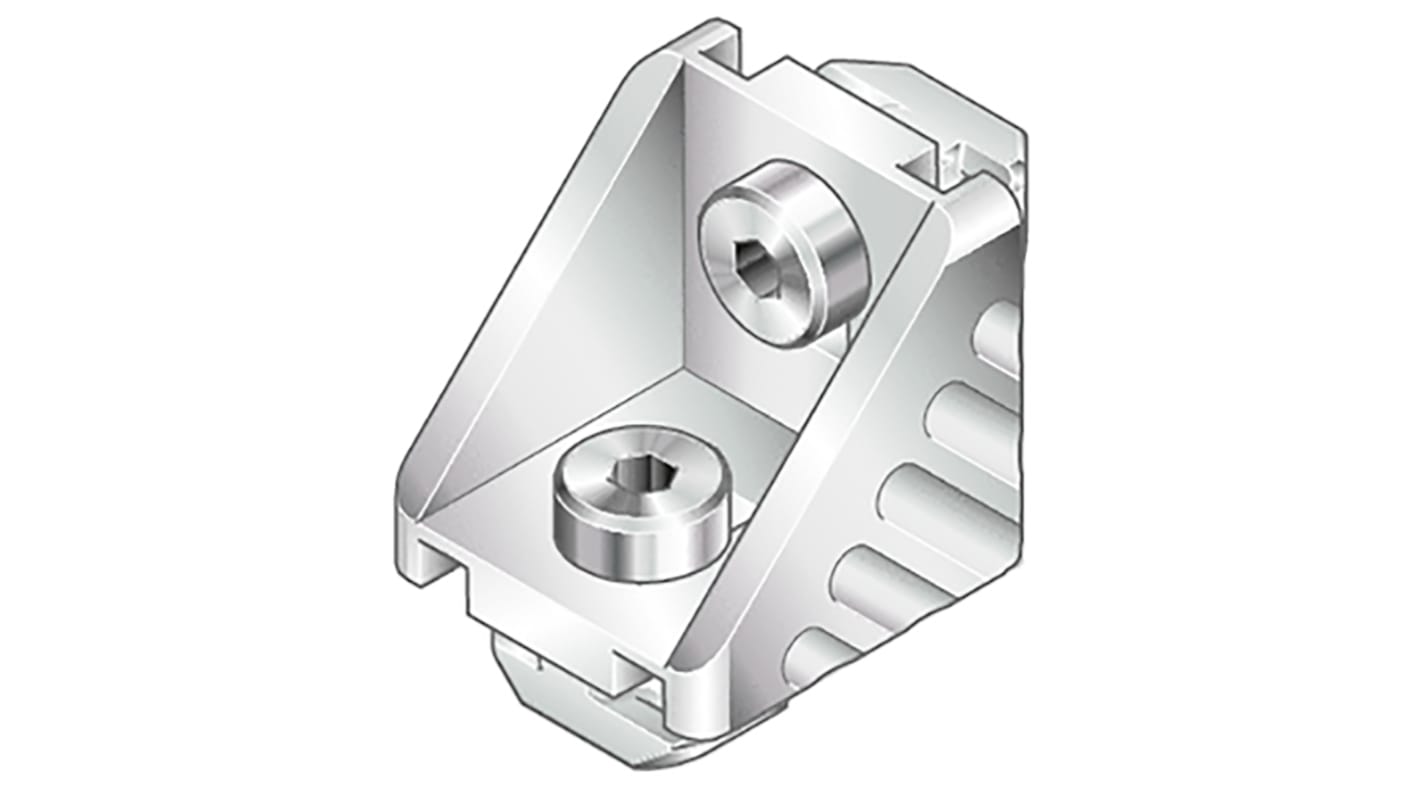

Bosch Rexroth M8 Angle Bracket Connecting Component, Strut Profile 45 mm, Groove Size 10mm

These Bosch designLINE Angle Brackets have special silver paint to give an attractive high-quality design for all MGE fixtures. They can be used to make a strong connection between 20 x 20, 30 x 30, 40 x 40, 45 x 45 or 50 x 50 profiles at an angle of 90°.

• Includes non-turning centring lugs for rapid and precise alignment

RS article MPN Size
523376 3842551596 20x20x20
523354 3842551597 20x40x40
523364 3842551598 30x30x30
523360 3842551601 30x60x60
523336 3842551602 30x60x120
523370 3842551603 40x40x40
523382 3842551604 40x80x80
523332 3842551605 40x80x160
523320 3842551606 45x45x45
523326 3842551607 45x90x90
523342 3842551608 45x90x180

When speed and stability are top priorities, turn to this Bosch Rexroth connecting component. The robust 90° angle bracket's made of hardwearing die-cast aluminium and has the strength you need for structural reinforcement, shelf support or securing builds to a wall or floor. It comes with centering lugs that help make installation quick and precise. They also prevent anything turning once in place, so you get a firm hold. As finished assemblies stand up to 6000N of shear force and torques up to 60Nm, this connector's a solid bet for temporary structures in demanding environments.

• No profile finishing needed, so connections are quick
• 10mm groove for end or side joins with 45 (W) x 45mm (H) profiles
• ESD protection minimises static discharge

• Partition walls
• Exhibition spaces
• Warehouse racking

Yes, this product comes with four M8 screws and washers, so installation is a walk in the park.
