    ITT Cannon Female Crimp Circular Connector Contact, Wire Size 26 → 24 AWG

    RS Stock No.:
    474-798
    Mfr. Part No.:
    192990-0090
    Manufacturer:
    ITT Cannon
    ITT Cannon

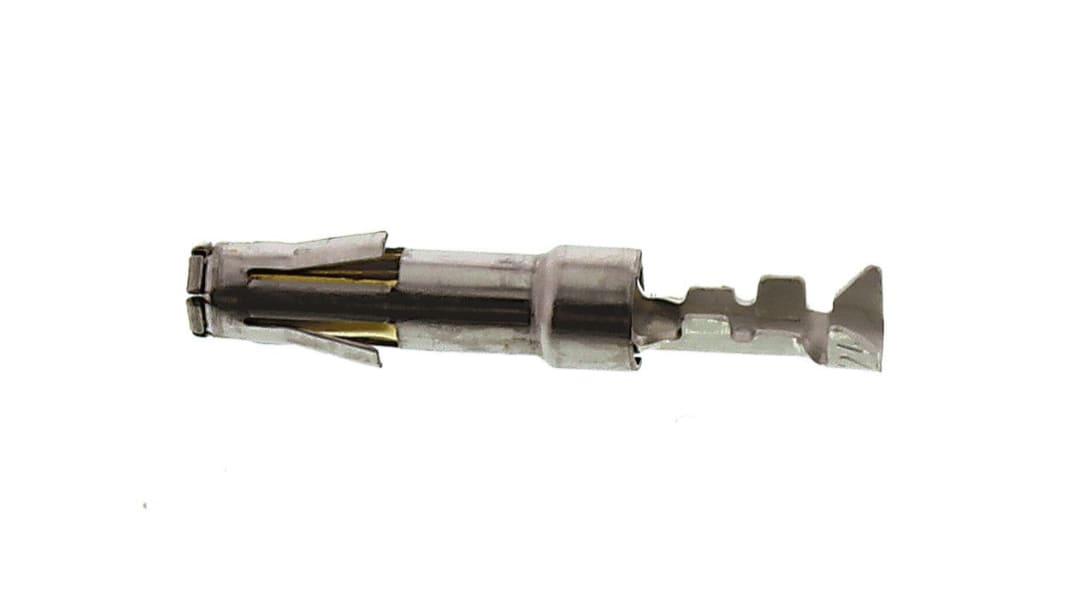

    This image is representative of the product range

    View this category
    4210 In stock for delivery within 4 working days
    Add to Basket
    units

    Added

    Price Each (In a Pack of 10)

    SGD1.415

    (exc. GST)

    SGD1.514

    (inc. GST)

    unitsPer unitPer Pack*
    10 - 190SGD1.415SGD14.15
    200 - 990SGD1.387SGD13.87
    1000 +SGD1.142SGD11.42
    *price indicative
    RS Stock No.:
    474-798
    Mfr. Part No.:
    192990-0090
    Manufacturer:
    ITT Cannon
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

    Crimp Two Piece Contacts


    Use plier or ratchet style tool to crimp contacts.

    Current rating (single contact in isolation) 13A
    Initial contact resistance 5mΩ
    Contact area selectively gold plated
    Crimp area tin plated
    Up to 200 mating cycles


    QM Range Contacts and Tooling


    The current rating quoted is for a single contact pair in isolation; when more than one pair of contacts in a connector is carrying appreciable current, the maximum permissible current per contact must be reduced to take the cumulative heating effect into account. This multi-way de-rating factor is established from similar factors established for multi-core cables.

    Specifications

    AttributeValue
    GenderFemale
    Wire Size26 → 24 AWG
    Termination MethodCrimp
    SeriesT2P
    For Use WithTrident T2P Contact System
    Current Rating13A
    Contact TypeSignal
    Length18.42mm
    Contact PlatingGold
    Contact MaterialBrass
    Maximum Contact Resistance5mΩ
    Minimum Operating Temperature-55°C
    Maximum Operating Temperature+125°C
    Mounting TypeCable Mount
