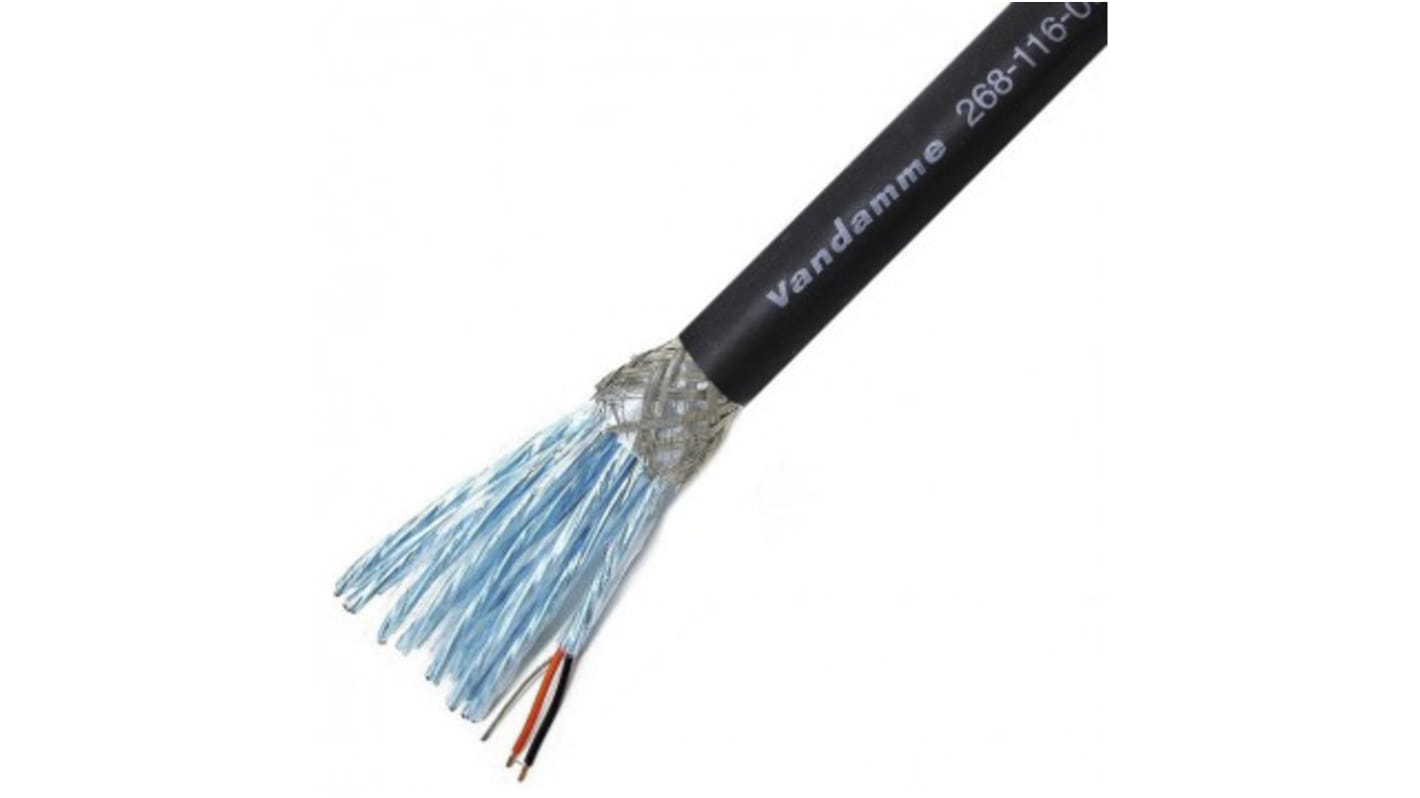

Van Damme Audio & Control Cable, 0.22 mm² CSA Screened, 14.5mm od, 10m, Black
- RS Stock No.:
- 379-3581
- Mfr. Part No.:
- 268-116-000
- Manufacturer:
- Van Damme
Subtotal (1 reel of 10 metres)**
SGD408.34
(exc. GST)
SGD445.09
(inc. GST)
Temporarily out of stock - back order for despatch 09/07/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over SGD150.00 (ex GST)
Reel(s) | Per Reel | Per Metre** |
---|---|---|
1 + | SGD408.34 | SGD40.834 |
**price indicative
- RS Stock No.:
- 379-3581
- Mfr. Part No.:
- 268-116-000
- Manufacturer:
- Van Damme
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Van Damme | |
Audio Cable Type | Audio & Control Cable | |
Cross Sectional Area | 0.22 mm² | |
Screened/Unscreened | Screened | |
Insulation Material | PP | |
Outer Diameter | 14.5mm | |
Length | 10m | |
Sheath Colour | Black | |
American Wire Gauge | 24 AWG | |
Conductor Material | Oxygen Free Copper | |
Size of Strands | 0.1 mm | |
Capacitance Core To Core | 81pF/ft | |
Capacitance Core To Screen | 160pF/ft | |
Screen Type | Aluminium/PET Foil | |
Number of Strands | 28 | |
Sheath Material | PVC | |
Core Strands | 28/0.1 mm | |
Cable Shape | Twisted Pair | |
Conductor Resistance | 90 Ω/km | |
Voltage Rating | 250 V | |
Select all | ||
---|---|---|
Brand Van Damme | ||
Audio Cable Type Audio & Control Cable | ||
Cross Sectional Area 0.22 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material PP | ||
Outer Diameter 14.5mm | ||
Length 10m | ||
Sheath Colour Black | ||
American Wire Gauge 24 AWG | ||
Conductor Material Oxygen Free Copper | ||
Size of Strands 0.1 mm | ||
Capacitance Core To Core 81pF/ft | ||
Capacitance Core To Screen 160pF/ft | ||
Screen Type Aluminium/PET Foil | ||
Number of Strands 28 | ||
Sheath Material PVC | ||
Core Strands 28/0.1 mm | ||
Cable Shape Twisted Pair | ||
Conductor Resistance 90 Ω/km | ||
Voltage Rating 250 V | ||
