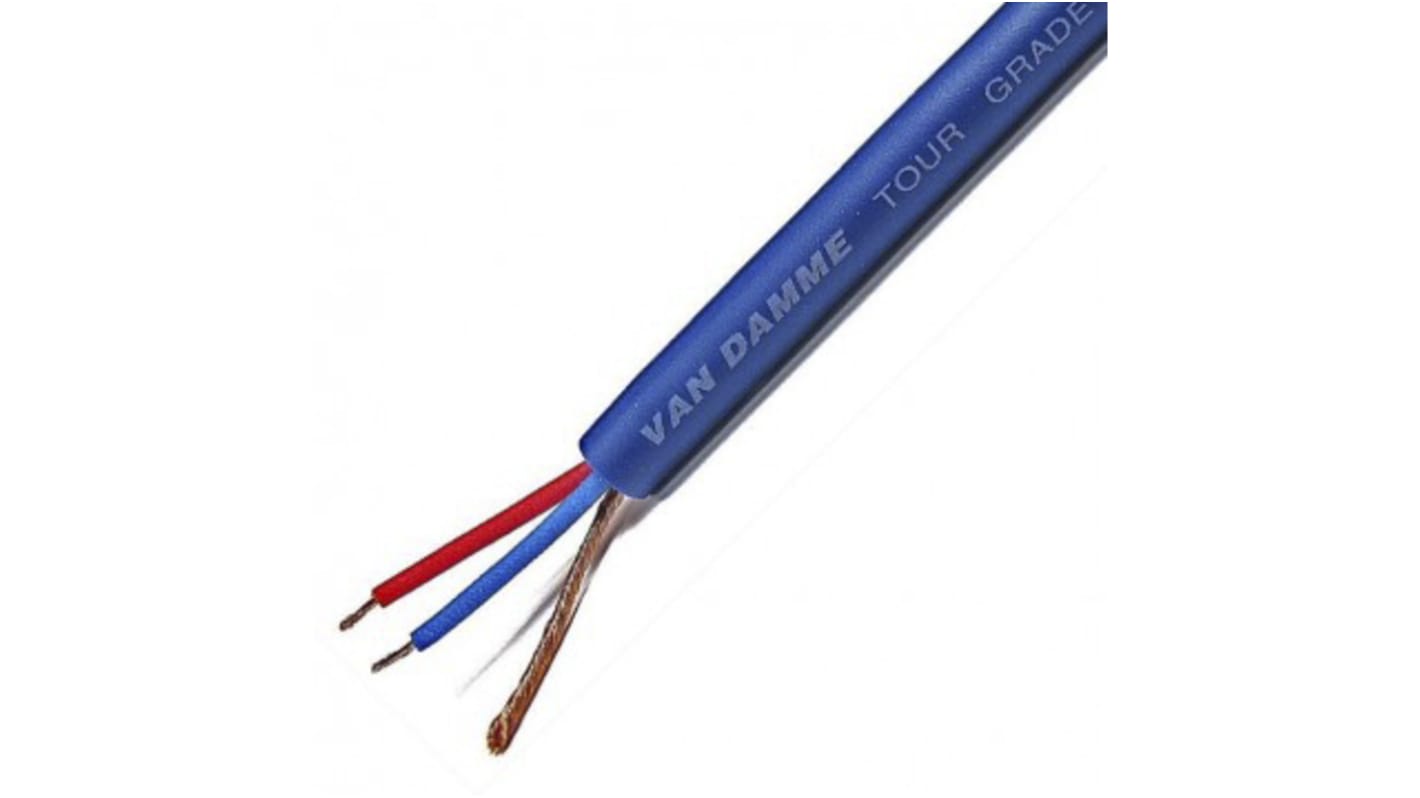

Van Damme Microphone Cable, 0.22 mm² CSA Screened, 6.35mm od, 100m, Blue
- RS Stock No.:
- 365-8719
- Mfr. Part No.:
- 268-021-060
- Manufacturer:
- Van Damme
Subtotal (1 reel of 100 metres)*
SGD346.39
(exc. GST)
SGD377.57
(inc. GST)
FREE delivery for orders over $150, or create a business account to enjoy free delivery from just $28
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | SGD346.39 | SGD3.464 |
*price indicative
- RS Stock No.:
- 365-8719
- Mfr. Part No.:
- 268-021-060
- Manufacturer:
- Van Damme
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Van Damme | |
| Audio Cable Type | Microphone Cable | |
| Cross Sectional Area | 0.22 mm² | |
| Screened/Unscreened | Screened | |
| Insulation Material | PE | |
| Outer Diameter | 6.35mm | |
| Length | 100m | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Sheath Colour | Blue | |
| American Wire Gauge | 24 AWG | |
| Screen Type | Close Lap | |
| Capacitance Core To Screen | 165pF/m | |
| Conductor Resistance | 85 Ω/km | |
| Sheath Material | PVC/Neoprene | |
| Number of Strands | 28 | |
| Capacitance Core To Core | 56pF/m | |
| Size of Strands | 0.1 mm | |
| Voltage Rating | 250 V | |
| Conductor Material | Copper | |
| Balanced | Yes | |
| Conductor Strand Type | Stranded | |
| Core Strands | 28/0.1 mm | |
| Cable Shape | Multicore | |
| Filler Material | Cotton | |
| Select all | ||
|---|---|---|
Brand Van Damme | ||
Audio Cable Type Microphone Cable | ||
Cross Sectional Area 0.22 mm² | ||
Screened/Unscreened Screened | ||
Insulation Material PE | ||
Outer Diameter 6.35mm | ||
Length 100m | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Sheath Colour Blue | ||
American Wire Gauge 24 AWG | ||
Screen Type Close Lap | ||
Capacitance Core To Screen 165pF/m | ||
Conductor Resistance 85 Ω/km | ||
Sheath Material PVC/Neoprene | ||
Number of Strands 28 | ||
Capacitance Core To Core 56pF/m | ||
Size of Strands 0.1 mm | ||
Voltage Rating 250 V | ||
Conductor Material Copper | ||
Balanced Yes | ||
Conductor Strand Type Stranded | ||
Core Strands 28/0.1 mm | ||
Cable Shape Multicore | ||
Filler Material Cotton | ||
- COO (Country of Origin):
- TW
Tour Grade Classic XKE Spiral Screen Cable
Heavy-duty multipurpose twin core standard microphone cable designed for balanced audio signals
The tightly lapped oxygen free copper screen coupled with the natural cotton filler prevents capacitance changes and eliminates internally generated noise
Highly flexible noiseless cable with excellent handling qualities
Quick and easy to terminate
80/0.10mm spiral lap screen for excellent screening properties
Matt finish anti-kink highly flexible sheath
The tightly lapped oxygen free copper screen coupled with the natural cotton filler prevents capacitance changes and eliminates internally generated noise
Highly flexible noiseless cable with excellent handling qualities
Quick and easy to terminate
80/0.10mm spiral lap screen for excellent screening properties
Matt finish anti-kink highly flexible sheath
