STMicroelectronics Audio, 24-Pin QFN TS472IQT
- RS Stock No.:
- 189-2079
- Mfr. Part No.:
- TS472IQT
- Manufacturer:
- STMicroelectronics

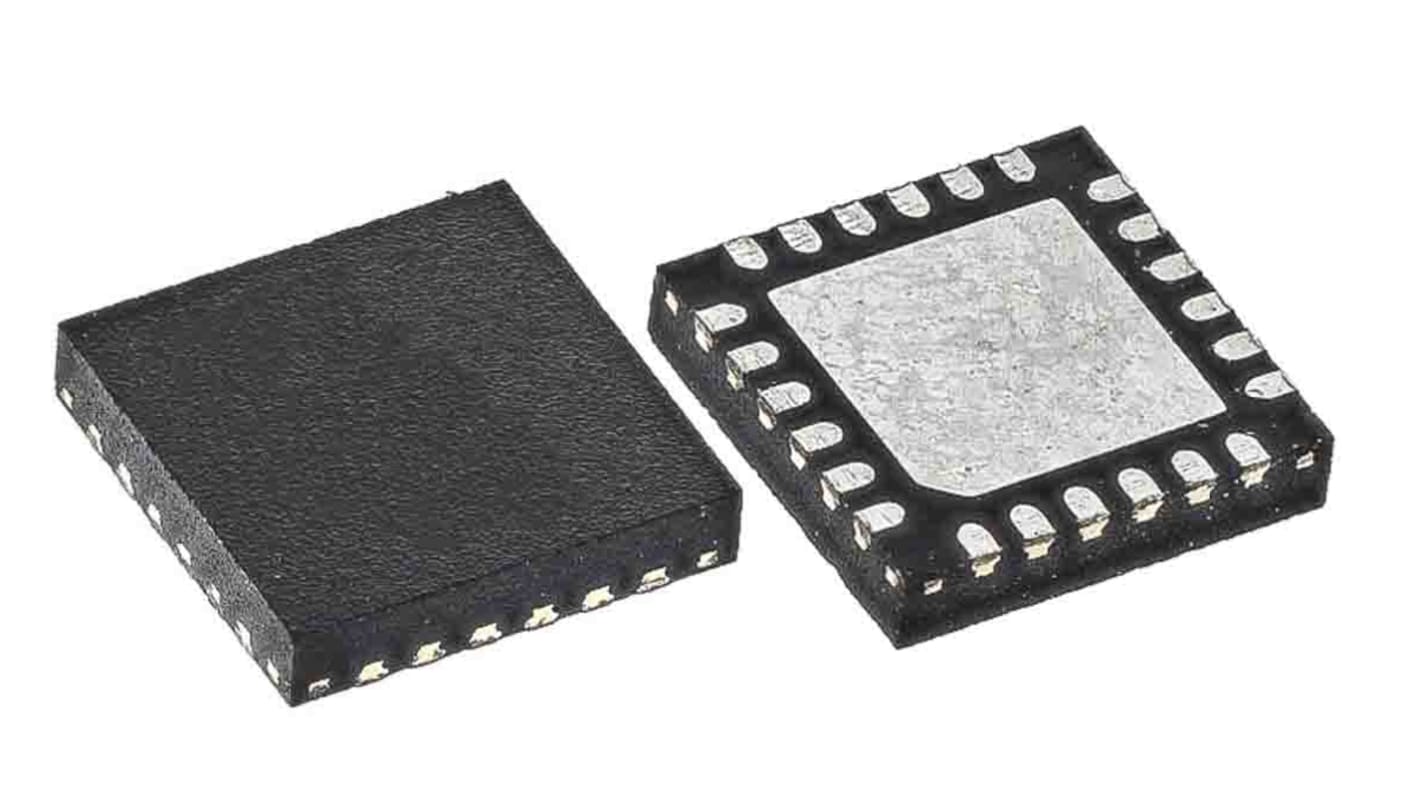

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (10 units, in packs of 10)*
SGD28.31
(exc. GST)
SGD30.86
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 20 | SGD2.831 | SGD28.31 |
| 30 - 40 | SGD2.724 | SGD27.24 |
| 50 + | SGD2.553 | SGD25.53 |
*price indicative
- RS Stock No.:
- 189-2079
- Mfr. Part No.:
- TS472IQT
- Manufacturer:
- STMicroelectronics
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Amplifier Type | Audio | |
| Product Type | Audio Amplifier | |
| Application | Speaker | |
| Mount Type | Surface | |
| Amplifier Class | Class A-B | |
| Number of Channels | 1 | |
| Package Type | QFN | |
| Pin Count | 24 | |
| Minimum Operating Temperature | -40°C | |
| Series | TS472 | |
| Width | 4mm | |
| Standards/Approvals | No | |
| Height | 0.95mm | |
| Length | 4mm | |
| Minimum Supply Voltage | 2.2V | |
| Maximum Supply Voltage | 5.5V | |
| Maximum Operating Temperature | 85°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Amplifier Type Audio | ||
Product Type Audio Amplifier | ||
Application Speaker | ||
Mount Type Surface | ||
Amplifier Class Class A-B | ||
Number of Channels 1 | ||
Package Type QFN | ||
Pin Count 24 | ||
Minimum Operating Temperature -40°C | ||
Series TS472 | ||
Width 4mm | ||
Standards/Approvals No | ||
Height 0.95mm | ||
Length 4mm | ||
Minimum Supply Voltage 2.2V | ||
Maximum Supply Voltage 5.5V | ||
Maximum Operating Temperature 85°C | ||
Automotive Standard No | ||
Available in flip-chip lead-free package and in QFN24 4 x 4 mm package
Low noise 2.0 V microphone bias output
ESD protection (2 kV)
40 kHz bandwidth regardless of the gain
Low distortion: 0.1% typ.
Low noise: 10 nV/√Hz typ. equivalent input noise at F = 1 kHz
2.2 to 5.5 V single supply operation
Fully-differential input/output
Fast start up time at 0 dB: 5 ms typ.
Active low standby mode function (1 μA max)
Low power consumption at 20 dB: 1.8 mA
