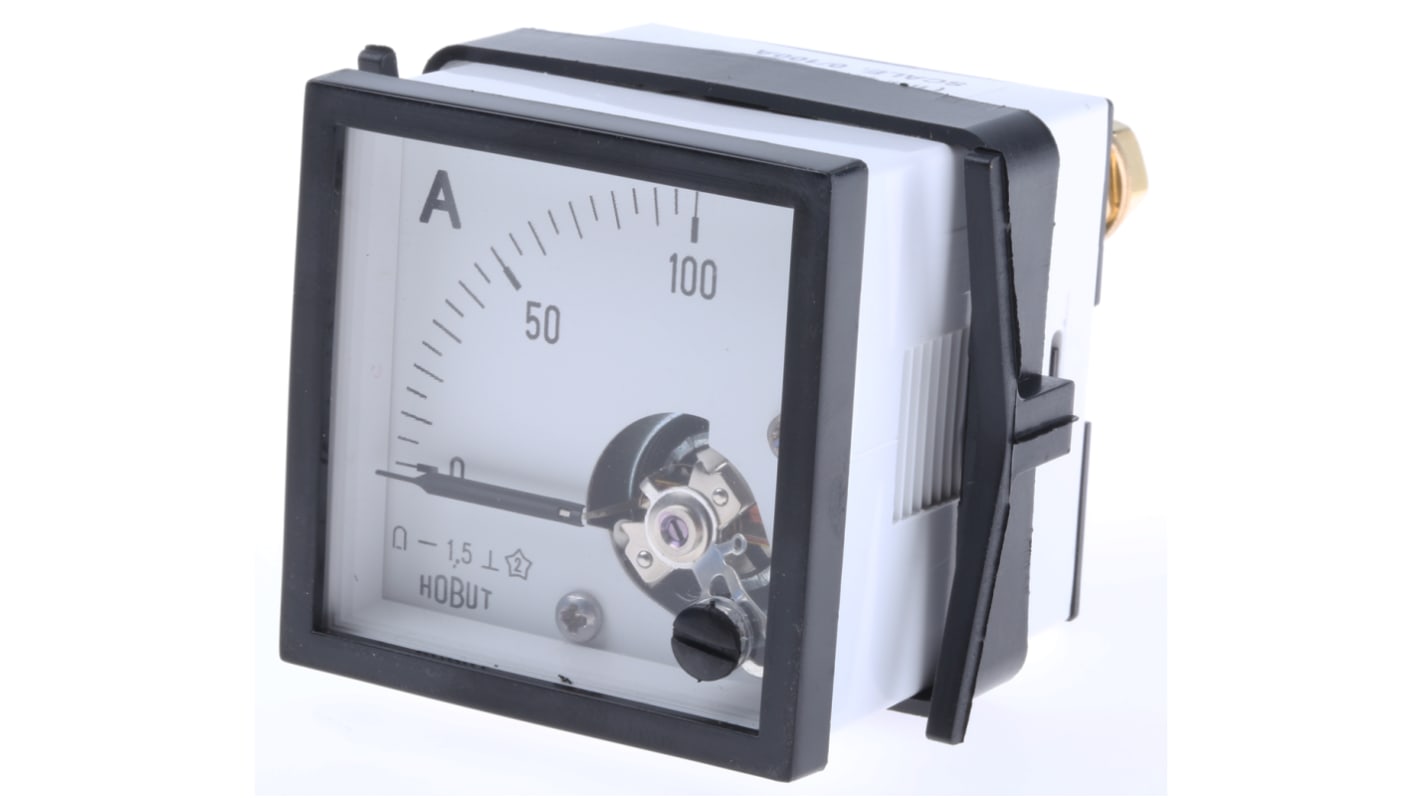

HOBUT D48MC Analogue Panel Ammeter 0/100A For Shunt 75mV DC, 48mm x 48mm Moving Coil

View all Ammeters
Bulk discount available

Subtotal (1 unit)*

SGD79.64

(exc. GST)

SGD86.81

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4SGD79.64
5 - 24SGD78.05
25 +SGD64.24

*price indicative

RS Stock No.:
313-520
Mfr. Part No.:
D481MCS75MV/4-001 0/100A
Manufacturer:
HOBUT
Find similar products by selecting one or more attributes.
Select all

Brand

HOBUT

Maximum Value

0/100A For Shunt 75mV

Current Type

DC

Moving Element

Moving Coil

Cutout Height

48mm

Cutout Width

48mm

Depth

43mm

Meter Accuracy

Class 1.5

Minimum Temperature

-25°C

Maximum Temperature

+40°C

Measurement Range

0/100A For Shunt 75mV

Series

D48MC

COO (Country of Origin):
GB

DC Voltage and Current Meters


90° scale arc
Accuracy class 1.5; BS89 and IEC51
Flame retardant case to UL94V0
Fitted with mounting brackets
Operating temperature range -25 → +40°C
Terminal covers available separately
48x48mm ammeters have integral scales; appropriate scales must be chosen and ordered separately for the 72x72 & 96x96mm ammeters

Note

All ammeters are shunt operated and an appropriate 75mV shunt (no. 257-307 typically) must be ordered separately for each meter; the meters cannot be used without them
