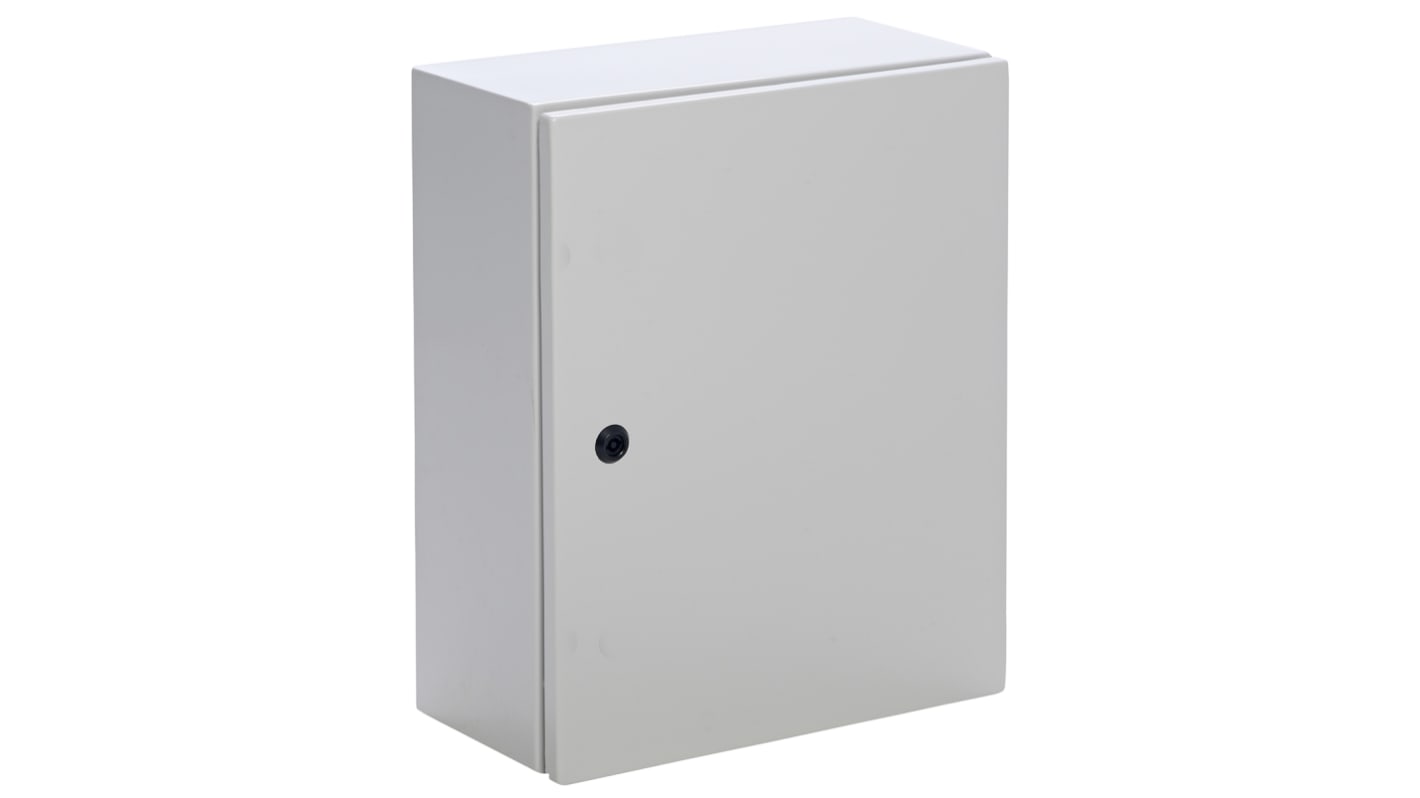

Contactum Galvanised Steel Wall Box, IP66, 150mm x 500 mm x 400 mm

  • RS Stock No. 183-3500
  • Mfr. Part No. 47-SB504015D
  • Manufacturer Contactum
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): AE
Product Details

Galvanised steel
Powder coated – RAL 7032
Injected polyurethane gasket
Bottom gland plate
Ingress protection
Mechanical impact protection
C/W mounting plate – galvanised steel
Fitted earth strip
Material thickness 1.2mm - 1.5mm
Corrosion Resistance
Earthing studs are provided on both the enclosure and the door
CNC machine formed polyurethane gasket for reliable sealing
Corner formed door ensures better weatherproofing
Easily removable hinges, ideal for changing the door opening direction (for certain sizes)
Special profiled lip for better waterproofing
Lock features:
Quarter turn cylindrical lock
Durable metal lock and keys
Key engaged when the lock is open


Mounting Plate Supplied as Standard

Attribute Value
External Height 500 mm
External Width 400 mm
External Depth 150mm
Body Material Galvanised Steel
IP Rating IP66
Gland Plate Yes
Colour Grey
RAL Code RAL 7032
External Mounting Type Bracket
Standards Met IEC 60529, IEC 62208, IEC 62262
3 In stock for delivery within 4 working days
Price Each
SGD 140.59
(exc. GST)
SGD 150.43
(inc. GST)
Per unit
1 +
